Sectional View

< F5M42 >

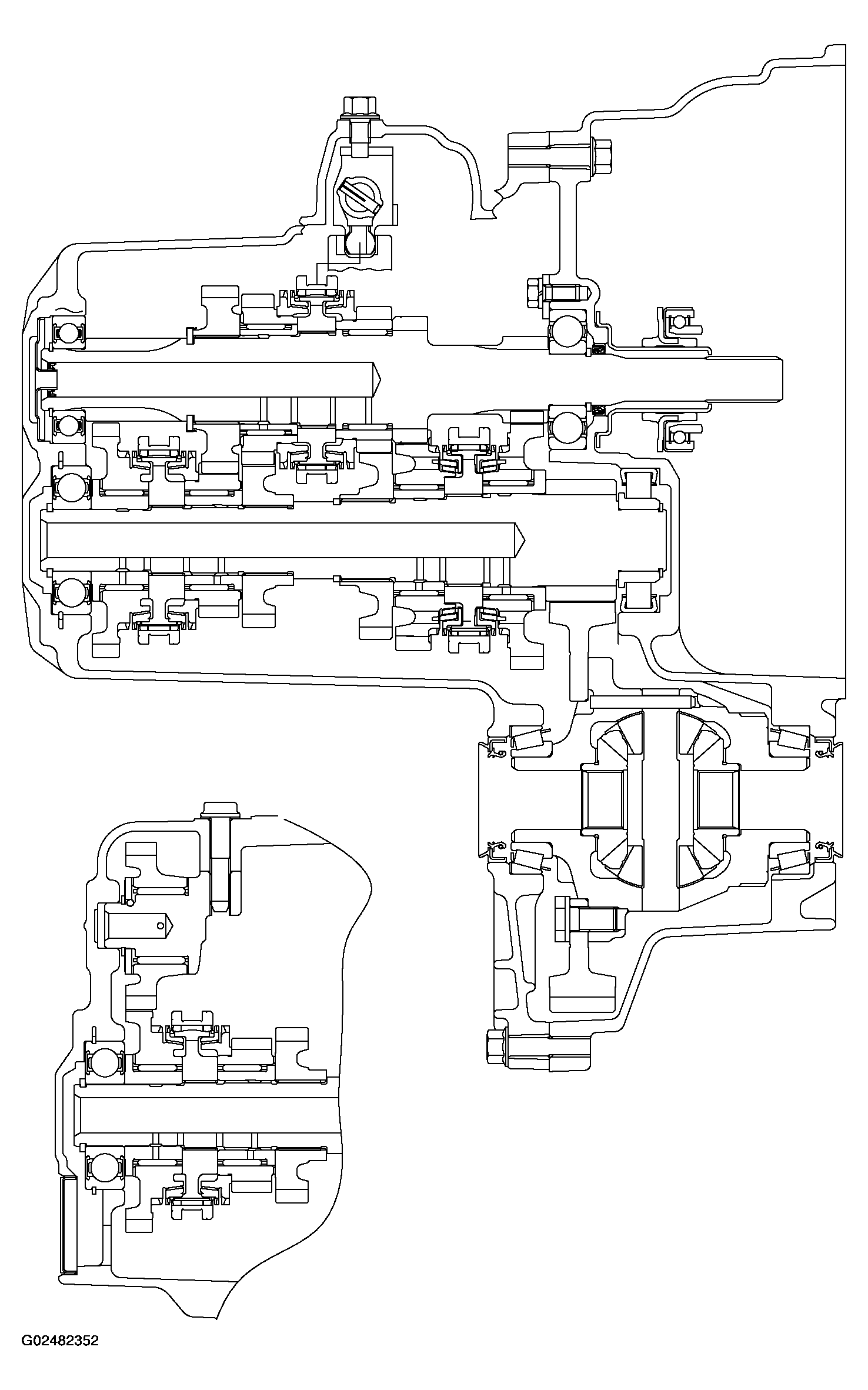

Fig 1: Sectional View Of F5M42
G02482352Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< W5M42 >

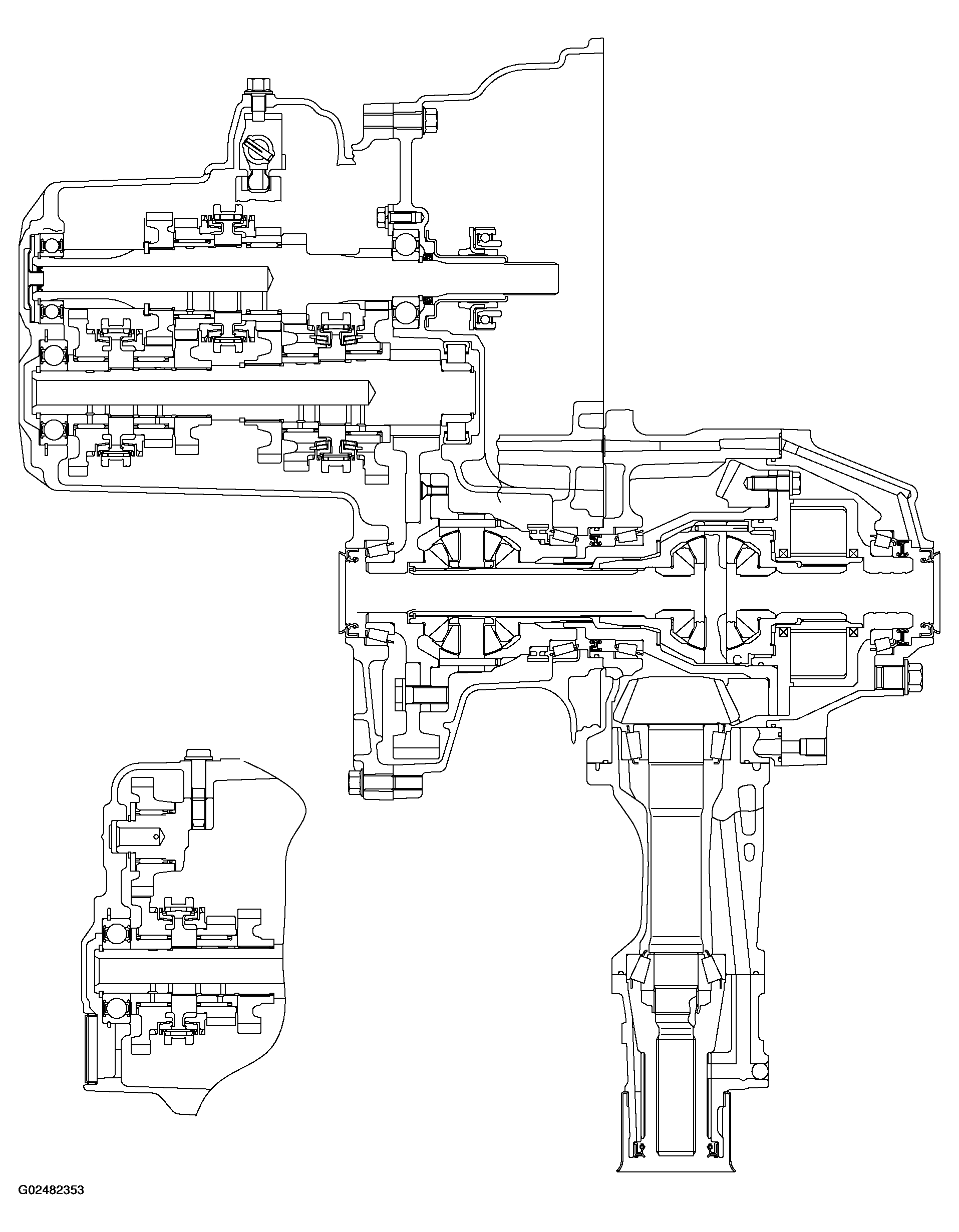

Fig 2: Sectional View Of W5M42
G02482353Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
