Disassembly And Assembly: Notes

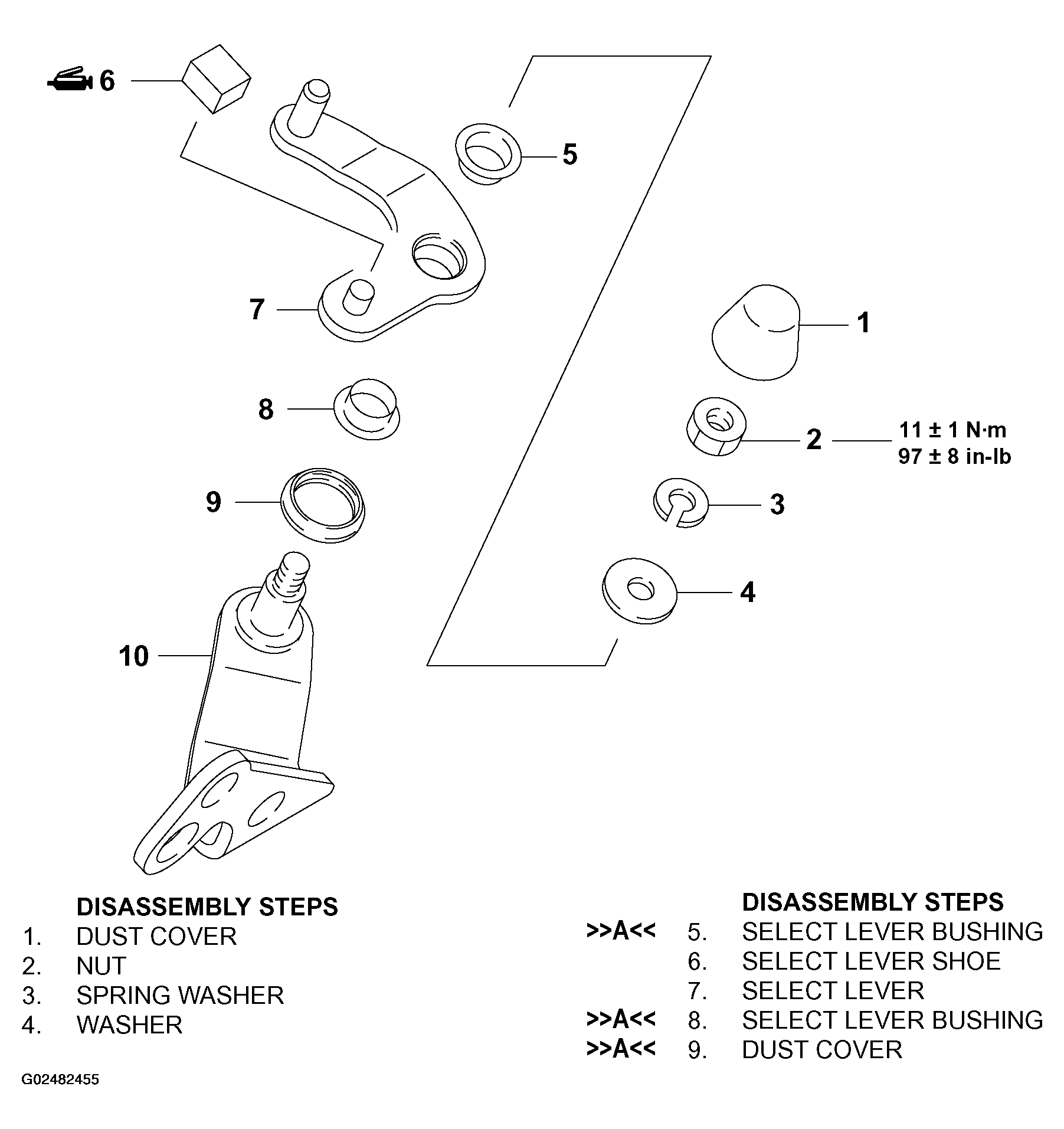

Fig 1: Disassembling/Assembling Select Lever

G02482455

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
