Disassembly And Assembly: Notes

< F5M42 >

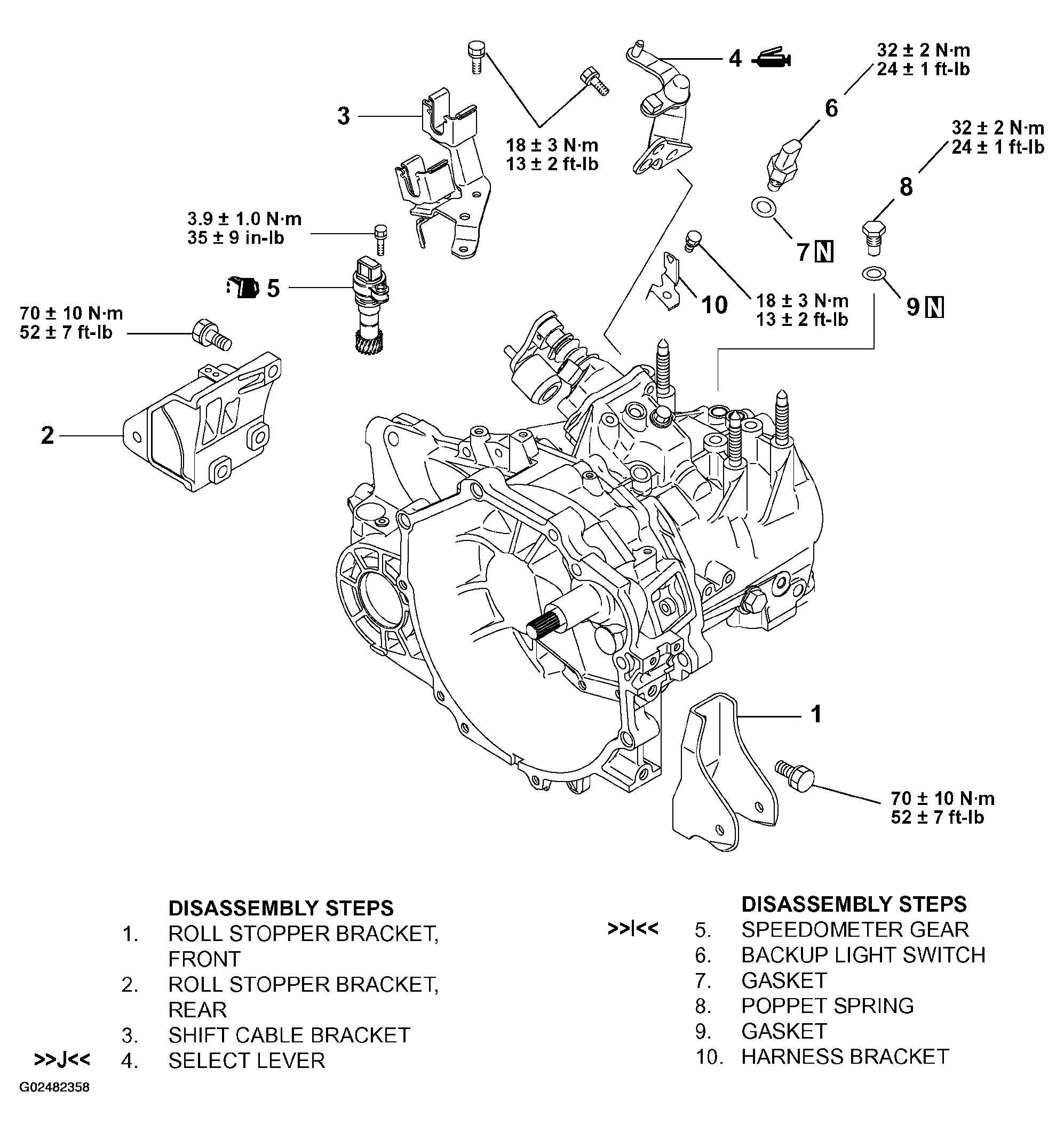

Fig 1: Disassembling & Assembling Of Transaxle F5M42 (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

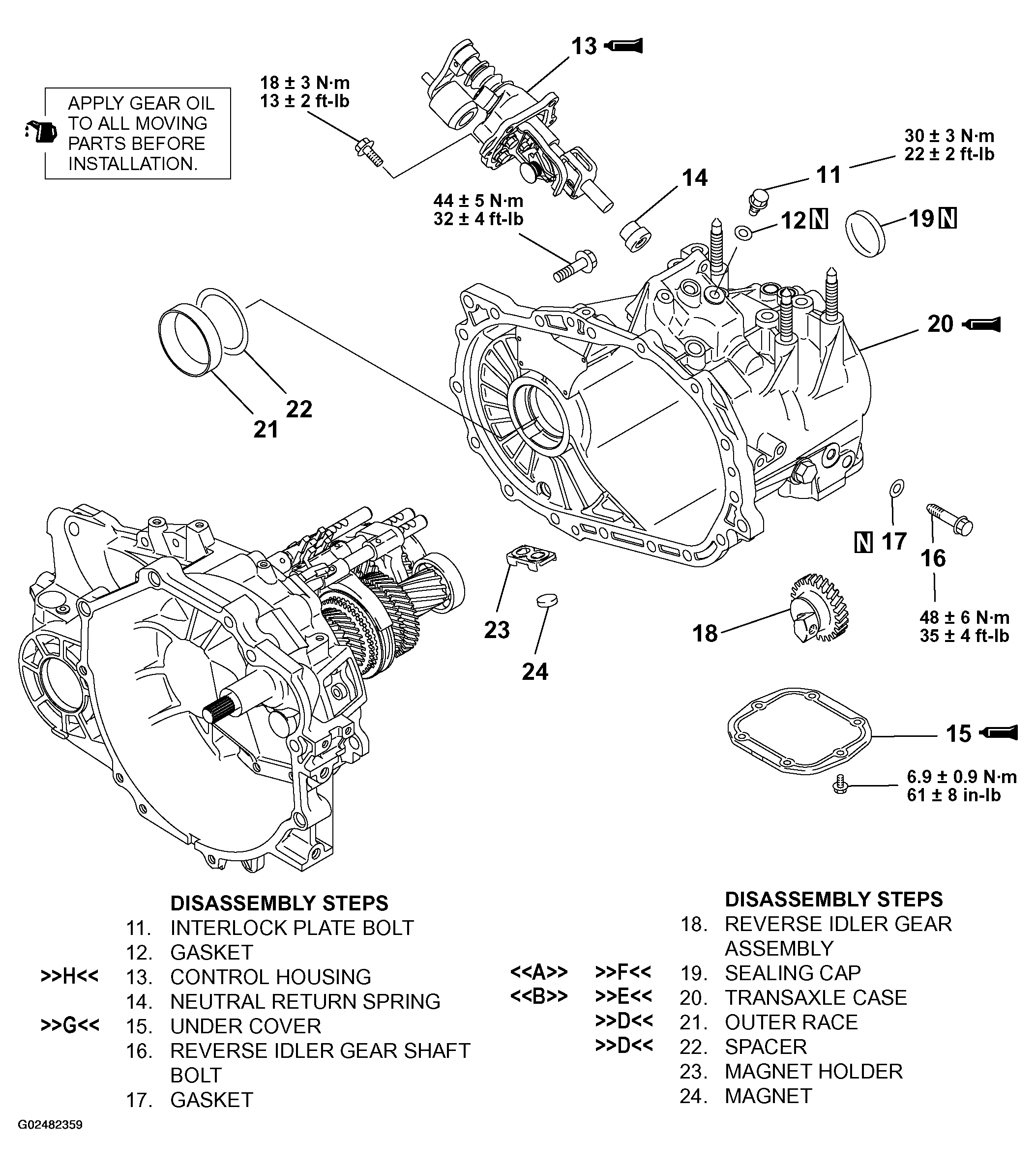

Fig 2: Disassembling & Assembling Of Transaxle F5M42 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Fig 3: Disassembling & Assembling Of Transaxle F5M42 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< W5M42 >

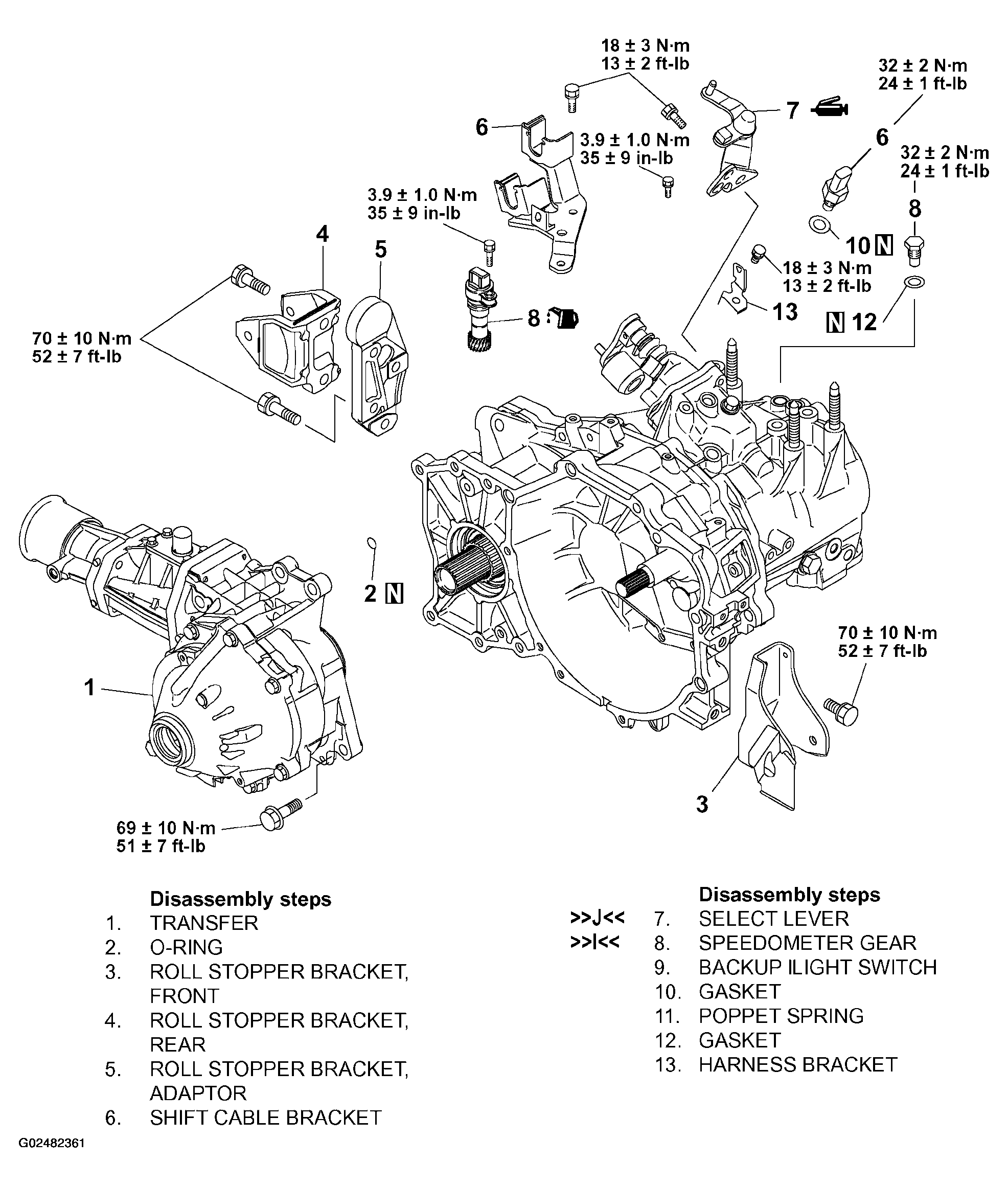

Fig 4: Disassembling & Assembling Of Transaxle W5M42 (1 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

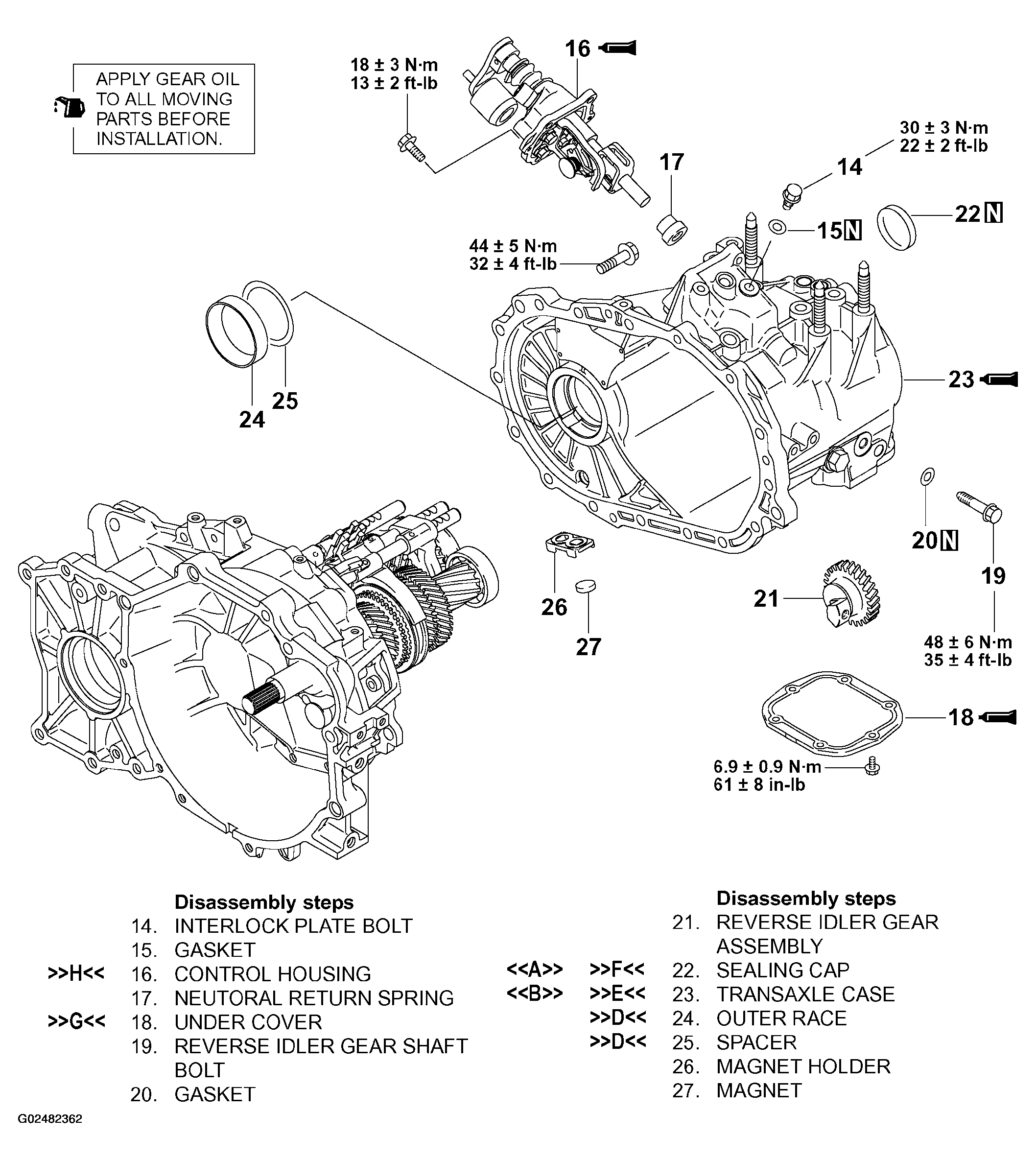

Fig 5: Disassembling & Assembling Of Transaxle W5M42 (2 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

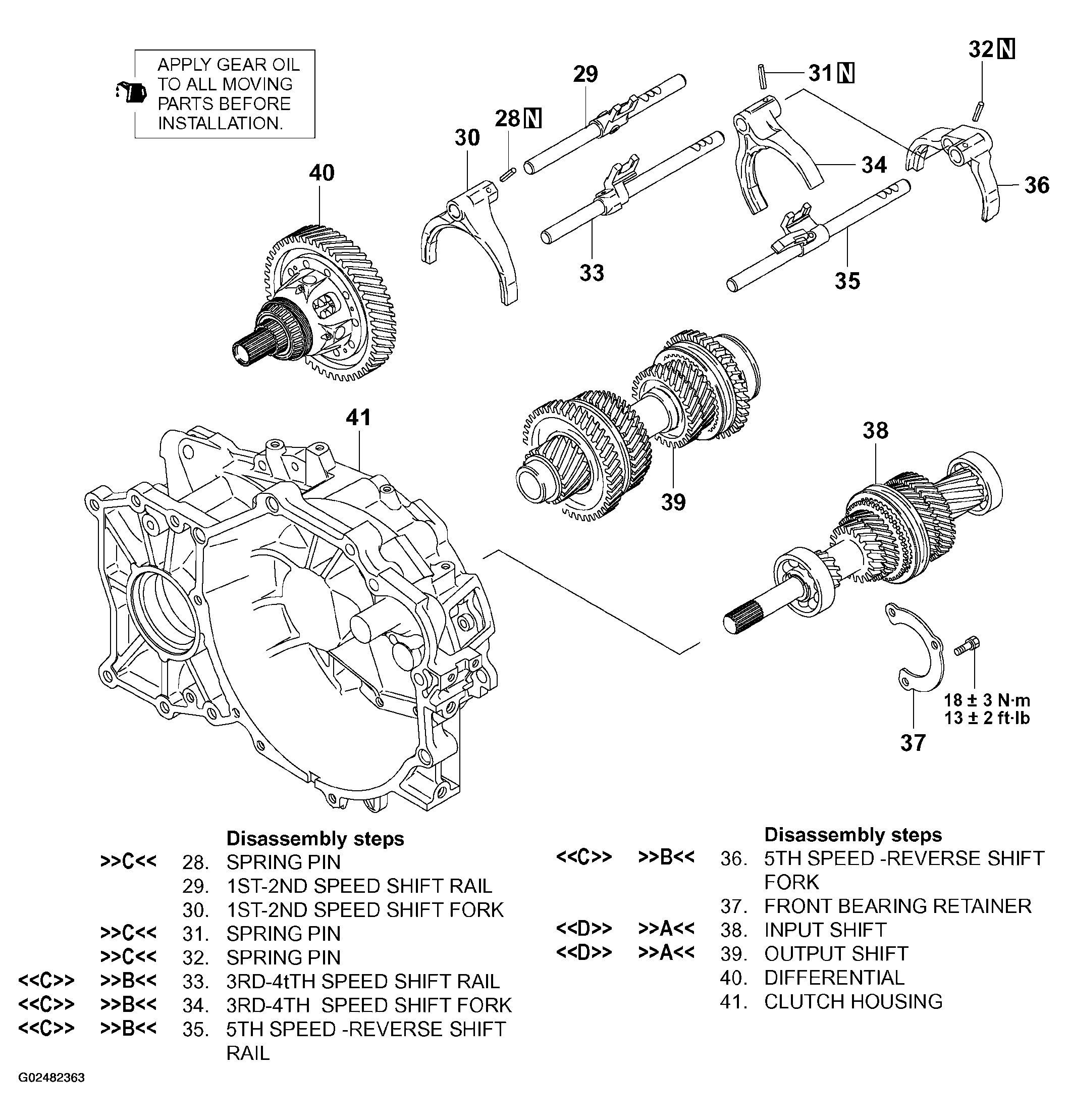

Fig 6: Disassembling & Assembling Of Transaxle W5M42 (3 Of 3)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:
