Liftgate Latch Check

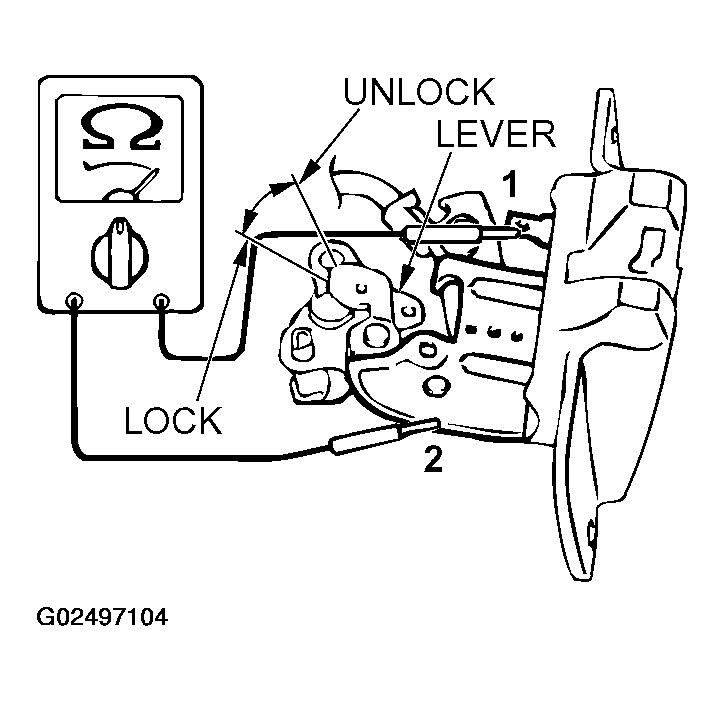

Fig 1: Checking Liftgate Latch

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

TESTER CONNECTION SPECIFIED CONDITION

LEVER POSITION	TESTER CONNECTION	SPECIFIED CONDITION
At the "LOCK" position	1 - 2(Ground)	Open circuit
At the "UNLOCK" position	1 - 2(Ground)	Less than 2 ohms
