Auto Cruse Control Switch Connector End View
Auto Cruse Control Switch Connector End View

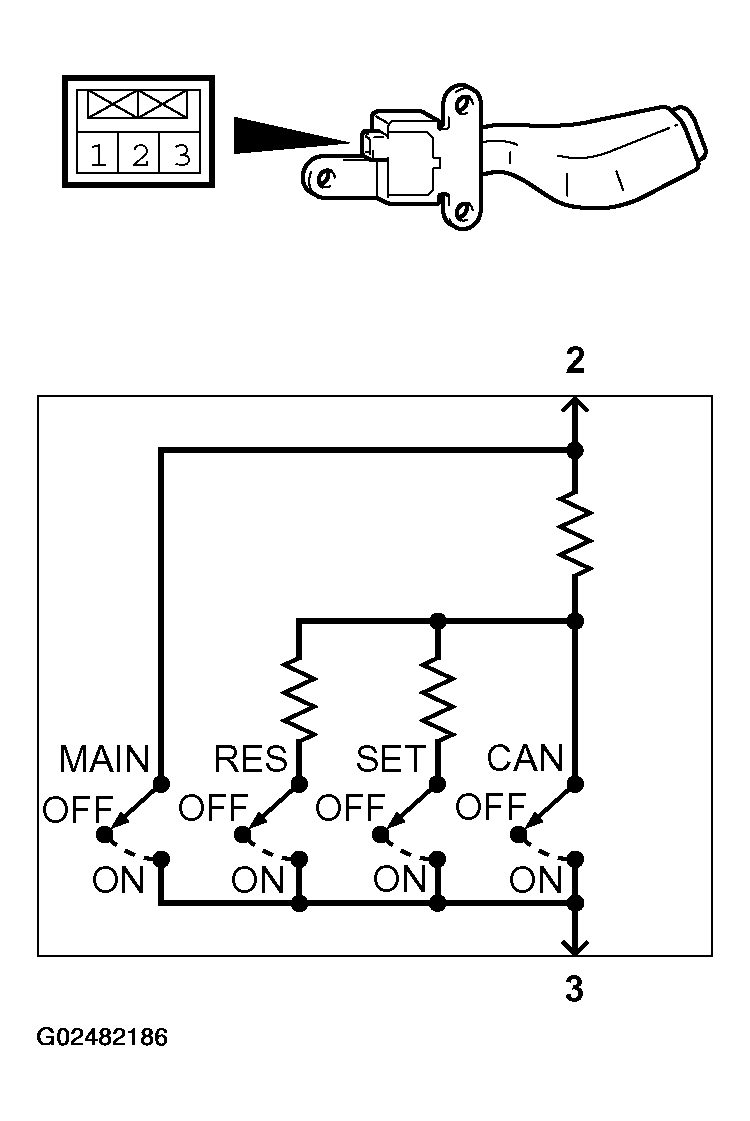

Fig 1: Auto Cruse Control Switch Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
