Emission Control: Diagnosis

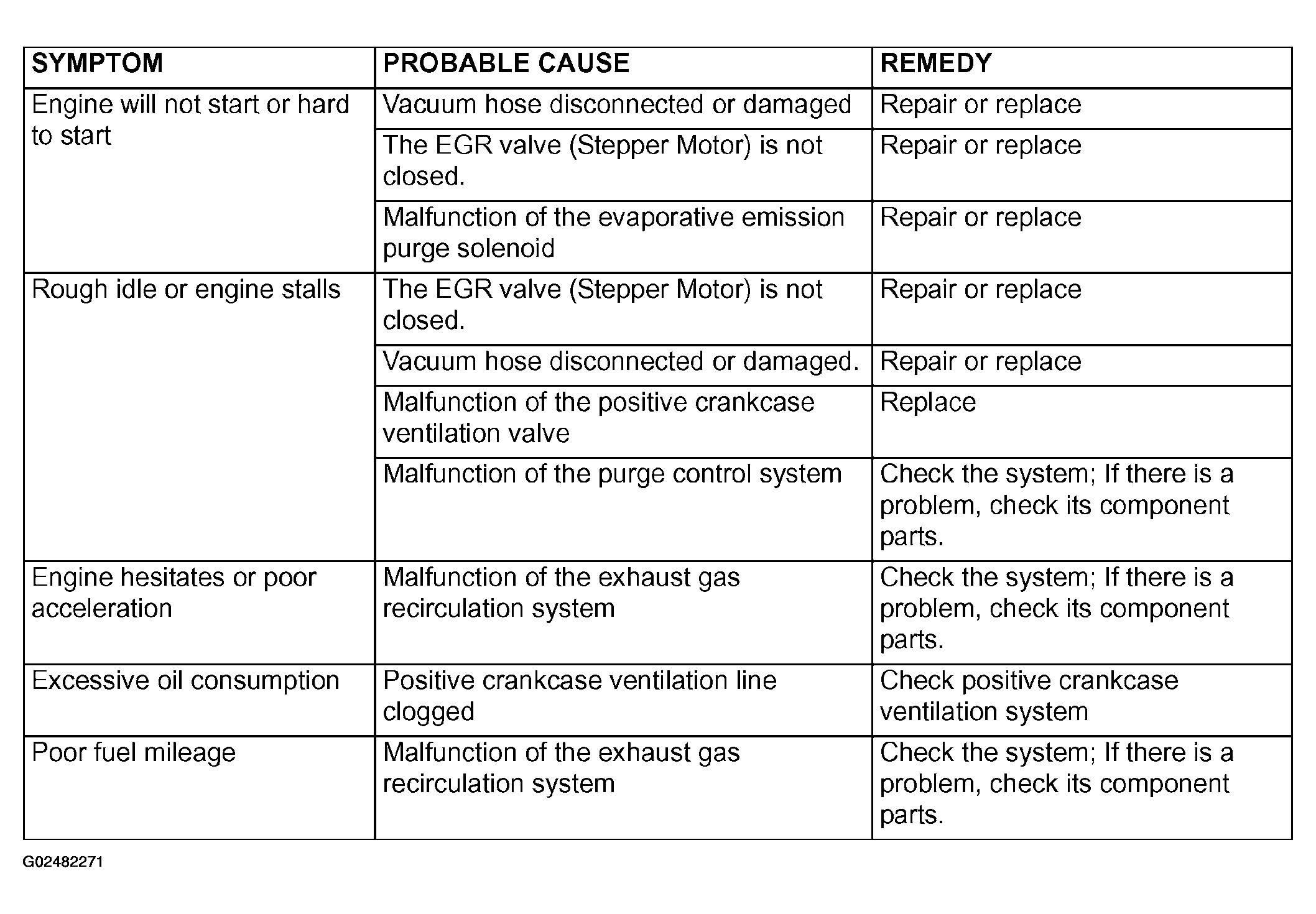

Fig 1: Engine Diagnosis Chart

G02482271

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
