Disassembly And Assembly: Notes

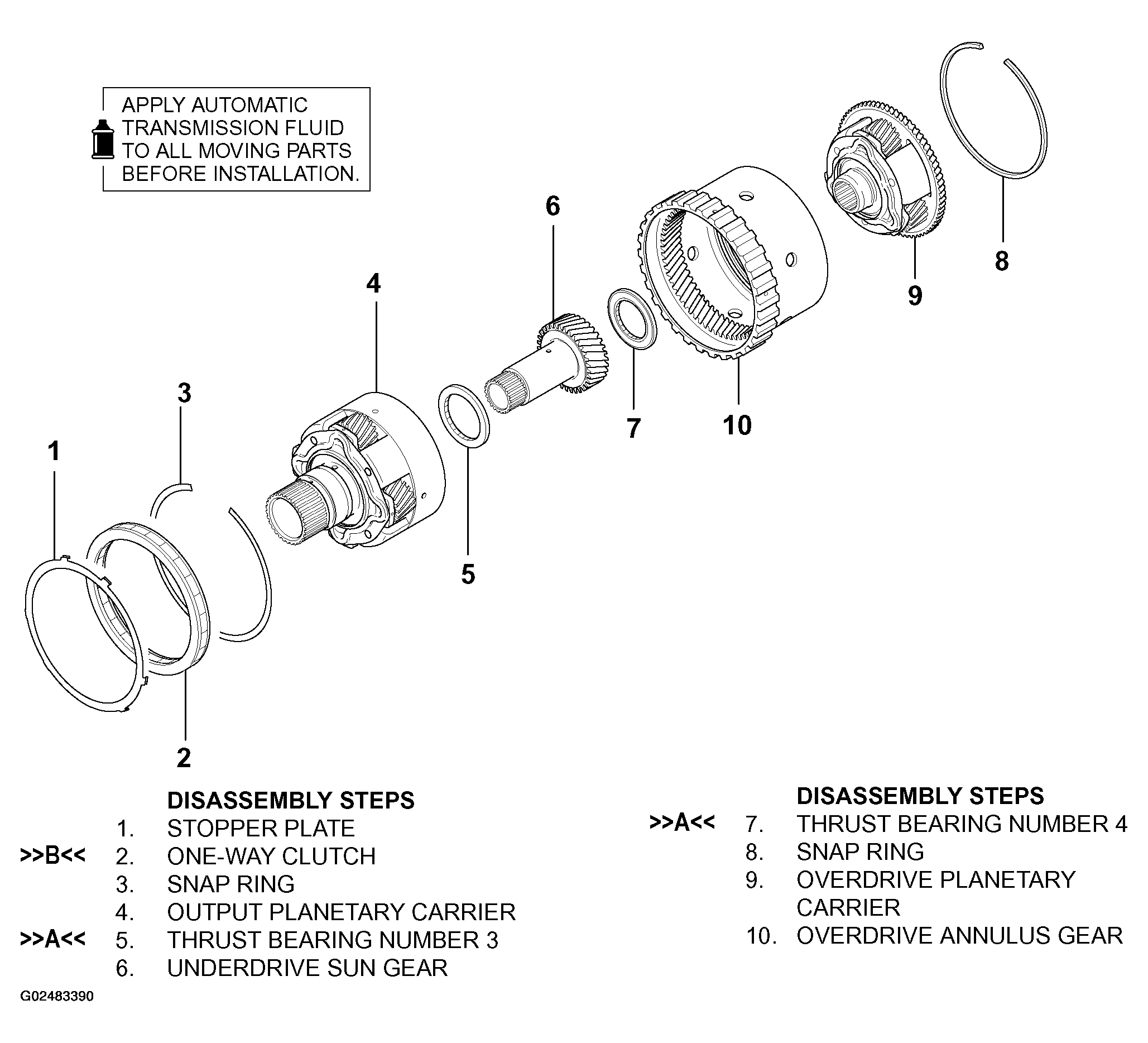

Fig 1: Disassembling/Assembling Planetary Gear
G02483390Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
