Disassembly And Assembly: Notes

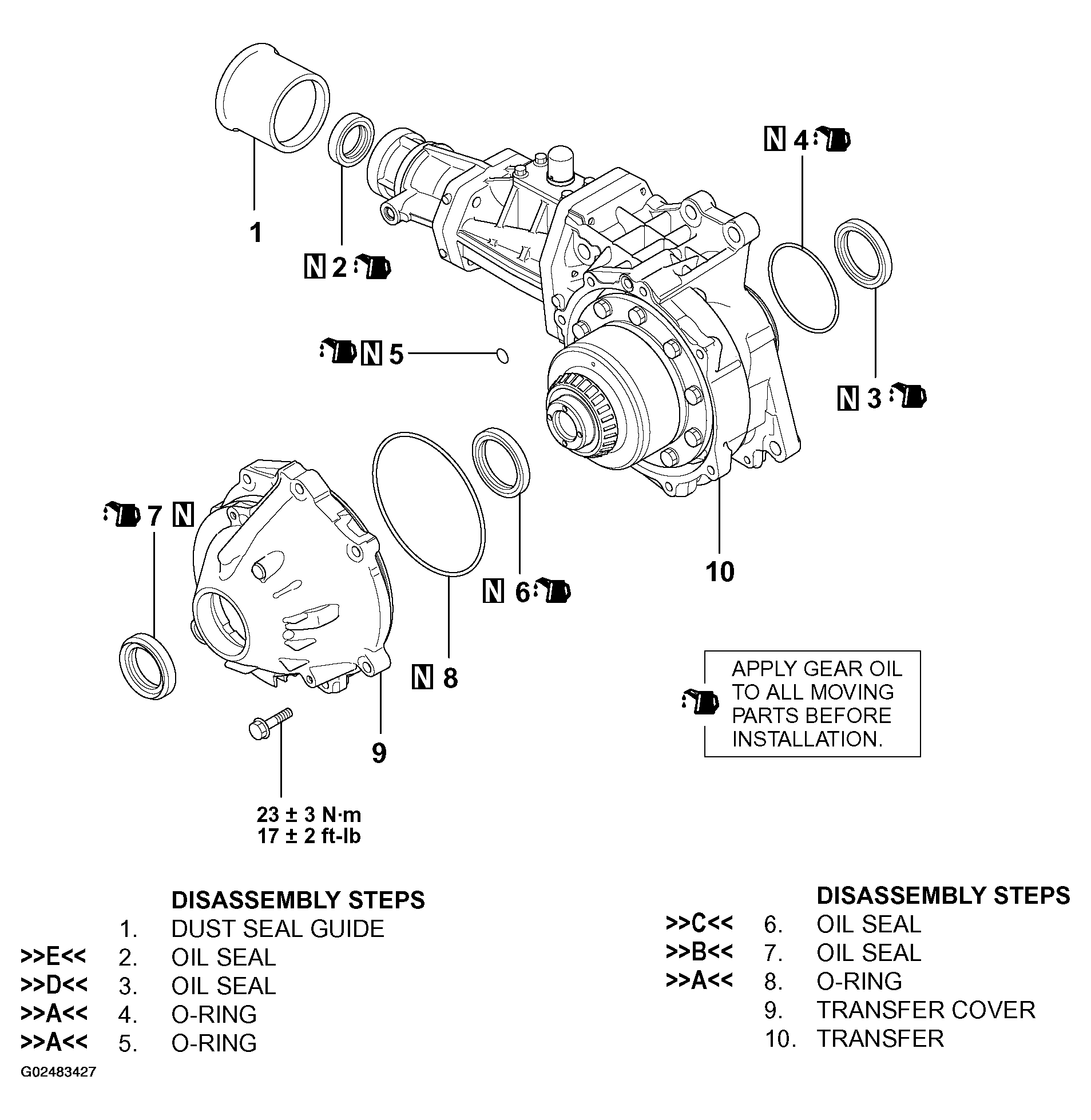

Fig 1: Disassembling/Assembling Transfer

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

Required Special Tools:

• MD998800: Oil Seal Installer
• MB990938: Handle
• MB990937: Installer Adapter
• MB990887: Ring
• MB990891: Bushing Remover Installer Base
• MB990936: Installer Adapter
