Cruise Control Systems
›
Auto-Cruise Control
›
Auto-Cruise Control System Diagnosis
›
Diagnostic Trouble Code Procedures
›
DTC 22: Stoplight Switch System
›
Notes
DTC 22: Stoplight Switch System: Notes

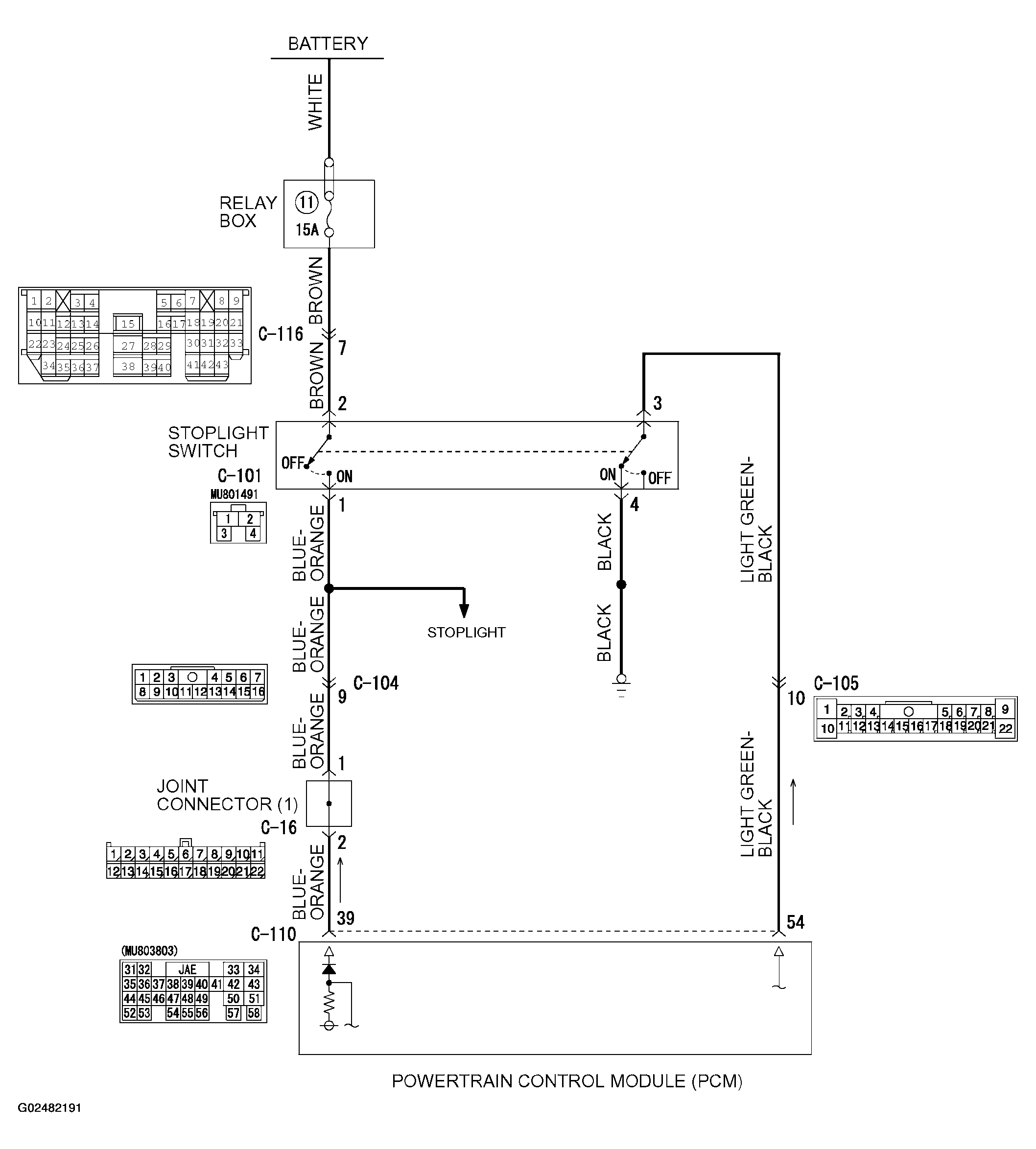

Fig 1: Stoplight Switch System Circuit Diagram (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

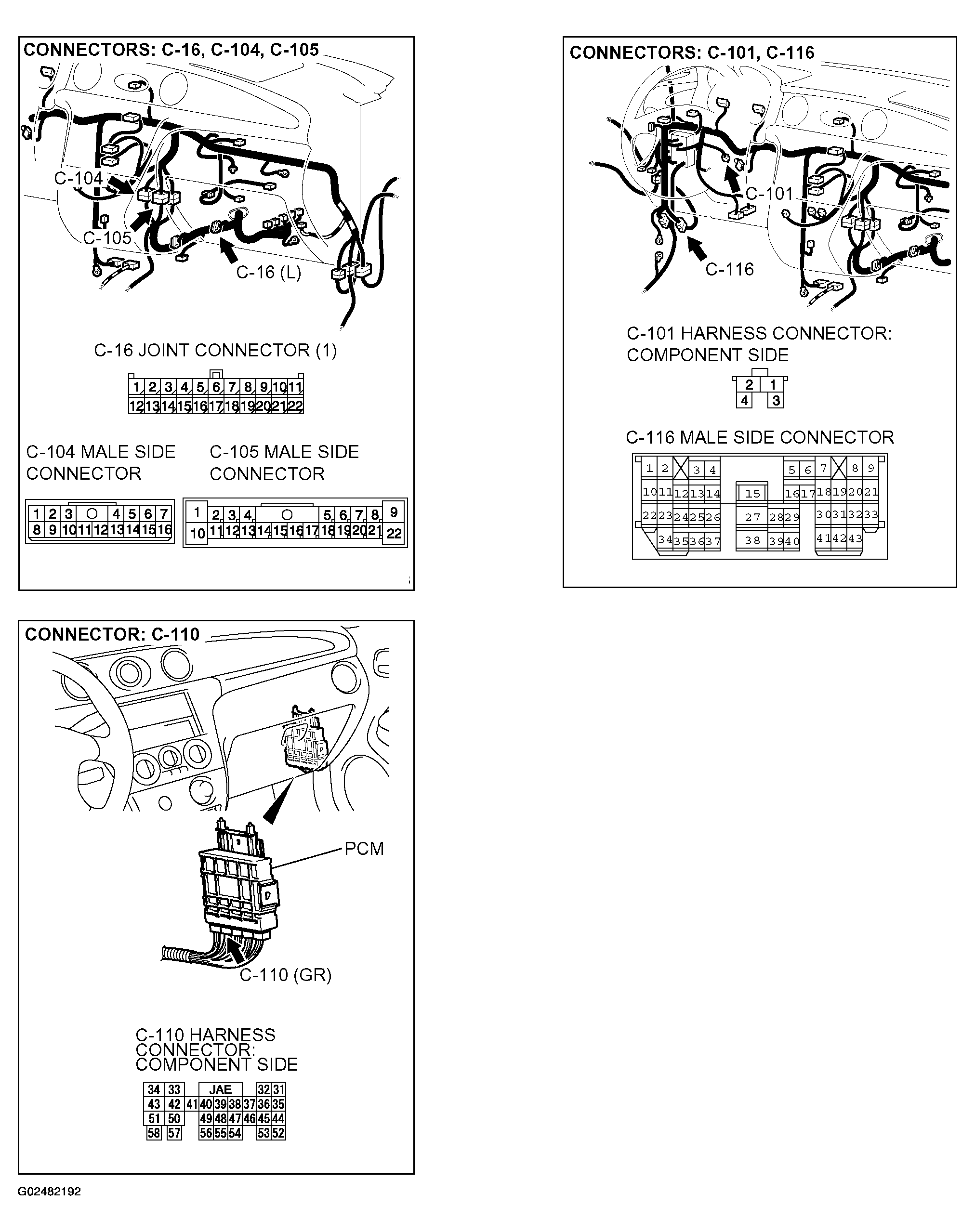

Fig 2: Stoplight Switch System Circuit Diagram (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
