Stoplight Switch
Stoplight Switch
Disconnect the connector.
Check for continuity between the terminals of the switch.
Fig 1: Disconnecting Stoplight Switch Connector
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

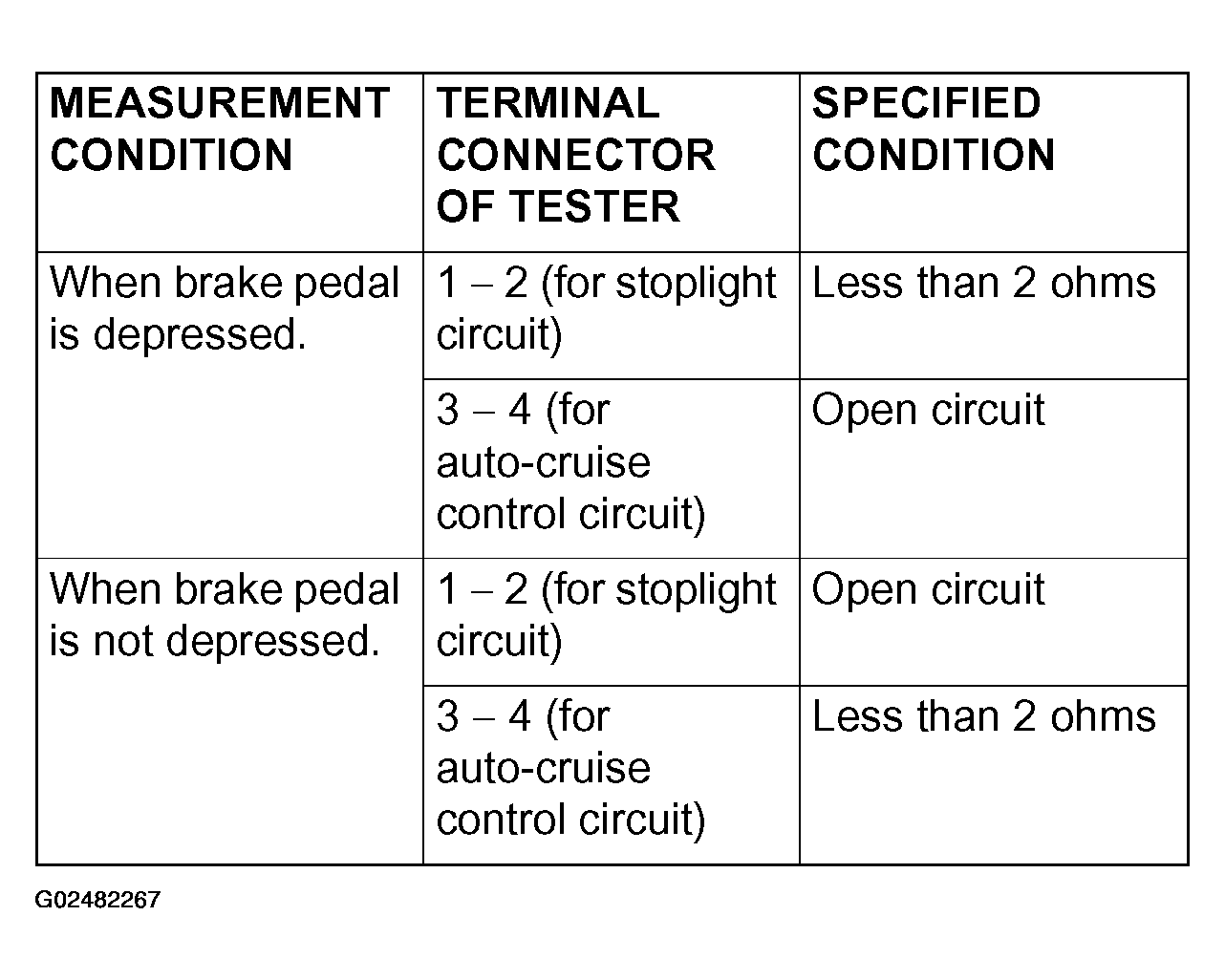

Fig 2: Stoplight Switch Continuity Table
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
