Disassembly And Assembly: Notes

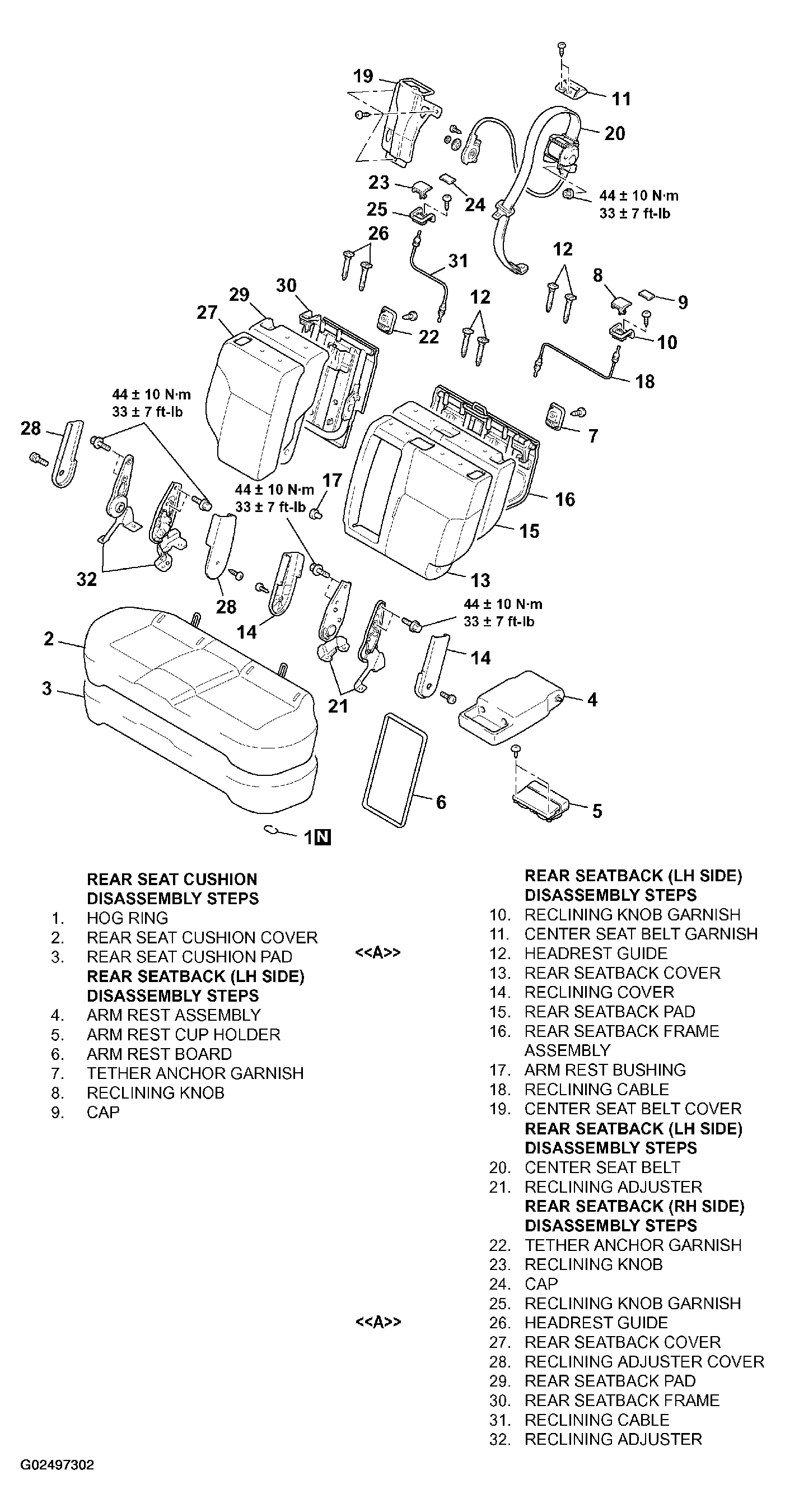

Fig 1: Identifying Rear Seat Assembly Components
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
