Power Window Relay Check

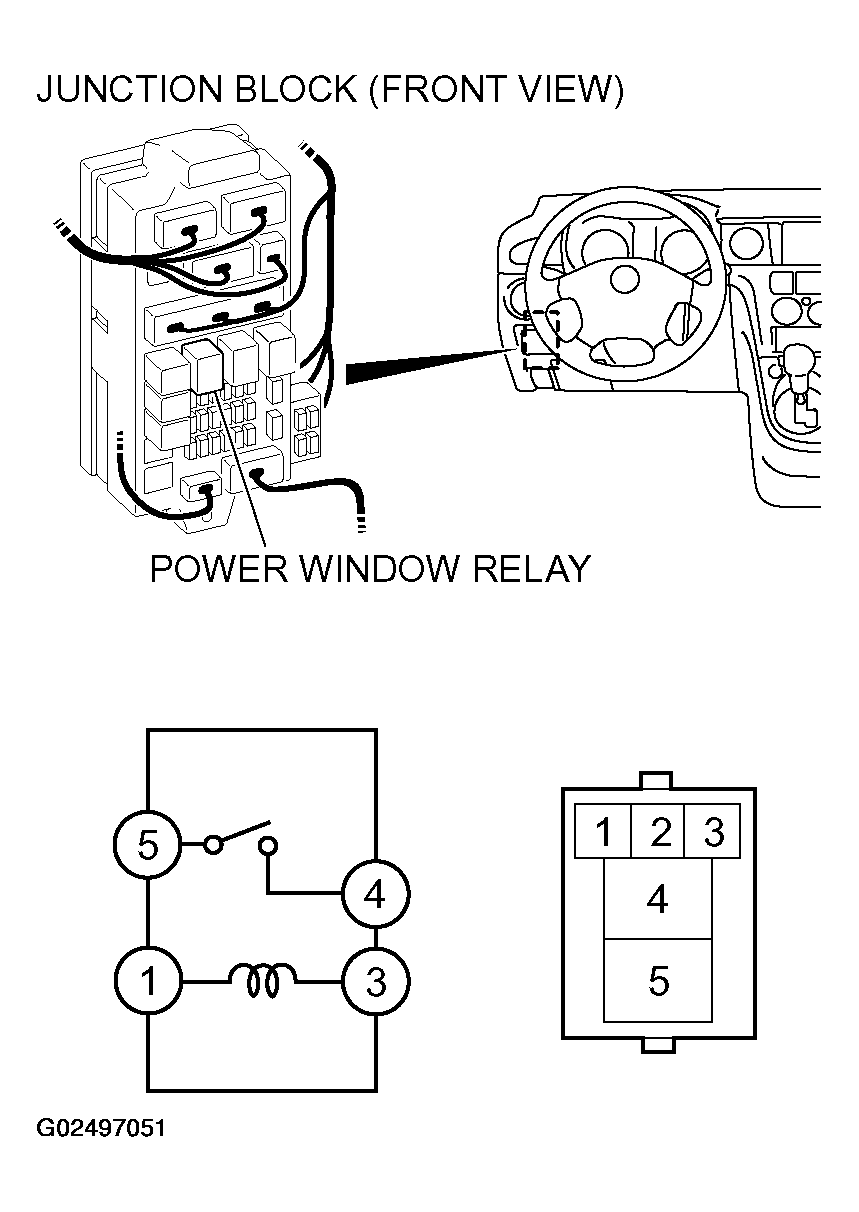

Fig 1: Checking Power Window Relay
G02497050Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Fig 2: Tester Connection Specified Condition Chart
G02497051Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
