Notes
Disassembly And Assembly: Notes

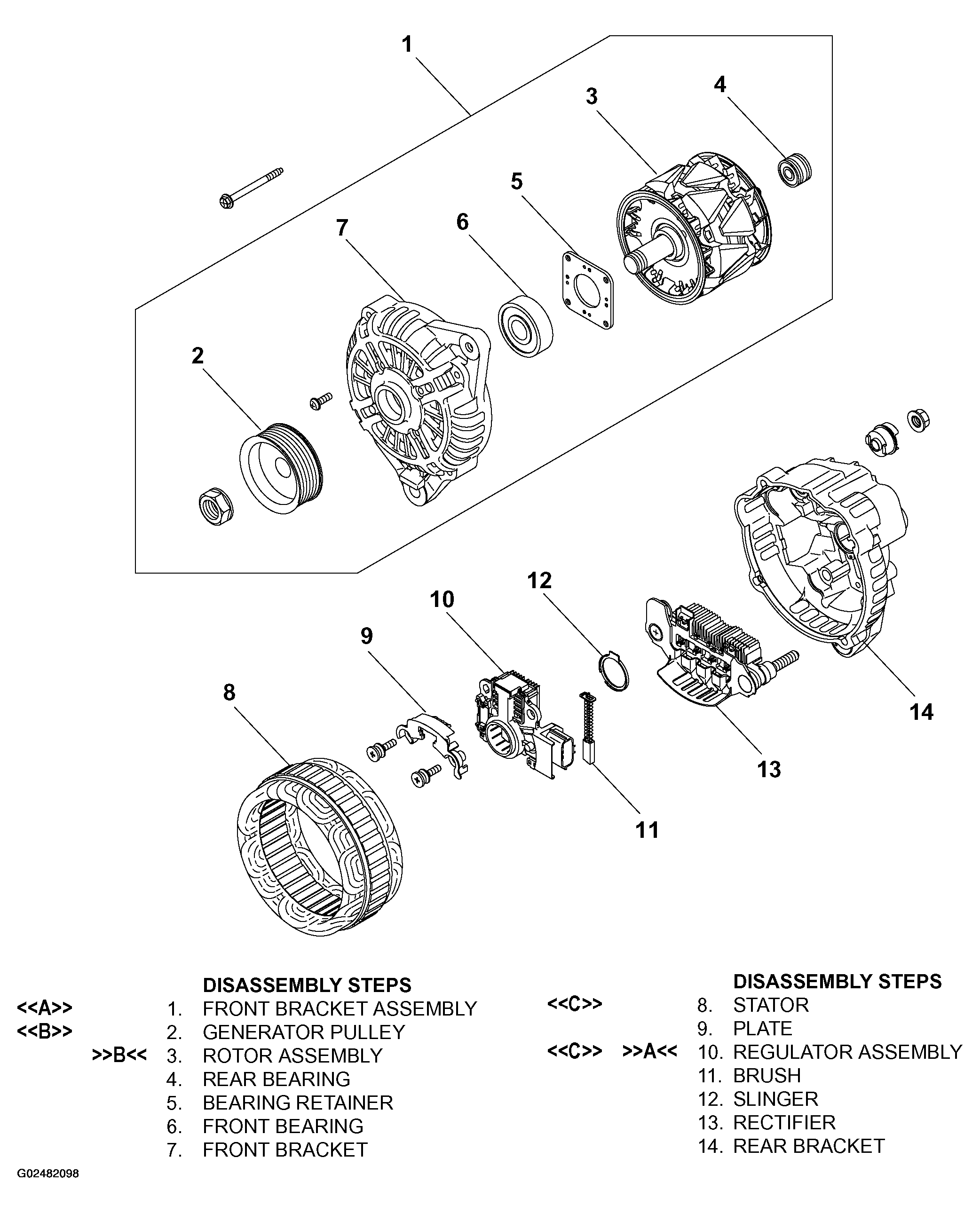

Fig 1: Identifying Generator Assembly Components (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
