Notes
Removal And Installation: Notes

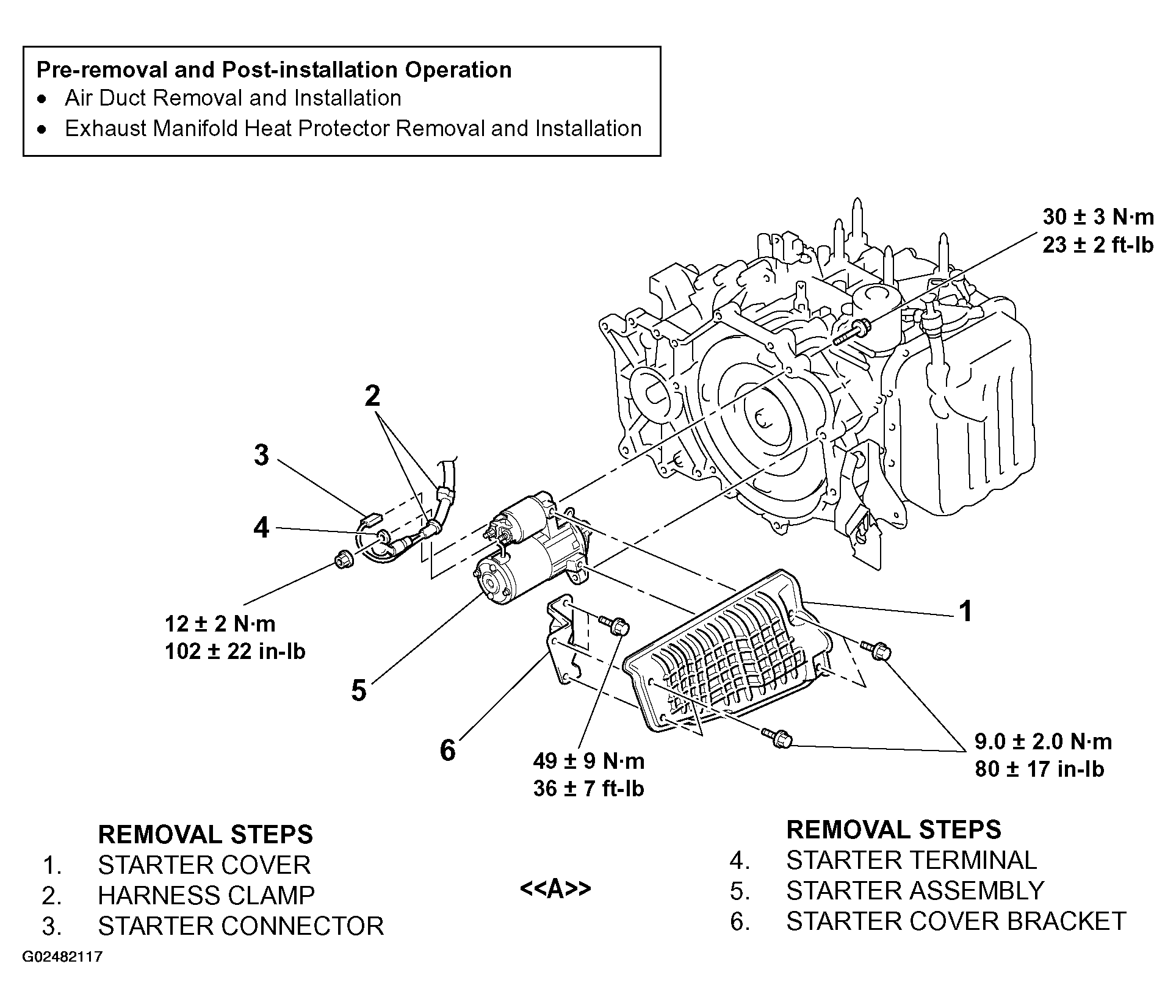

Fig 1: Removing / Installation Of Starter Motor Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
