Mitsubishi
›
2005
›
Outlander XLS, AWD
›
Repair and Diagnosis
›
Engine Performance
›
Tune-Up
›
Ignition System
›
Camshaft Position Sensor
›
Removal And Installation
Removal And Installation

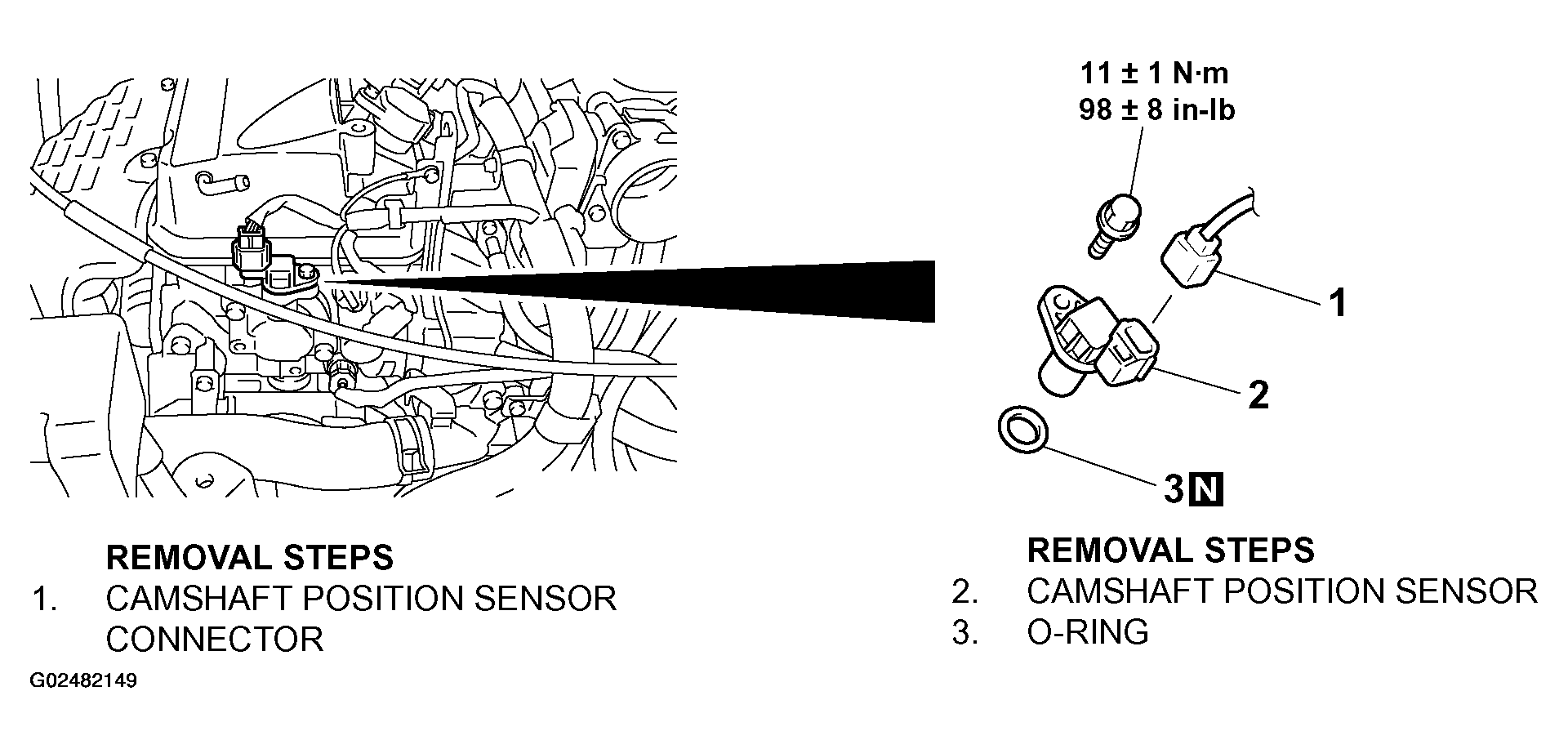

Fig 1: Removing And Installing Camshaft Position Sensor
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
