Disassembly And Assembly < Front >: Notes

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

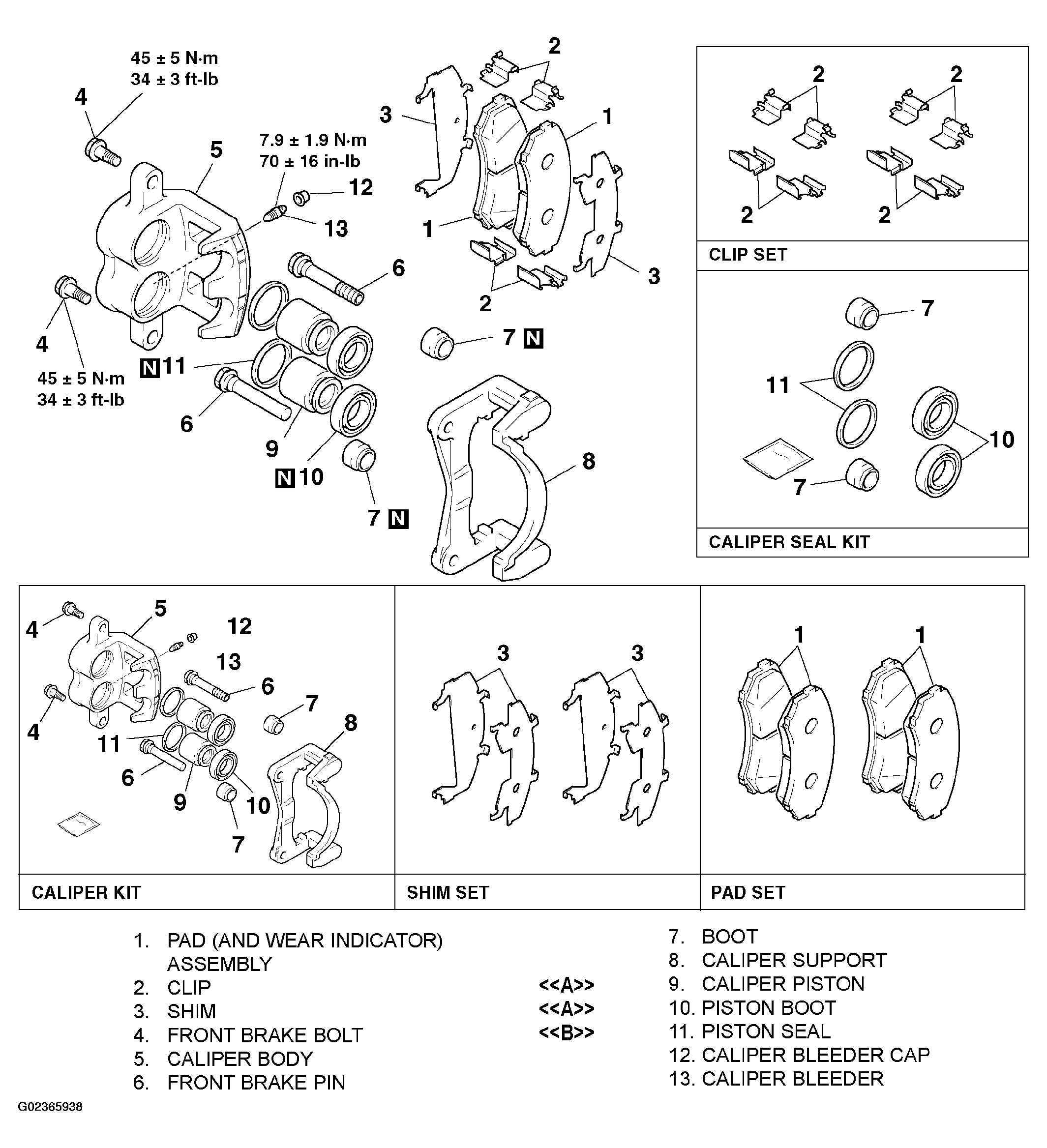

Fig 1: Disassembling/Assembling Brake Disc (Front)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
