Data List Reference Table

WARNING: This page is about a different car, the 2005 Mitsubishi Endeavor. However, it is still accessible from the selected car via links, so may be relevant.

The following items shown in the illustration can be read by the scan tool from the TCL/ASC-ECU input data.

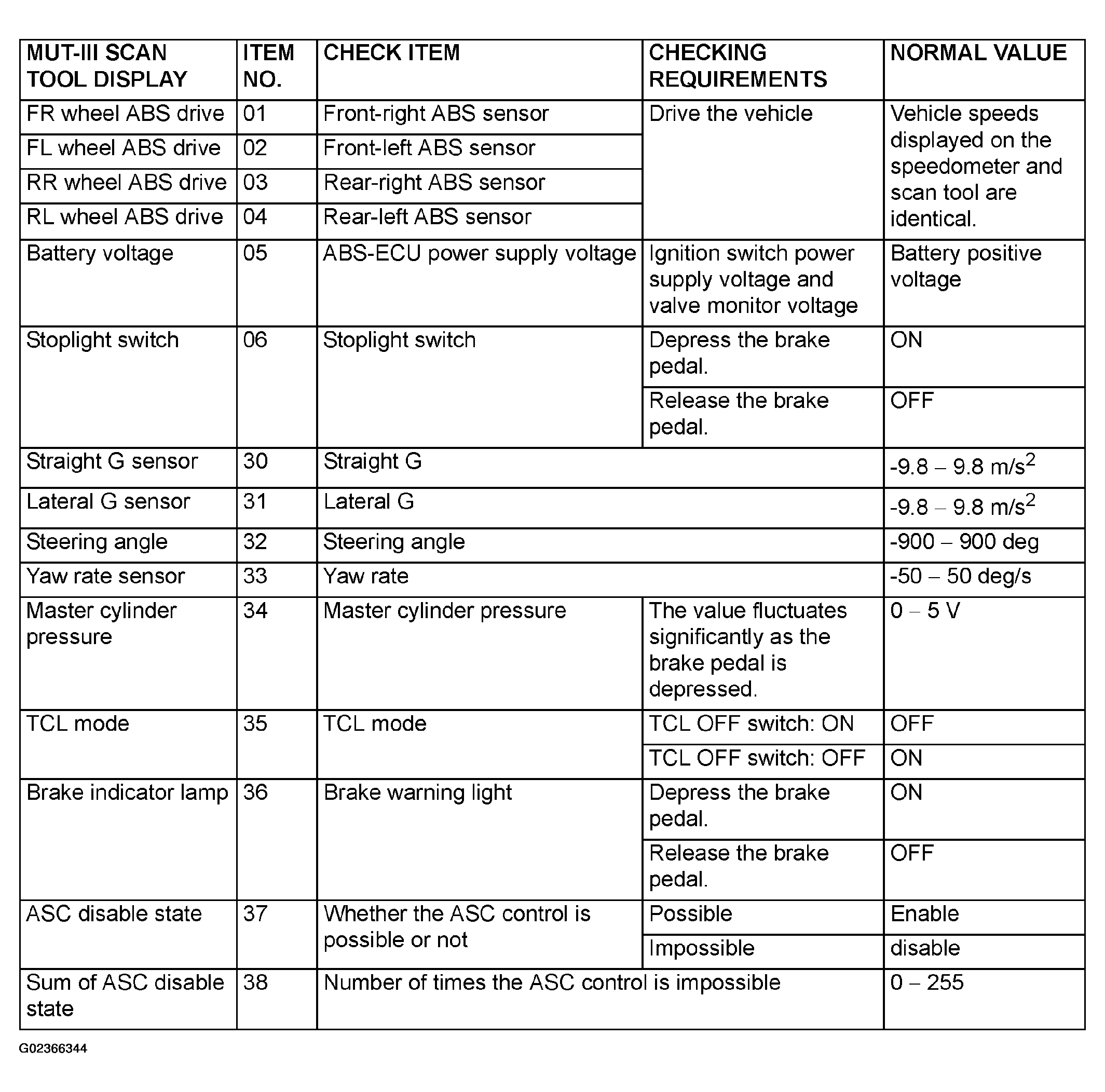

Fig 1: Data List Reference Table
G02366344Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
