Disassembly And Assembly

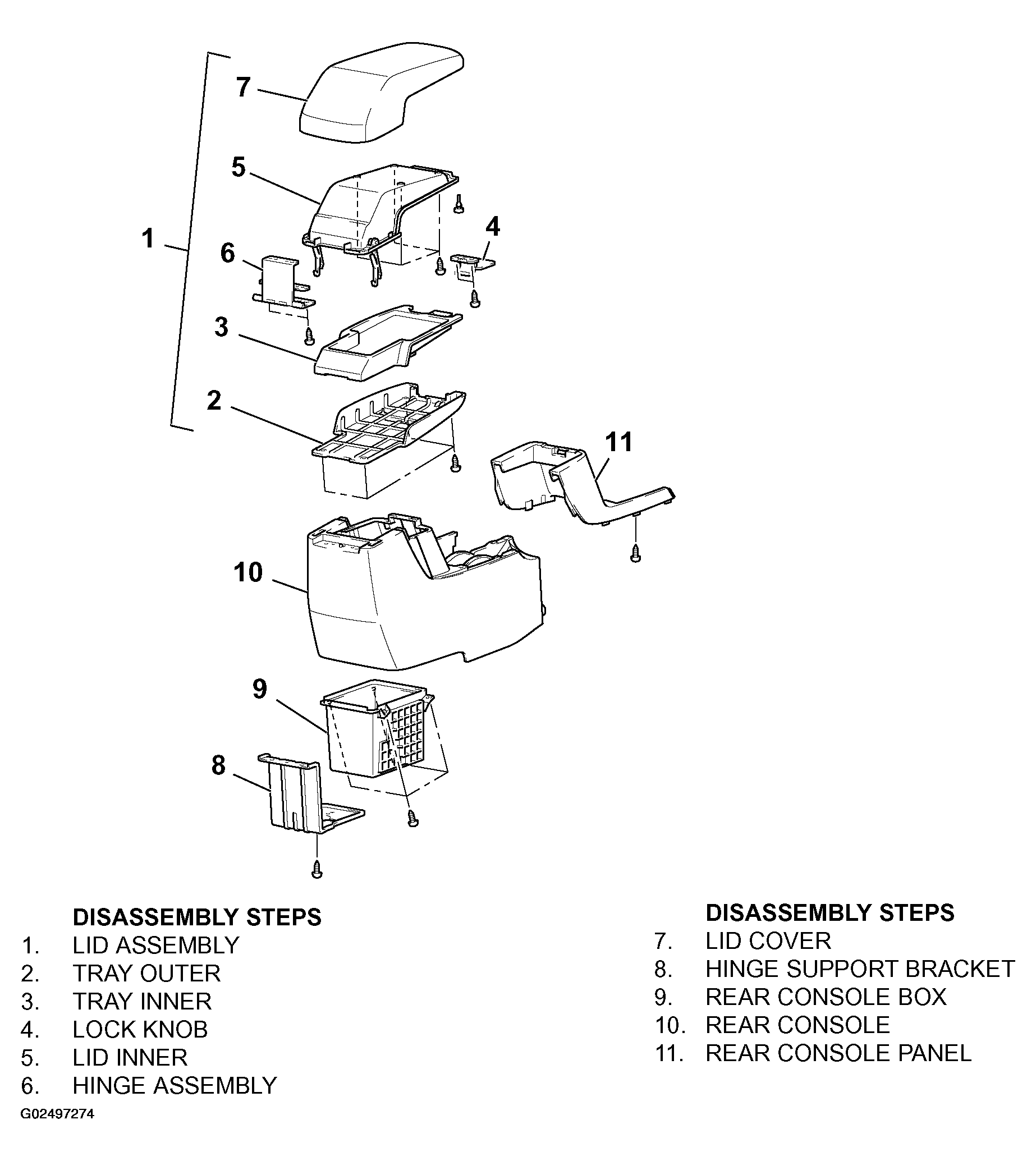

Fig 1: Identifying Floor Console Assembly Components
G02497274Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
