General Description
›
Shift Pattern Control
›
W4A4B < Downshift Pattern >
W4A4B < Downshift Pattern >

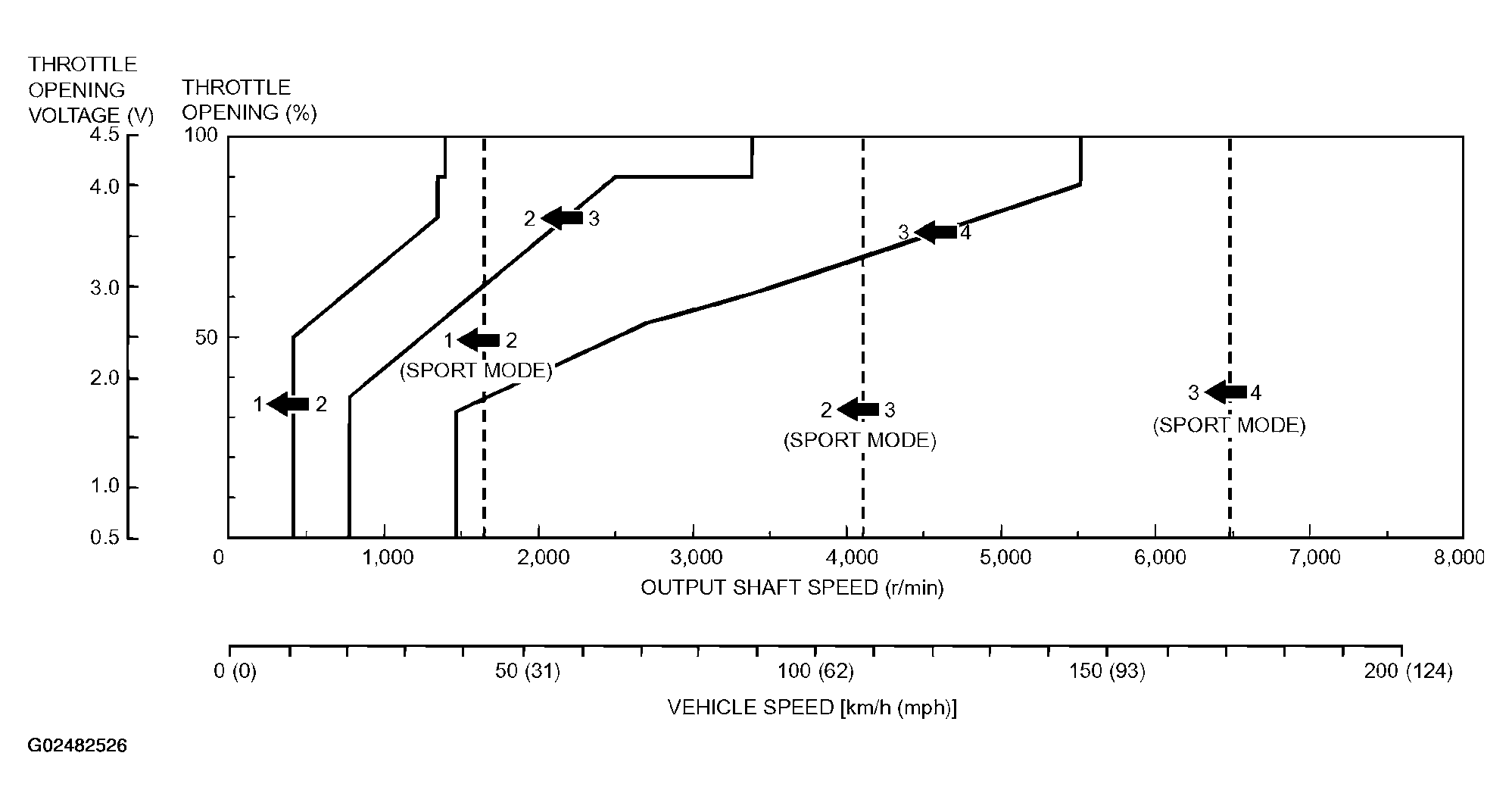

Fig 1: Identifying Shift Pattern Control (W4A4B) - Downshift Pattern
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
