Accelerator Cable And Pedal
›
Removal And Installation
›
Notes
Removal And Installation: Notes

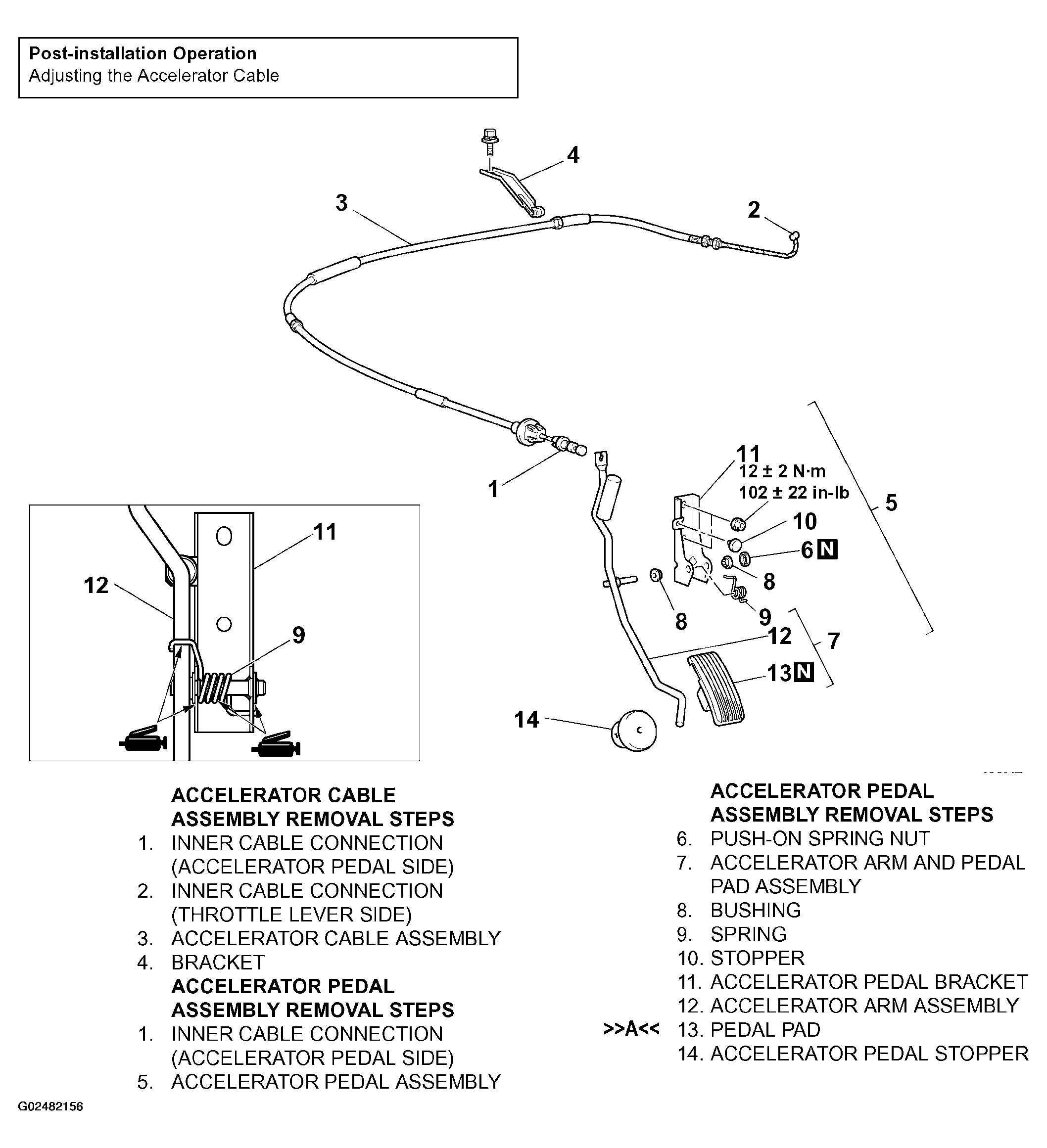

Fig 1: Removing And Installing Accelerator Cable And Pedal
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
