Disassembly And Assembly

< FRONT DOOR >

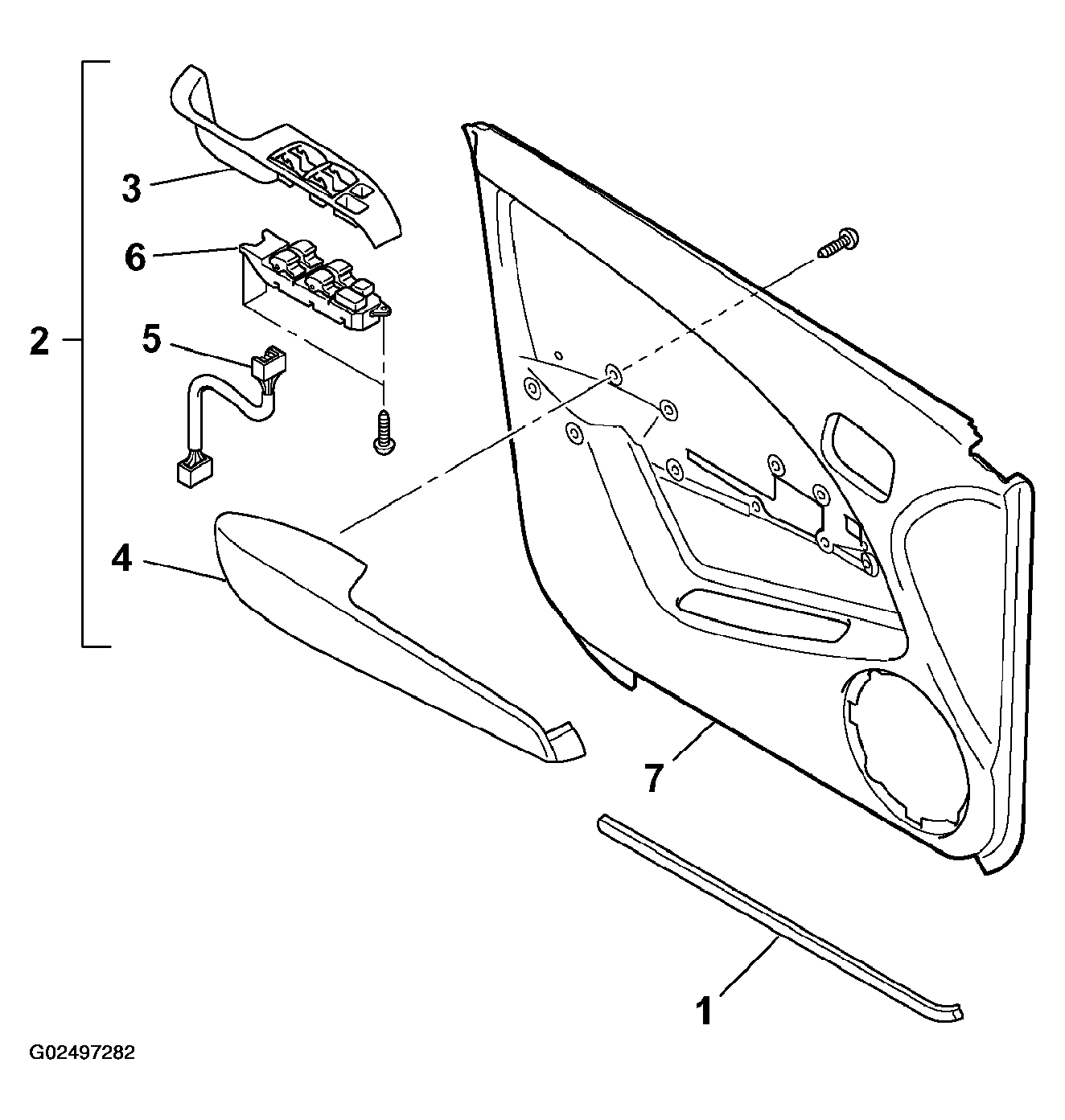

Fig 1: Removing/Installing Door Trim (Front Door)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

< REAR DOOR >

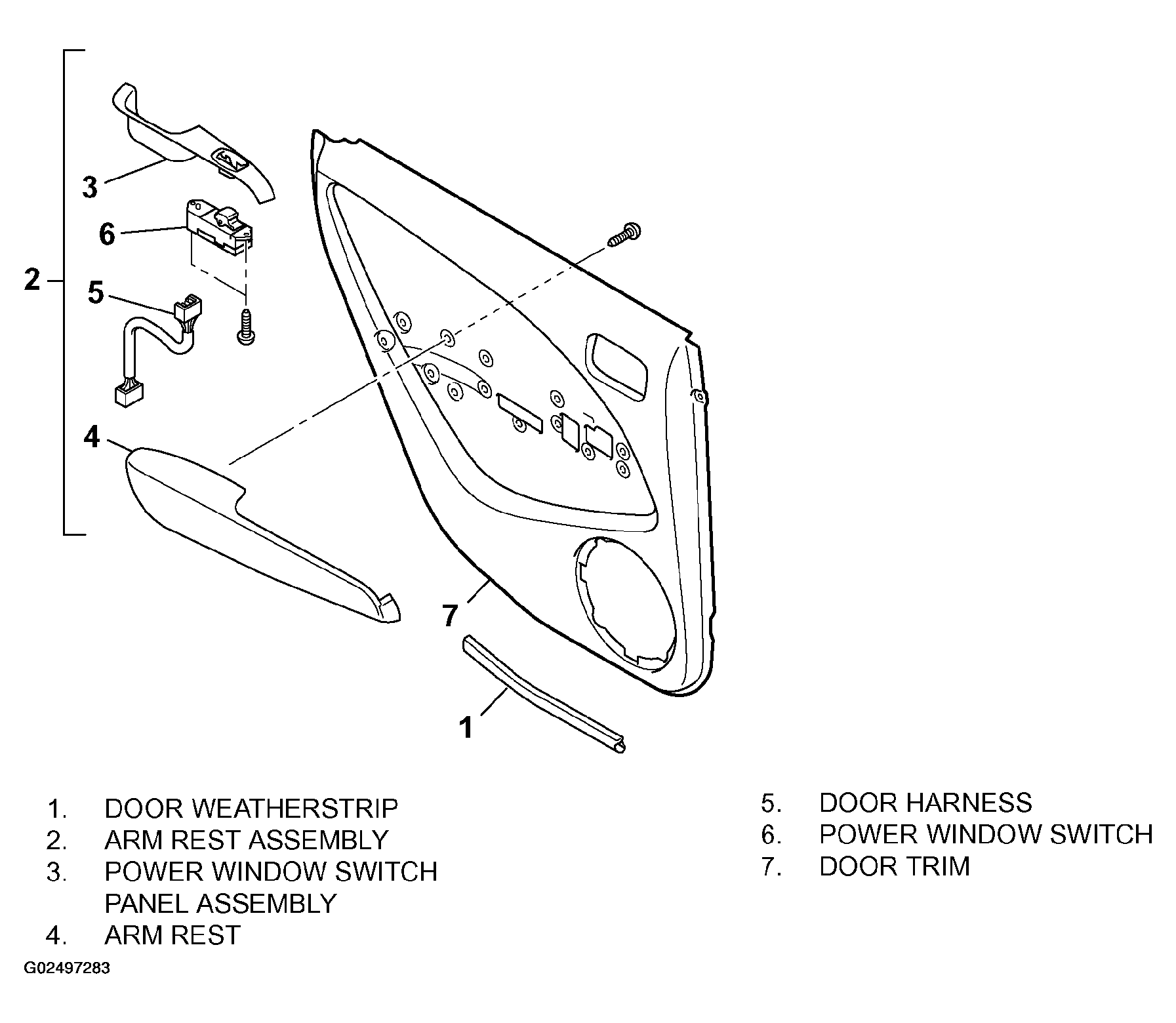

Fig 2: Removing/Installing Door Trim (Rear Door)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
