Special Tools

SPECIAL TOOLS DESCRIPTION

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04237559
 MB990900 or MB991164 Door adjusting wrench MB990900-01 Adjustment of door fit
G04237560
 MB990925 Bearing and oil seal installer set
  • A: MB990939 Remover bar
 MB990925-01 or General service tool Adjustment of door striker
G04237561
 MB990211 Slider hammer MB990211-01
G04237562
 MB990241 Axle shaft puller
  • A: MB990243 Body puller
 MB990241-01 or General service tool
G04237563

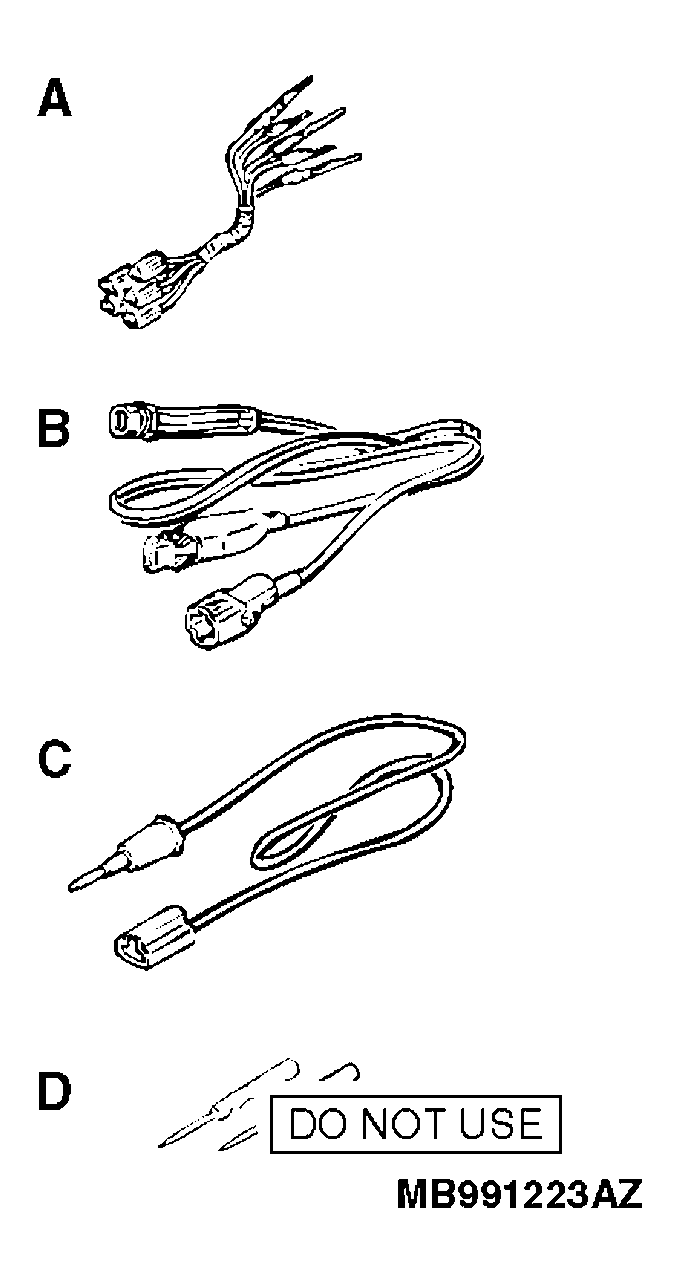

 MB991223 Harness set
  • A: MB991219 Test harness
  • B: MB991220 LED harness
  • C: MB991221 LED harness adapter
  • D: MB991222 Probe
 General service tools Making voltage and resistance measurement during troubleshooting
  • A: Connector pin contact pressure inspection
  • B: Power circuit inspection
  • C: Power circuit inspection
  • D: Commercial tester connection
G04237564
 MB992006
Extra fine probe		 - Making voltage and resistance measurement during troubleshooting
G04237565G04237566
G04237565G04237566
 MB992050 Delta glass adjust block set
  • A: MB992051 Delta glass adjust block A
  • B: MB992052 Delta glass adjust block B
 - Adjustment of delta window glass
G04237567G04237568G04237569G04237570
G04237567G04237568G04237569G04237570
G04237567G04237568G04237569G04237570
G04237567G04237568G04237569G04237570
 MB992053 Door glass adjust block set
  1. C: MB992054 Door glass adjust block C
  2. D: MB992055 Door glass adjust block D
  3. E: MB992056 Door glass adjust block E
  4. F: MB992057 Door glass adjust block F
 - Adjustment of front door window glass
