How To Use SWS Monitor

To carry out troubleshooting, operate scan tool MB991958 (MUT-III Sub Assembly) as follows.

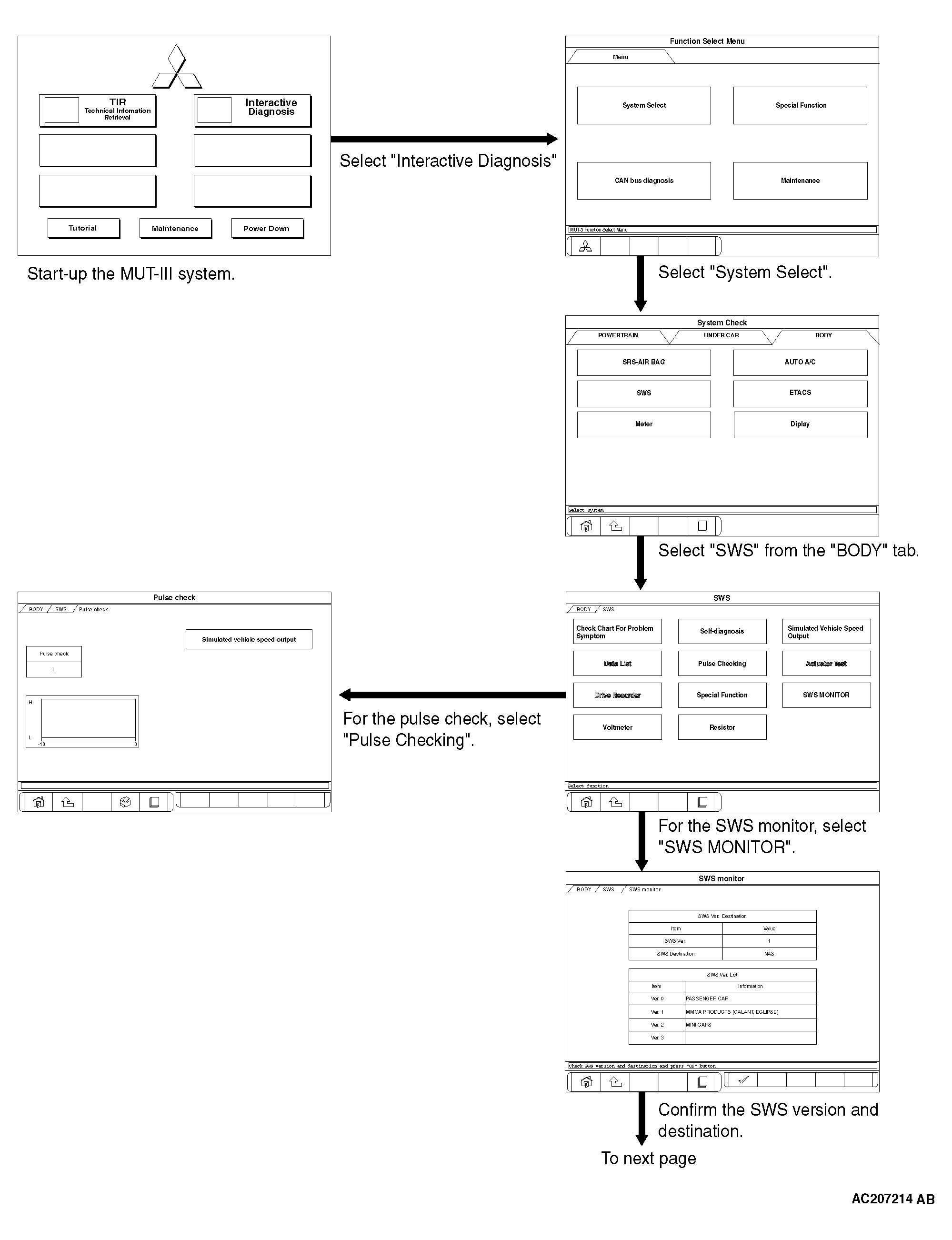

Fig 1: SWS Monitor Troubleshooting Procedure (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

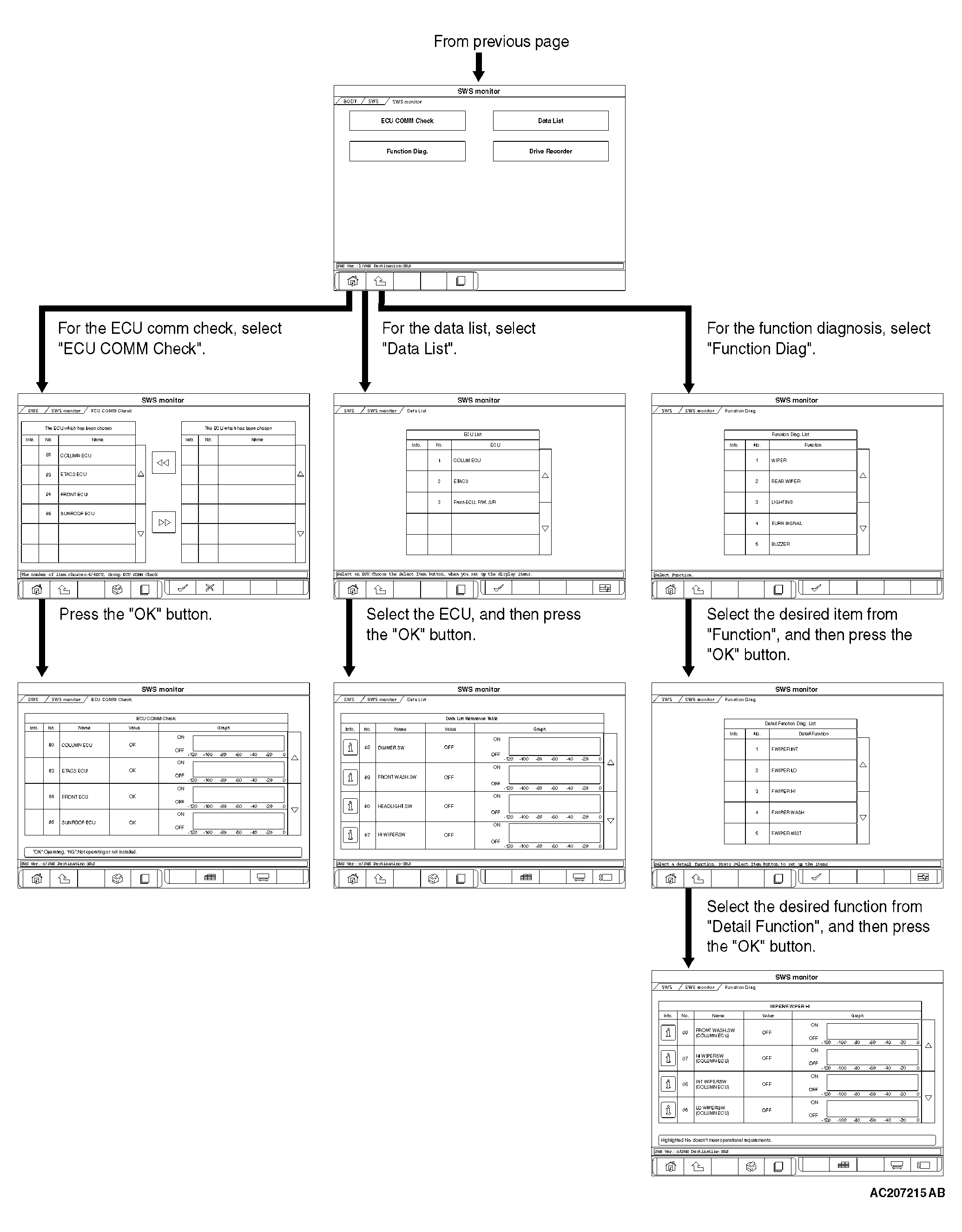

Fig 2: SWS Monitor Troubleshooting Procedure (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
