Fuel Level Sensor Check

  1. Remove the rear seat cushion assembly. (Refer to REAR SEAT ASSEMBLY .)
  2. Remove hole cover, grommet and remove the fuel pump module and fuel level sensor (sub).

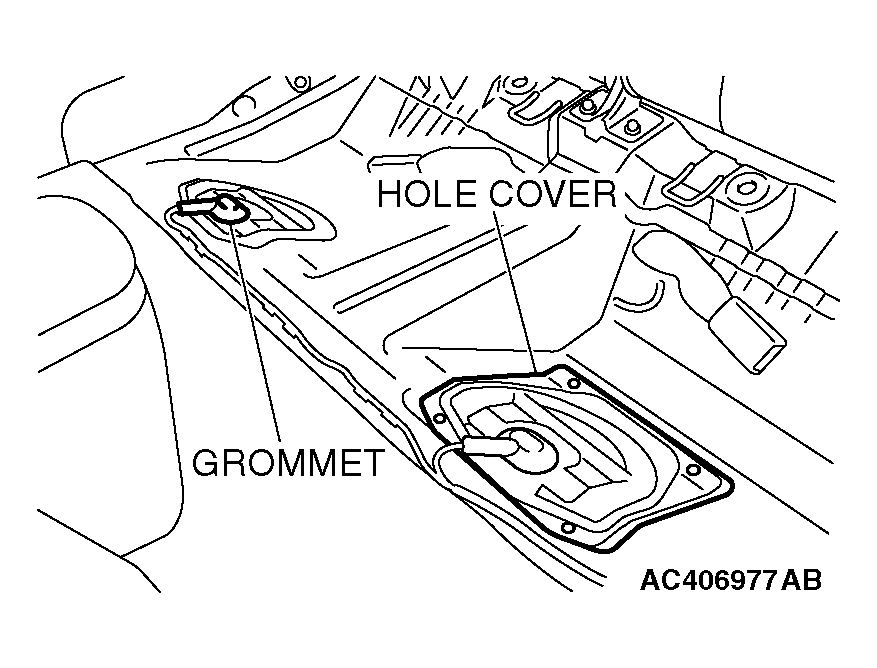

    Fig 1: Locating Hole Cover And Grommet
    G04238890Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
