Fuel Level Sensor Float Height

Move the float and measure height A at point "F" (highest) and B at point "E" (lowest).

ITEM AND FUEL LEVEL CHART - STANDARD VALUE

ITEM		FUEL LEVEL SENSOR (main)	FUEL LEVEL SENSOR (sub)
Height mm (in)	A at point "F"	131.5 (5.1)	24.9 +/- 3.0 (0.9 +/- 0.1)
Height mm (in)	B at point "E"	34.5 (1.3)	172.7 +/- 3.0 (6.7 +/- 0.1)

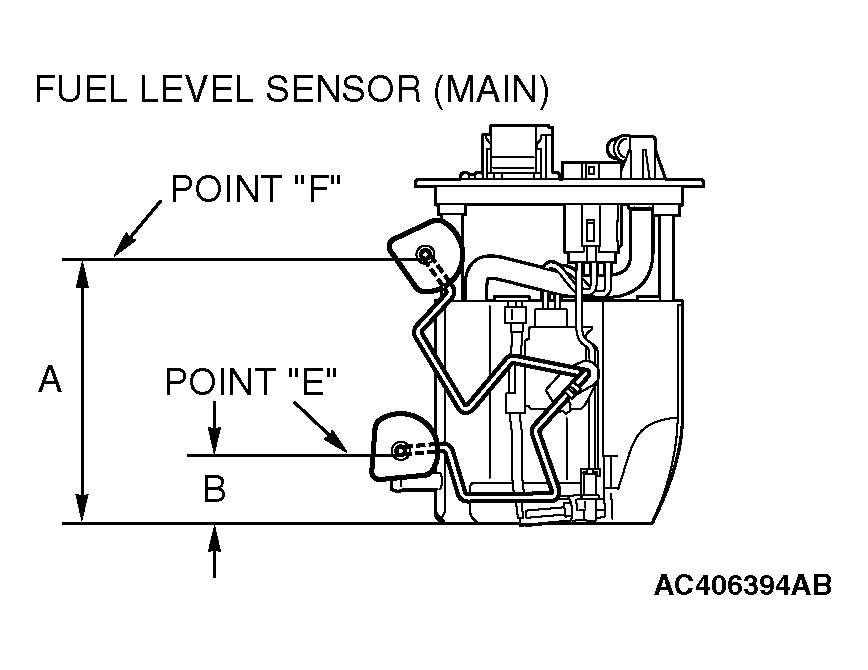

Fig 1: Checking Fuel Level Sensor Float Height - Main

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

If any check is not correct, replace the fuel pump module or fuel level sensor (sub).

Fig 2: Checking Fuel Level Sensor Float Height - Sub
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
