Mitsubishi
›
2006
›
Eclipse GS, Automatic
›
Repair and Diagnosis
›
Restraints
›
Passive Restraints
›
Interior
›
Floor Console Assembly
›
Removal And Installation
Removal And Installation

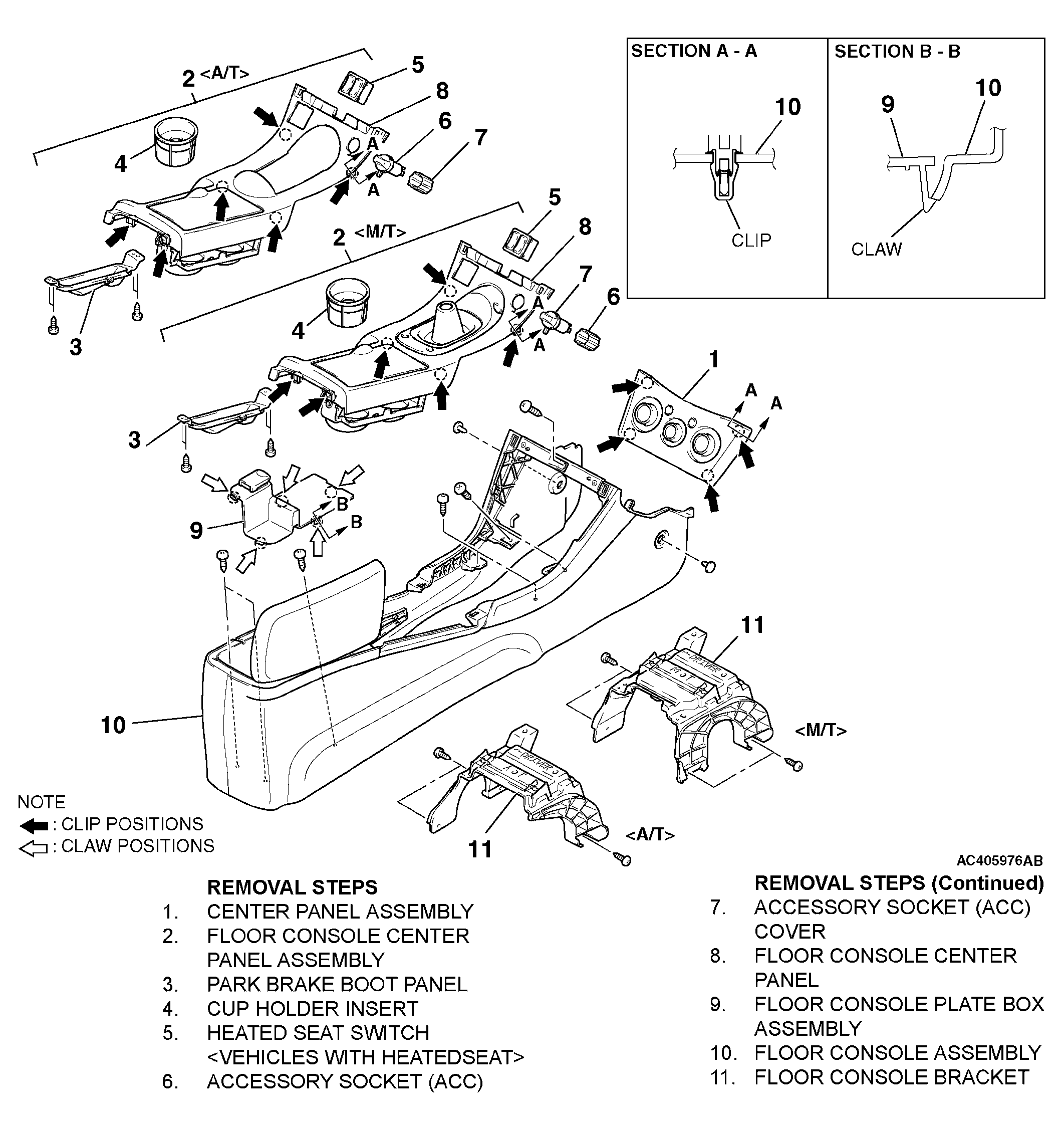

Fig 1: Removing And Installing Floor Console Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
