Warning/Caution Labels: Schematic

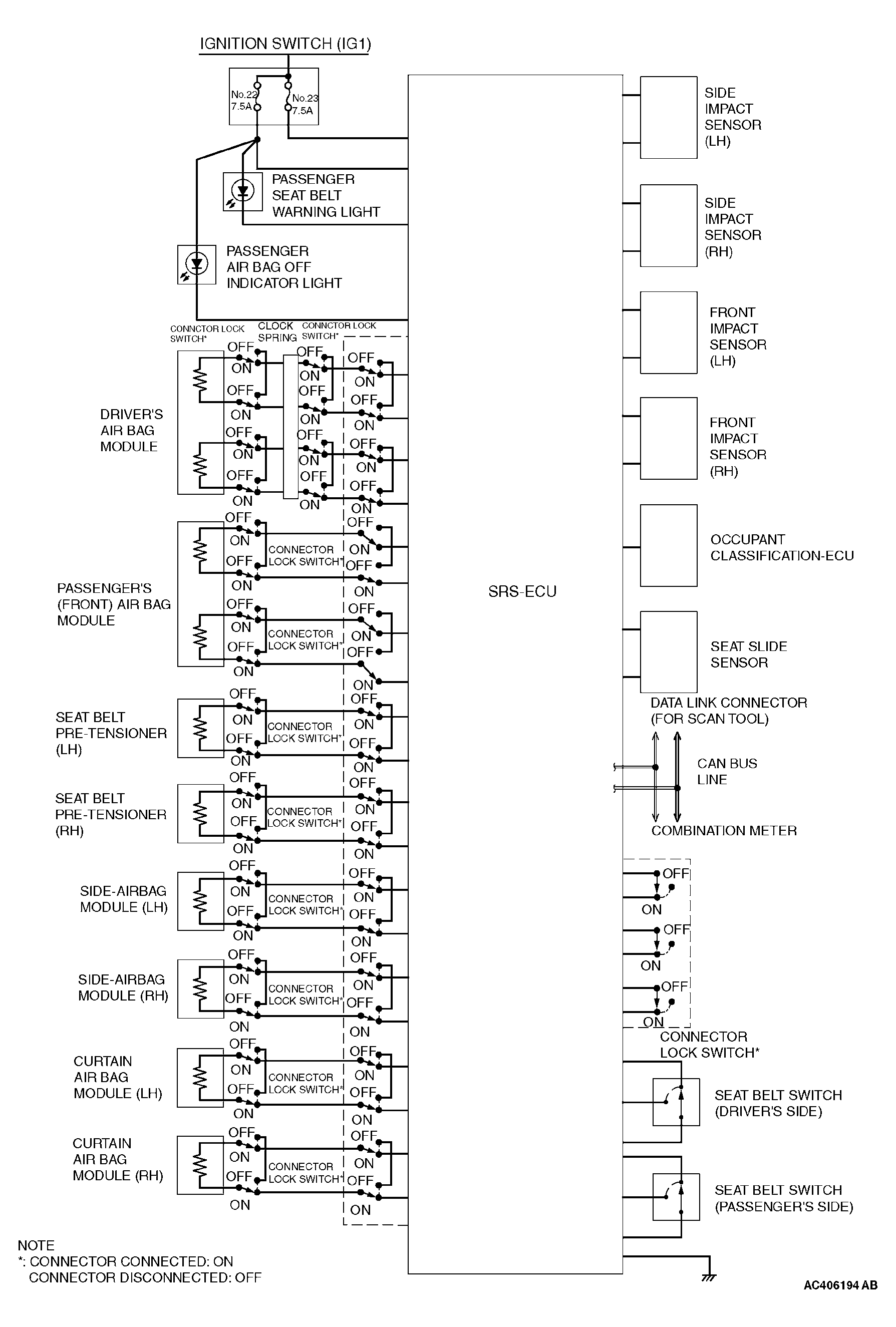

Fig 1: Supplemental Restraint System - Schematic Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
