Removal And Installation: Notes

WARNING:

• Before removing the steering wheel and air bag module assembly, refer to SERVICE PRECAUTIONS and AIR BAG MODULE AND CLOCK SPRING .
• When removing and installing the steering wheel, do not let it bump against the air bag module.

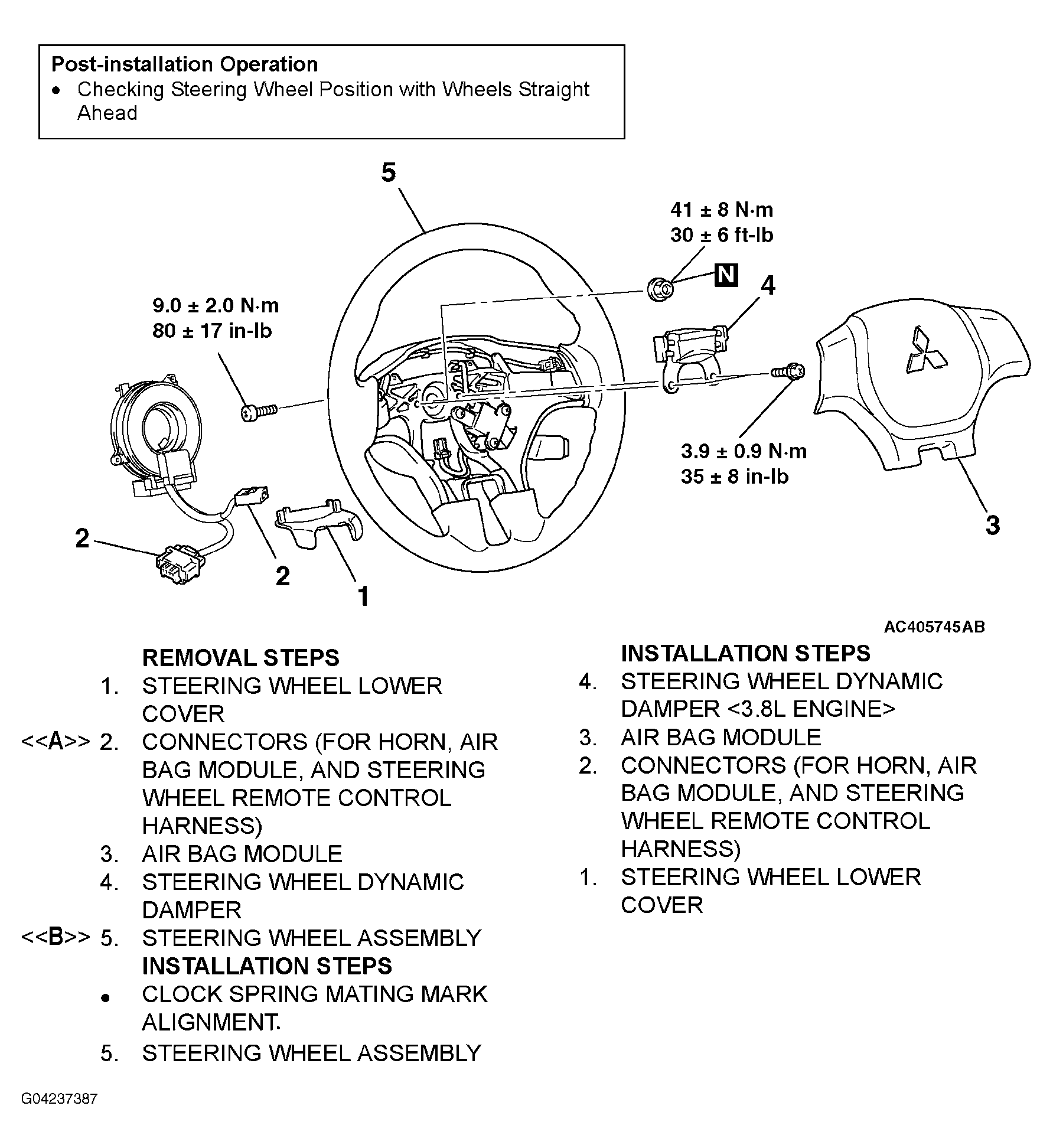

Fig 1: Removing/Installing Steering Wheel Components With Torque Specifications

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
