Disassembly And Assembly: Notes

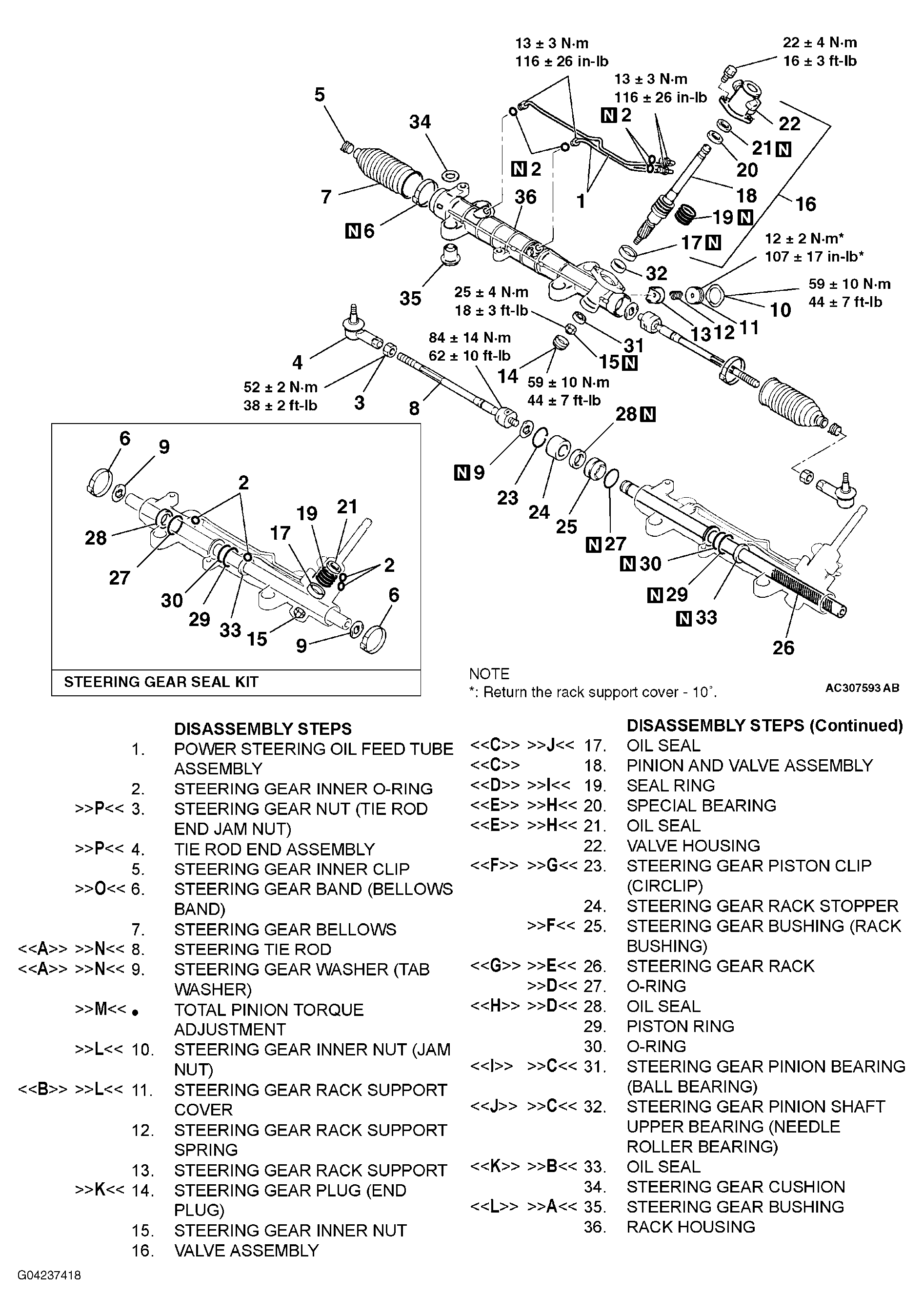

Fig 1: Disassembling/Assembling Power Steering Gear Box Linkage With Torque Specifications
G04237418Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
