Disassembly And Assembly: Notes

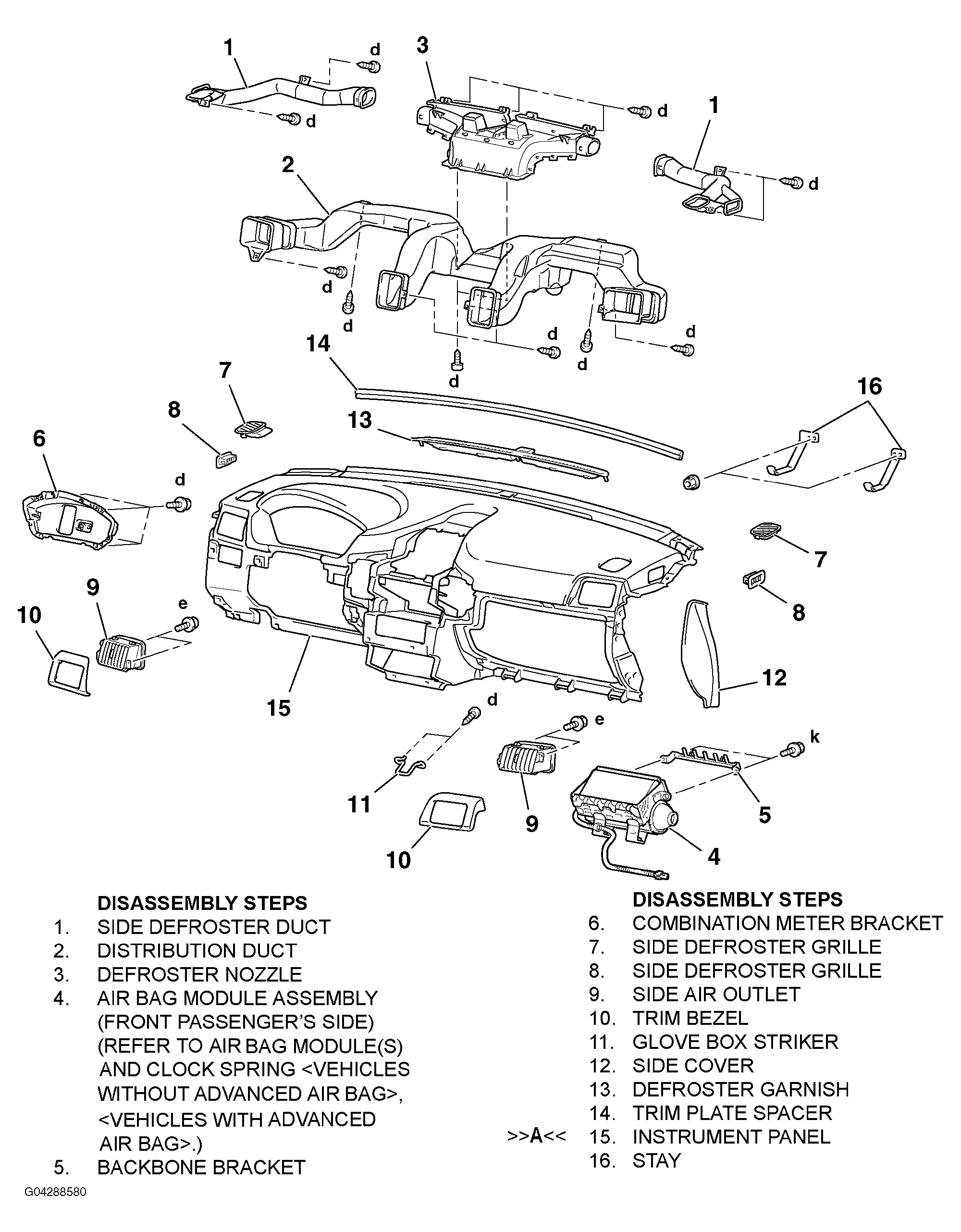

Fig 1: Exploded View Of Instrument Panel Assembly
G04288580Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
