General
›
Vehicle Identification
›
Vehicle Information Code Plate
›
Locations
Vehicle Information Code Plate: Locations

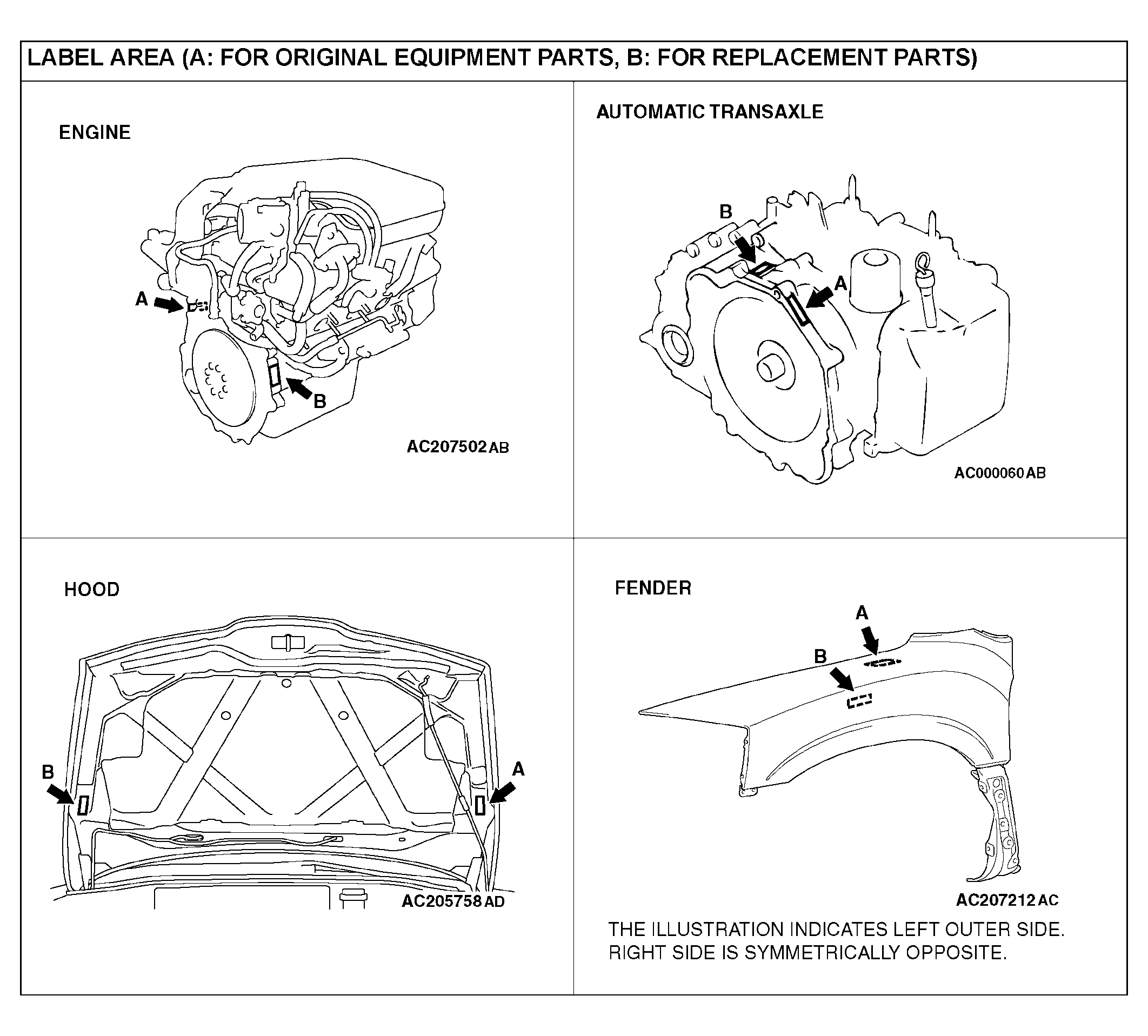

Fig 1: Identifying Label Area Locations (1 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

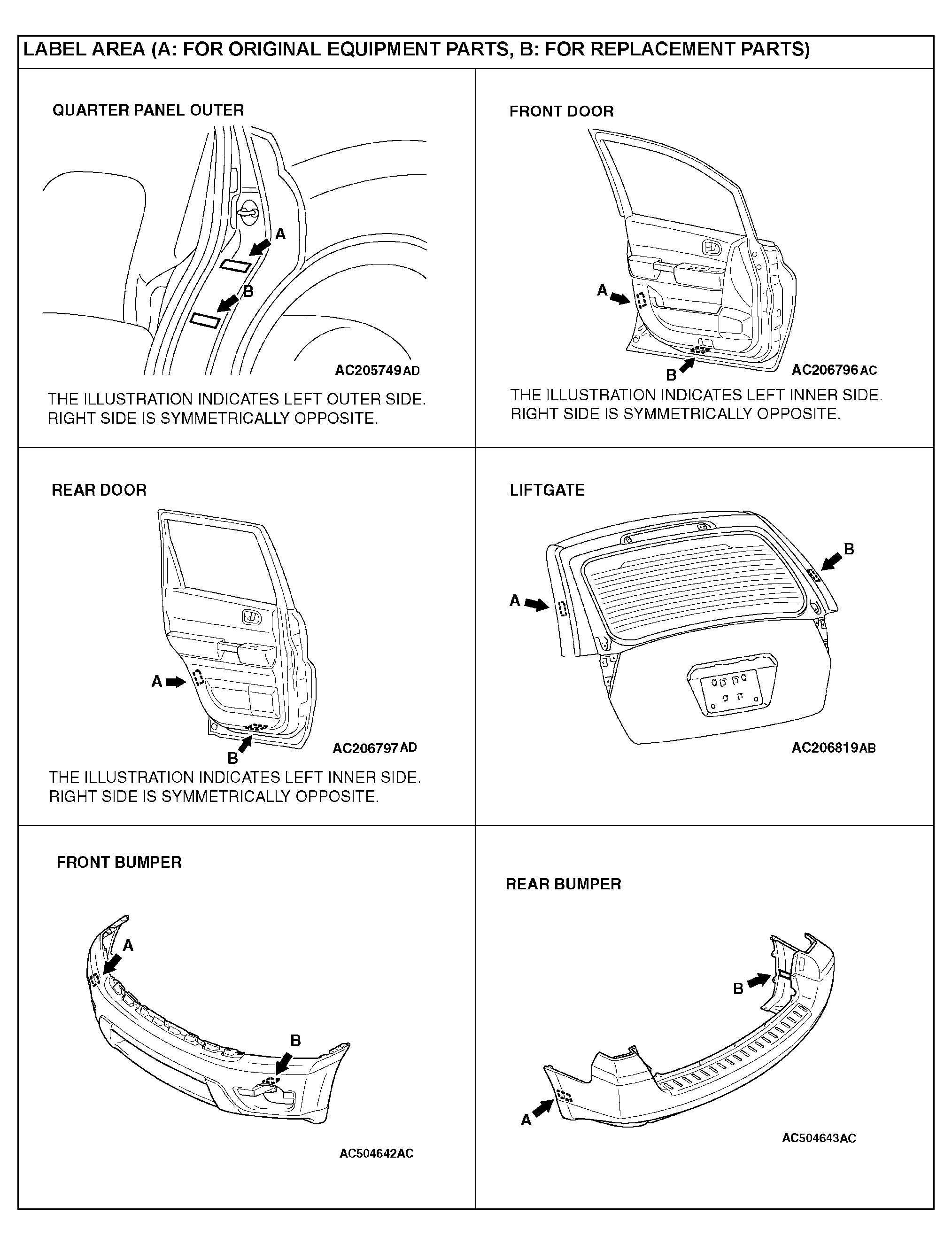

Fig 2: Identifying Label Area Locations (2 Of 2)
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
