Mitsubishi
›
2006
›
Endeavor Limited, AWD
›
Repair and Diagnosis
›
Steering
›
Steering Column
›
Power Steering Oil Pump Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes

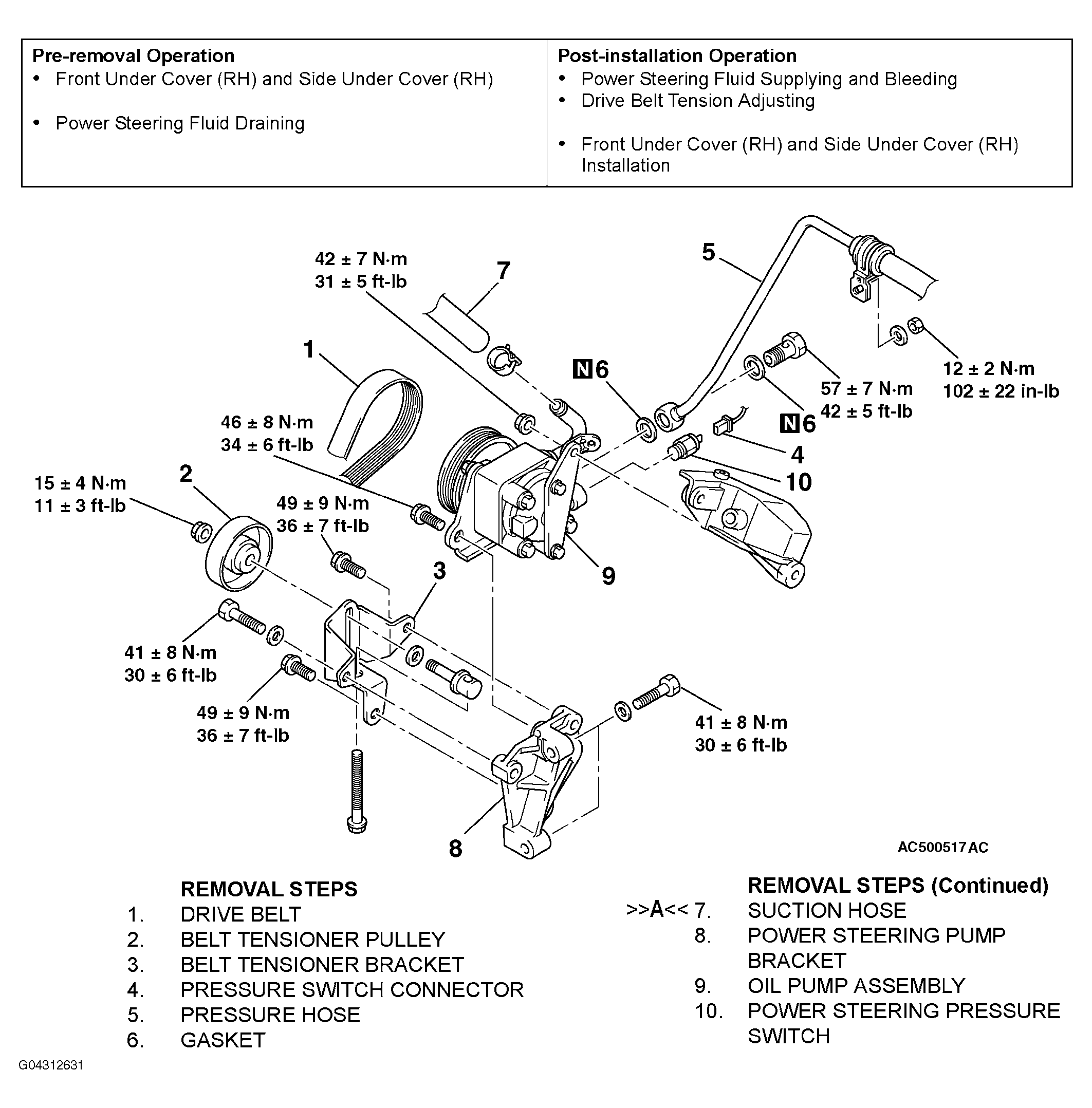

Fig 1: Power Steering Oil Pump Assembly With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
