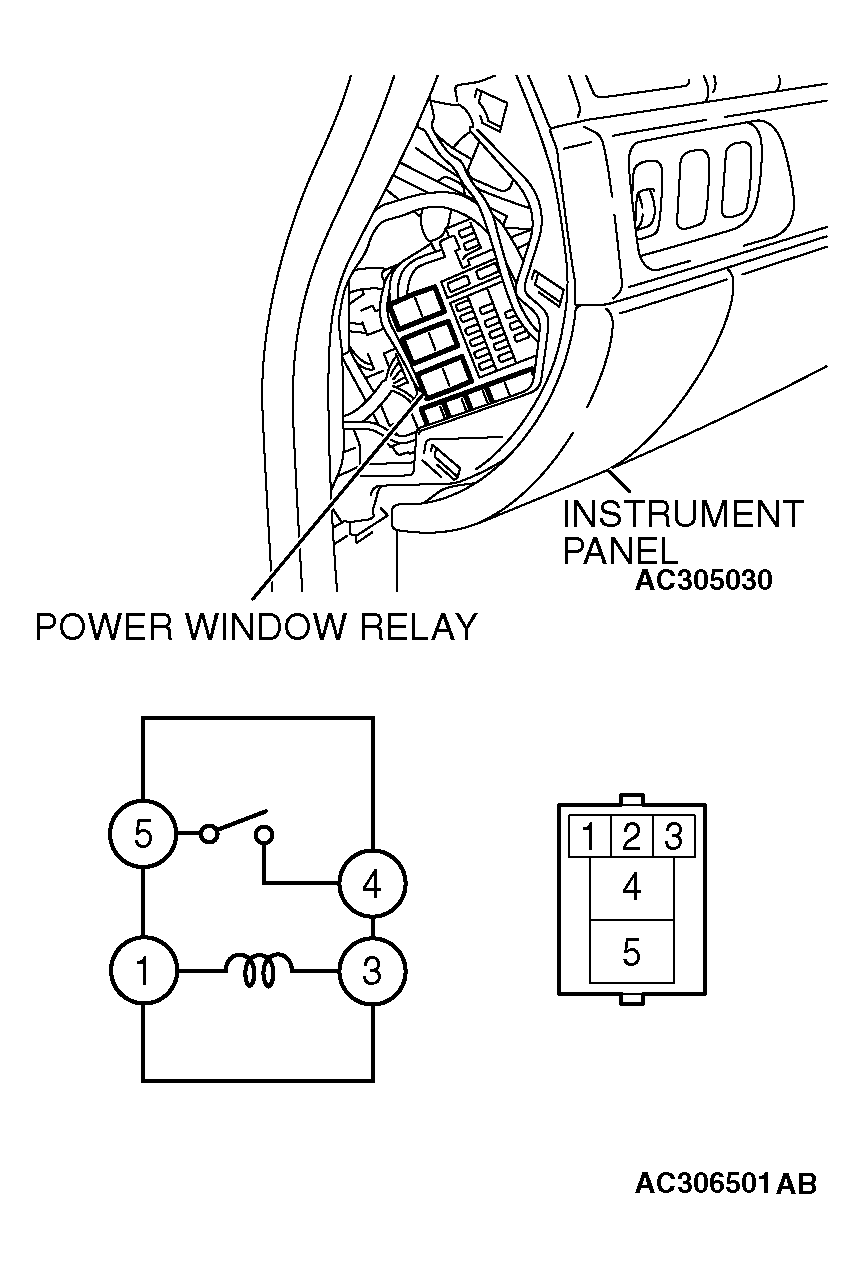

Power Window Relay Check
POWER WINDOW RELAY SPECIFIED CONDITION
| BATTERY VOLTAGE |
TESTER CONNECTION |
SPECIFIED CONDITION |
| Not applied |
4 - 5 |
Open circuit |
- Connect terminal No. 3 and the negative battery terminal.
- Connect terminal No. 1 and the positive battery terminal.
|
4 - 5 |
Less than 2 ohms |
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
