Traction Control System
›
General Description
›
Construction Diagram
Construction Diagram

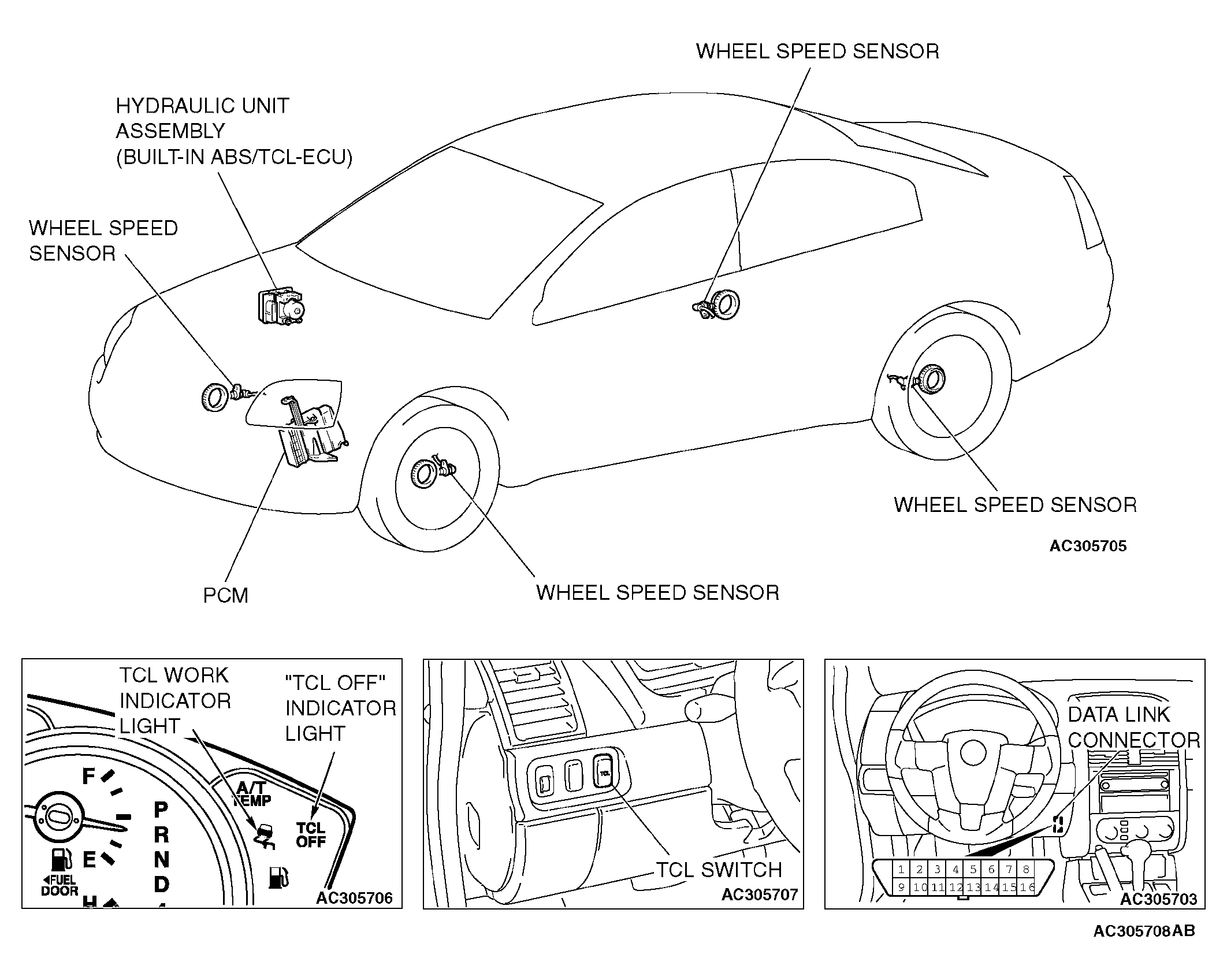

Fig 1: Construction Diagram - Traction Control System
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
