Special Tools

SPECIAL TOOLS

TOOL TOOL NUMBER AND NAME SUPERSESSION APPLICATION
G04257032G04257033G04257034G04257035G04257036G04257037G04257038
G04257032G04257033G04257034G04257035G04257036G04257037G04257038
G04257032G04257033G04257034G04257035G04257036G04257037G04257038
G04257032G04257033G04257034G04257035G04257036G04257037G04257038
G04257032G04257033G04257034G04257035G04257036G04257037G04257038
G04257032G04257033G04257034G04257035G04257036G04257037G04257038
G04257032G04257033G04257034G04257035G04257036G04257037G04257038
 MB991958
  1. MB991824
  2. MB991827
  3. MB991910
  4. MB991911
  5. MB991914
  6. MB991825
  7. MB991826

M.U.T.-III sub assembly
  1. Vehicle communication interface (V.C.I.)
  2. M.U.T.-III USB cable
  3. M.U.T.-III main harness A (Vehicles with CAN communication system)
  4. M.U.T.-III main harness B (Vehicles without CAN communication system)
  5. M.U.T.-III main harness C (for Daimler Chrysler models only)
  6. M.U.T.-III measurement adapter
  7. M.U.T.-III trigger harness
 MB991824-KIT
NOTE: G: MB991826 M.U.T.-III Trigger Harness is not necessary when pushing V.C.I. ENTER key.
 Reading diagnostic trouble code
CAUTION: M.U.T.-III main harness A (MB991910) should be used. M.U.T.-III main harness B and C should not be used for this vehicle.
G04257039

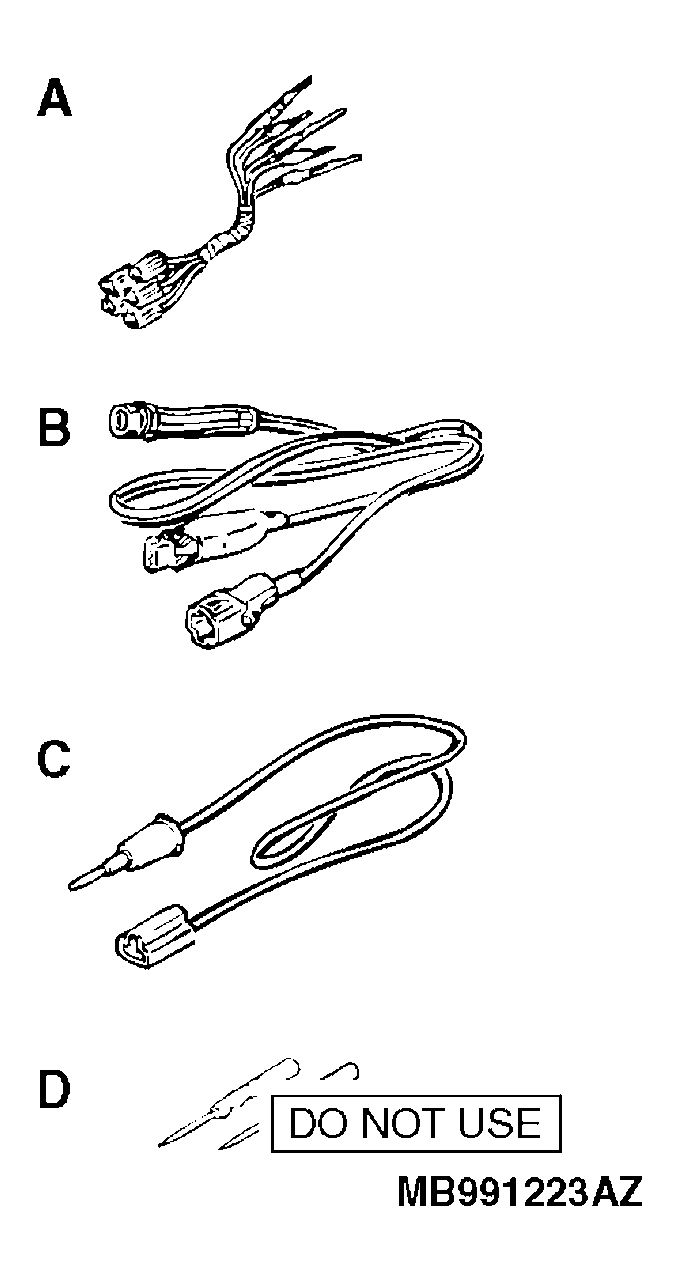

 MB991223
  1. MB991219
  2. MB991220
  3. MB991221
  4. MB991222

Harness set
  1. Test harness
  2. LED harness
  3. LED harness adapter
  4. Probe
 General service tool (jumper) Making voltage and resistance measurements during troubleshooting
  1. Connect pin contact pressure inspection
  2. Power circuit inspection
  3. Power circuit inspection
  4. Commercial tester connection
G04257040
 MB992006 Extra fine probe - Making voltage and resistance measurement during troubleshooting
