Disassembly And Assembly: Notes

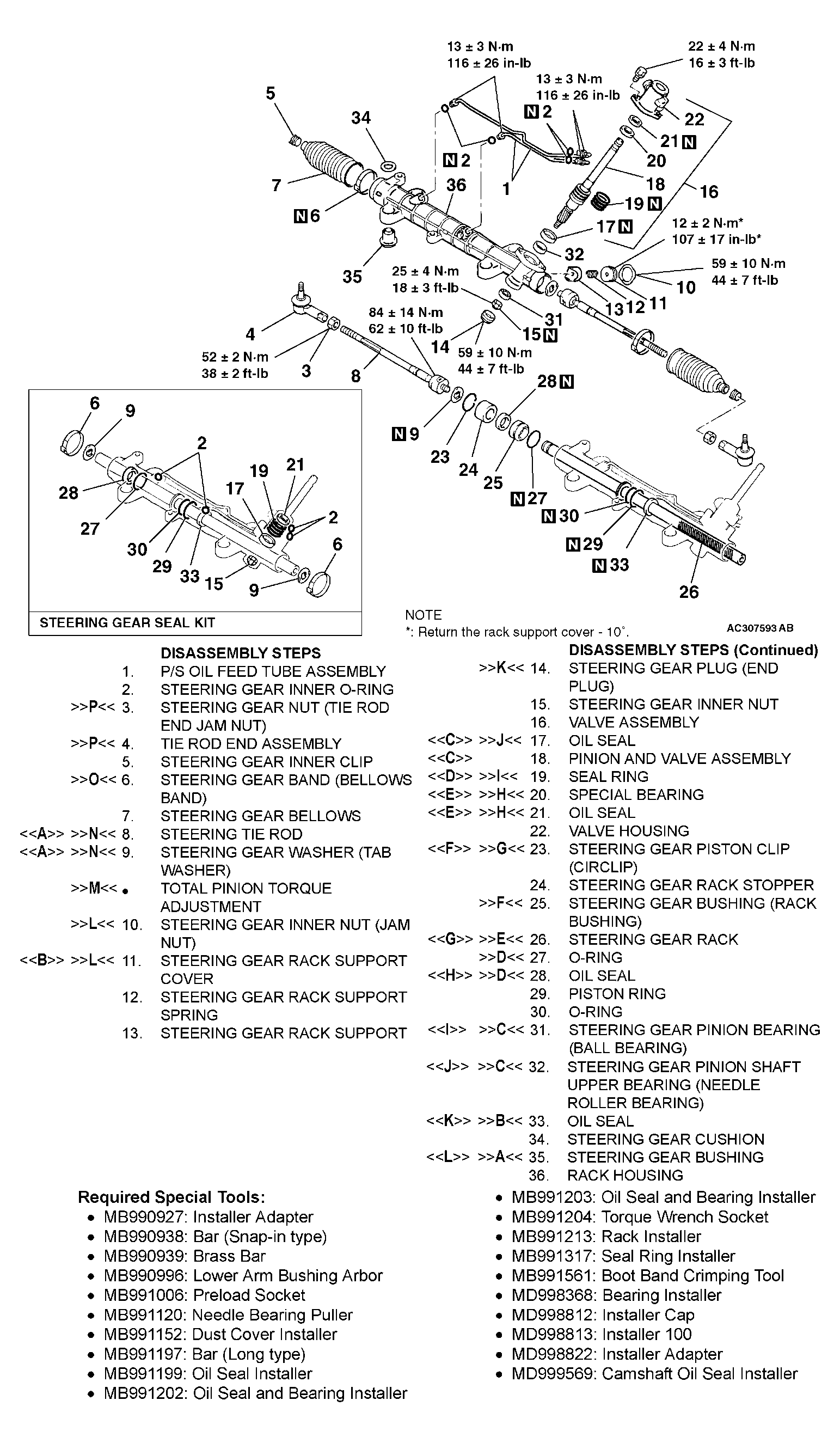

Fig 1: Disassembling/Assembling Power Steering Gear Box And Linkage
G04255549Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
