Disassembly And Assembly
›
< 2.4L Engine >
< 2.4L Engine >

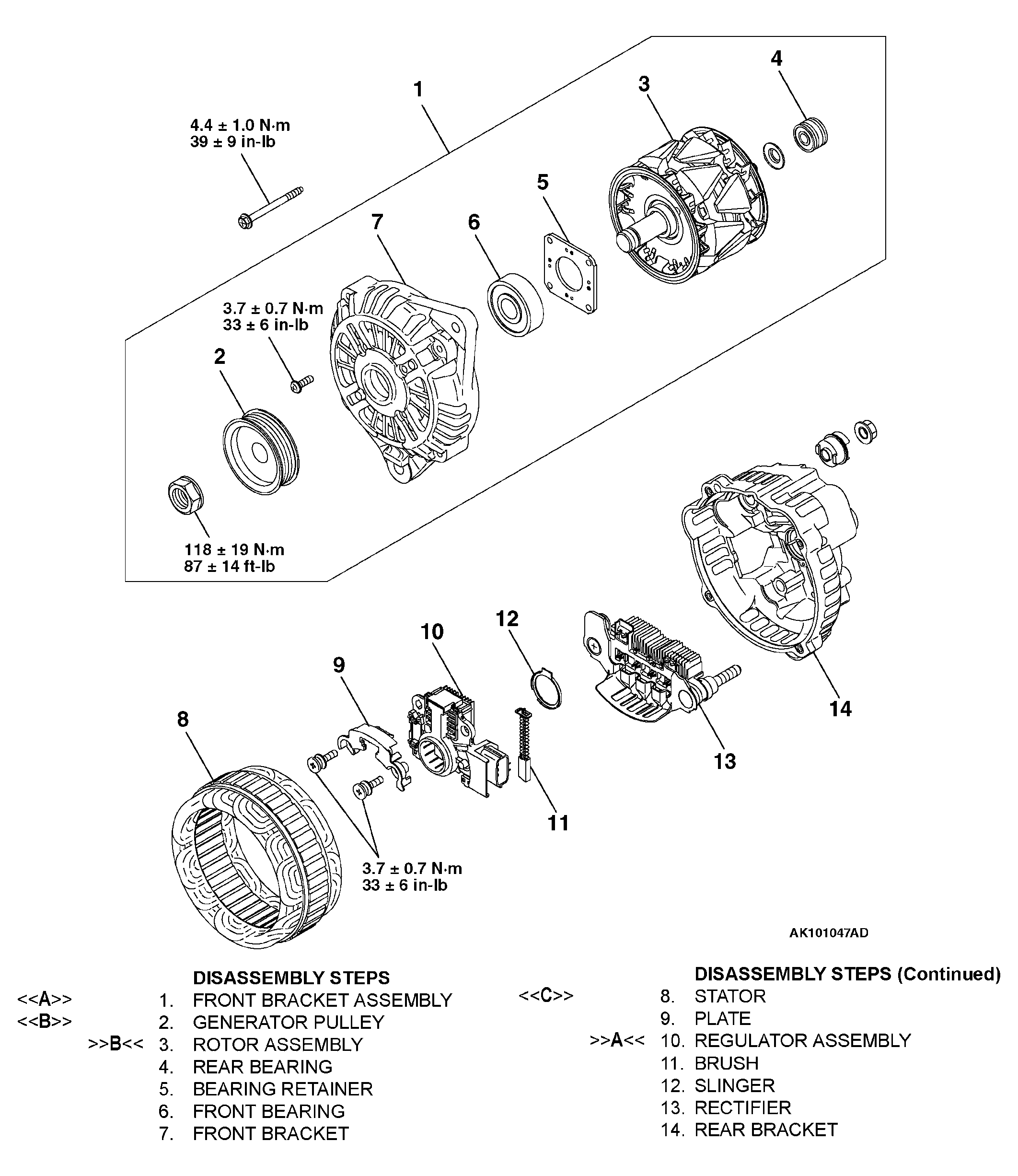

Fig 1: Exploded View Of Generator - 2.4L Engine With Torque Specifications
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
