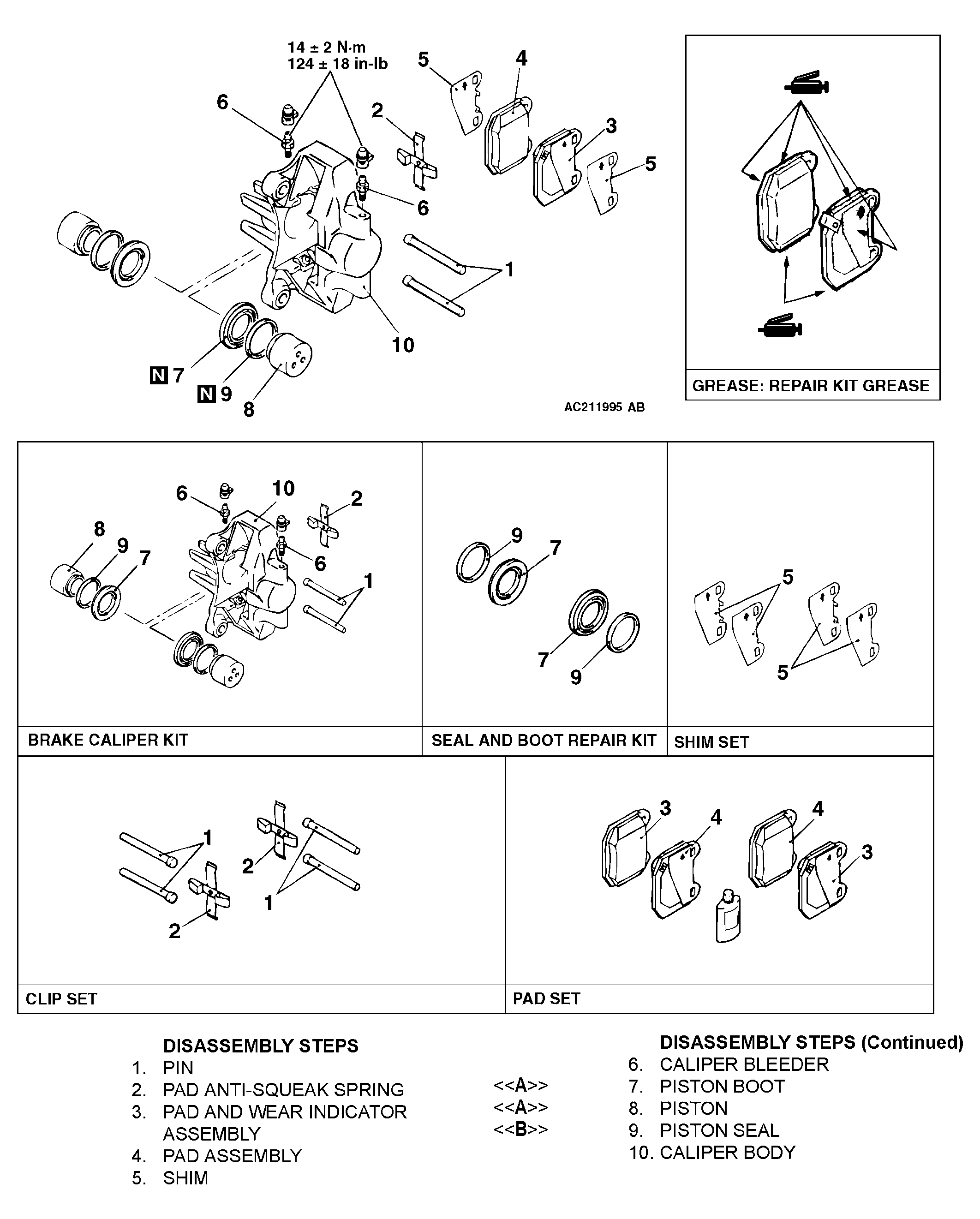

Disassembly And Assembly: Notes
WARNING: This page is about a different variant/trim than selected.
CAUTION:
Take care not to contact the parts or tools to the caliper because the paint of caliper will be scratched. And if there is brake fluid on the caliper, wipe it off quickly.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
