FixVault
Home
›
Mitsubishi
›
2006
›
Lancer ES, Standard
›
Repair and Diagnosis (Single Page)
›
Electrical
›
Charging Systems
›
Charging System - Lancer
›
Generator Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

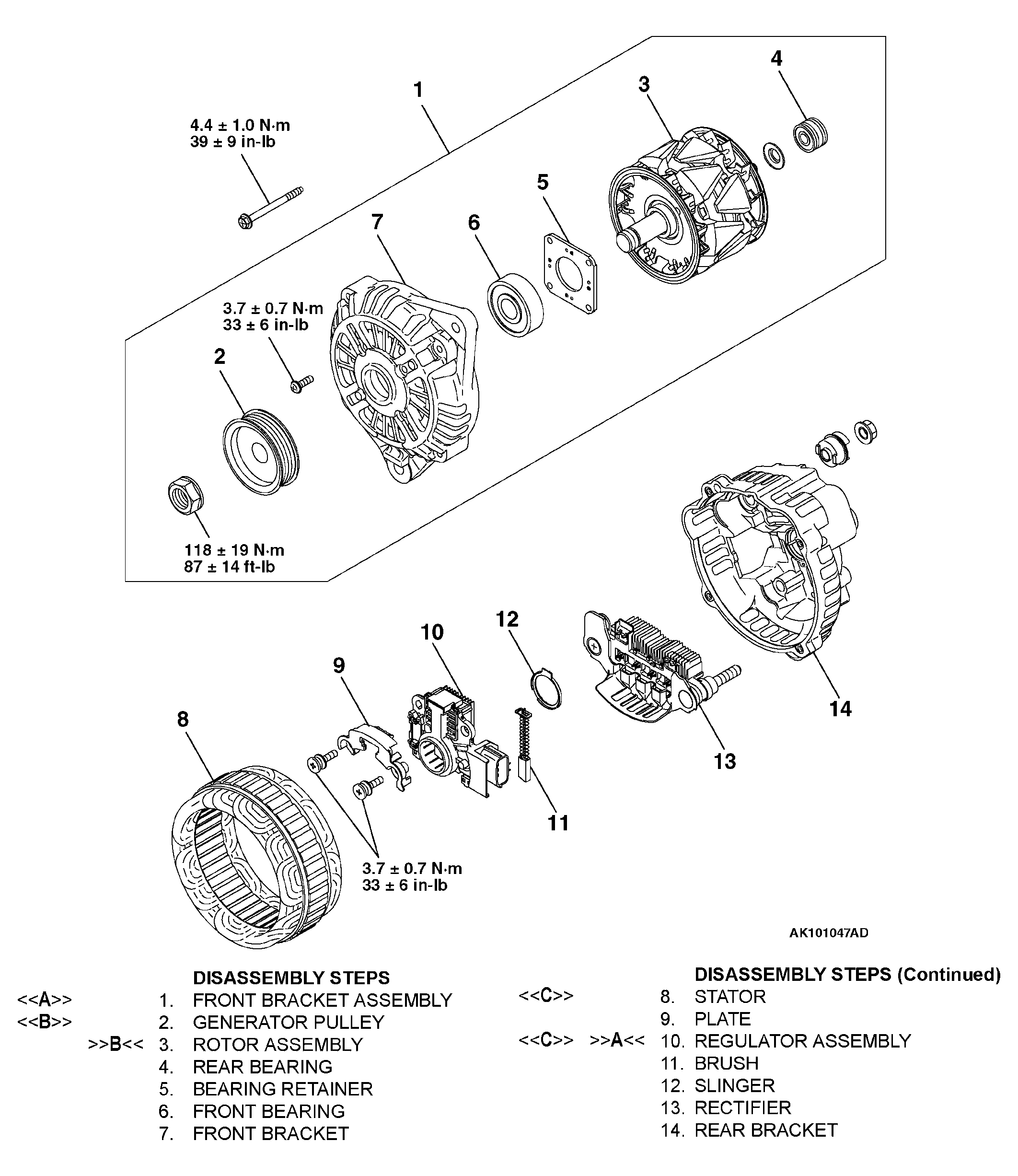

Fig 1: Disassembling/Assembling Generator Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
