Fan Control Relay Continuity Check
WARNING: This page is about a different variant/trim than selected.

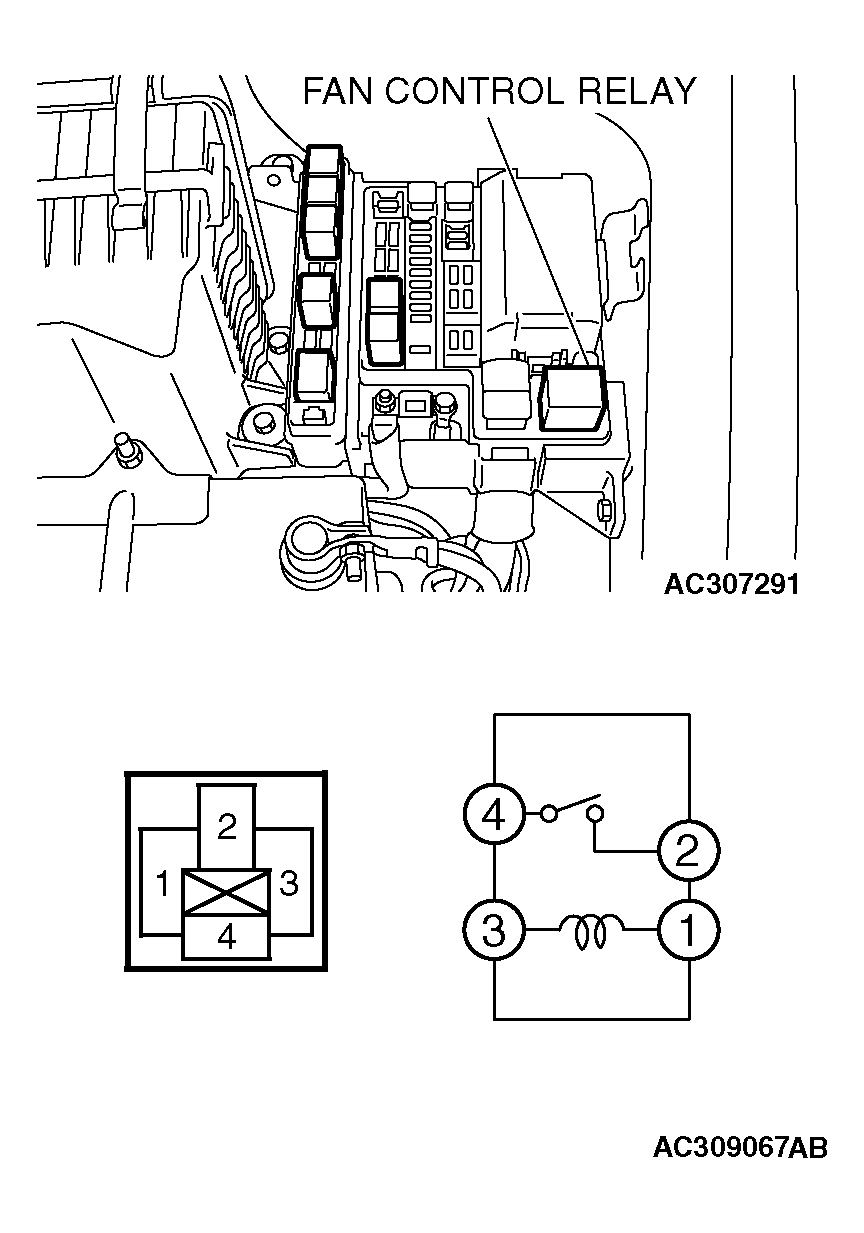

FAN CONTROL RELAY CONTINUITY CHECK CHART
| BATTERY VOLTAGE |
TERMINAL NO. TO BE CONNECTED TO TESTER |
CONTINUITY TEST RESULTS |
| Not applied |
4 - 2 |
Open circuit |
| Connect terminal No.1 and battery (-) terminal. Connect terminal No.3 and battery (+) terminal. |
4 - 2 |
Less than 2 ohms |
