Disassembly And Assembly < 2.4 L>: Notes

WARNING: This page is about a different variant/trim than selected.

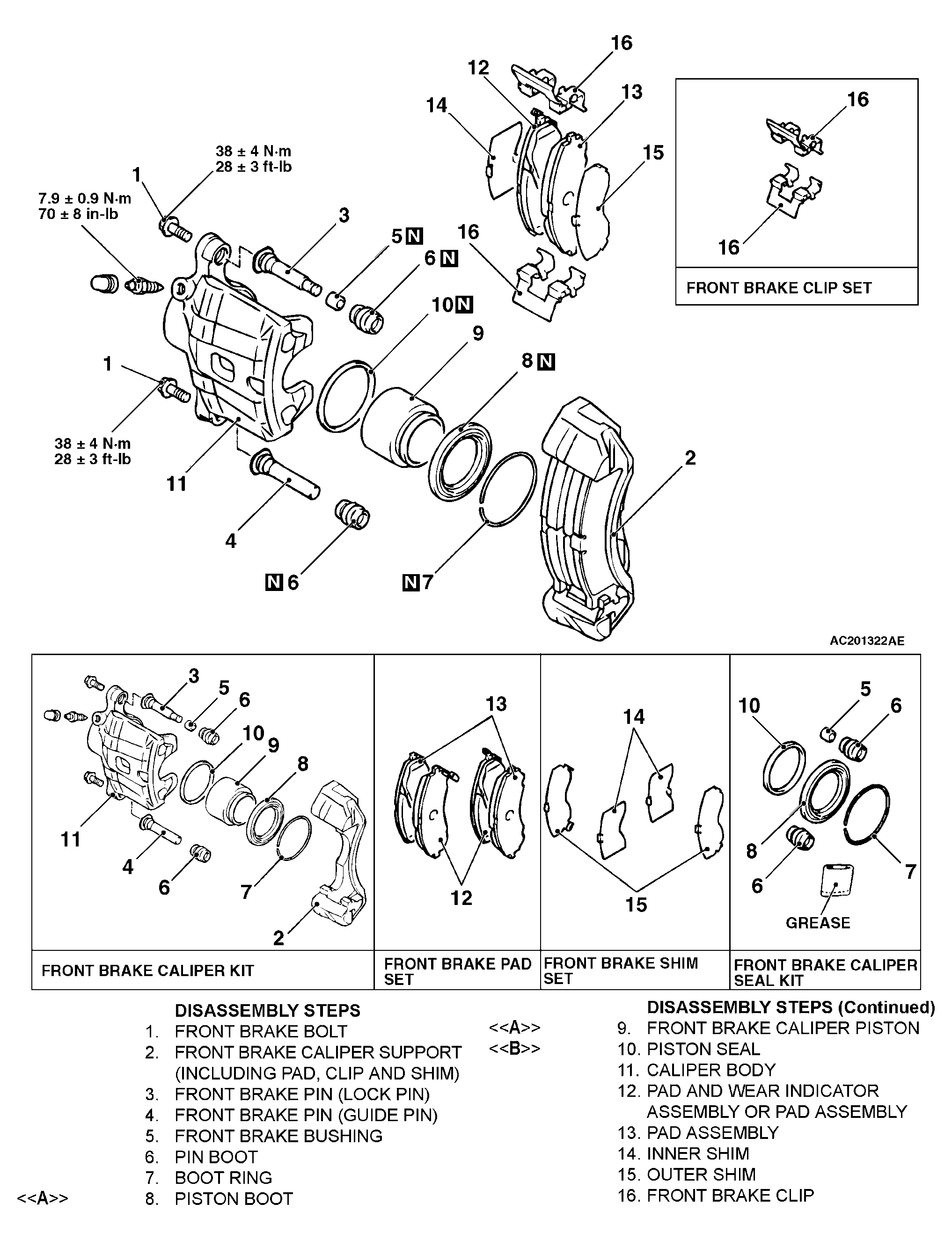

Fig 1: Exploded View Of Front Disc Brake Assembly (2.4L)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
