Section 23 (Basic Brake System - Lancer)
›
Rear Disc Brake Assembly
›
Removal And Installation
›
Notes
Removal And Installation: Notes
WARNING:
This page is about a different variant/trim than selected.

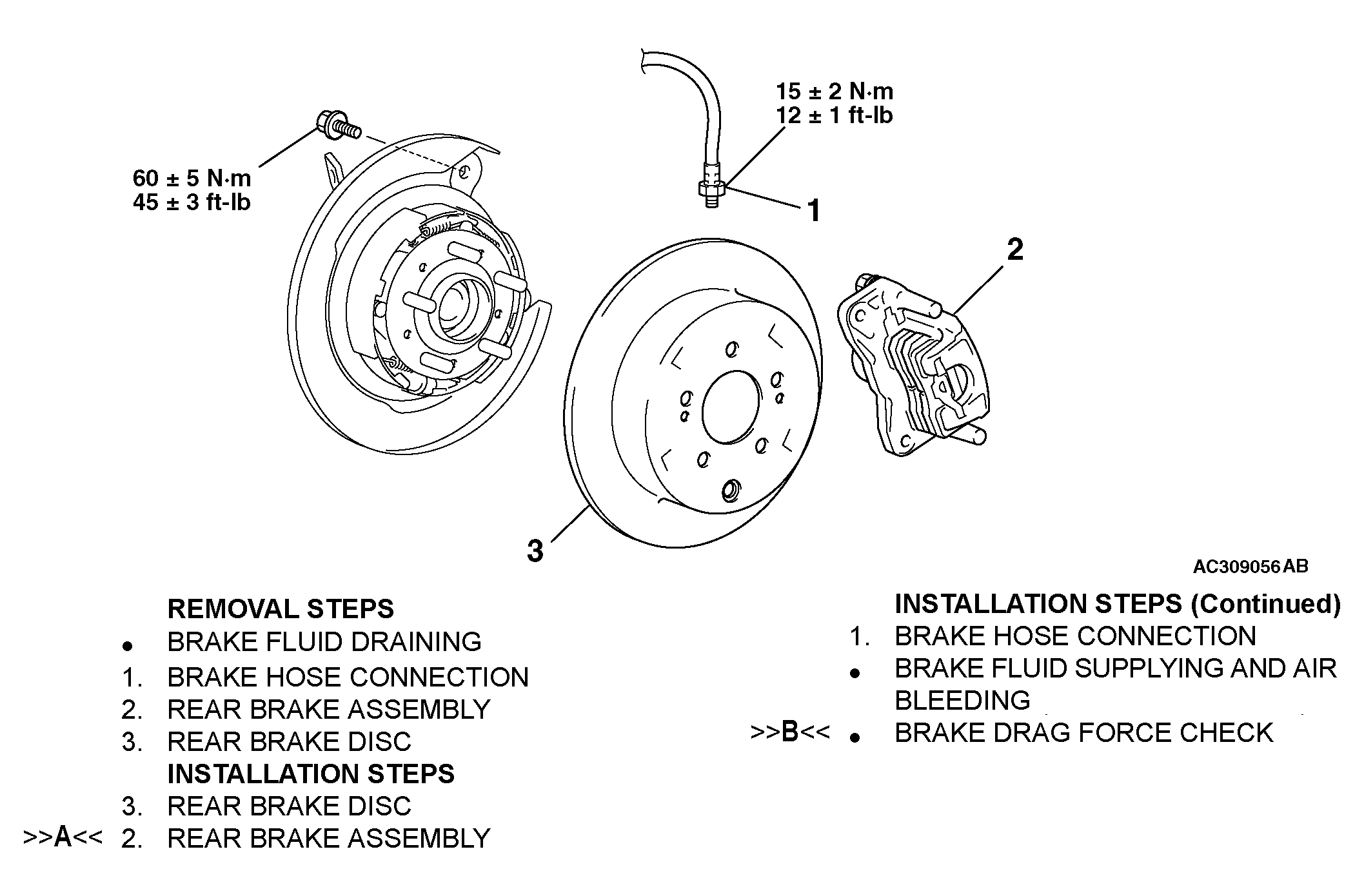

Fig 1: Removing/Installing Rear Disc Brake Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
