DTC 15 : Auto-cruise Control Switch System: Notes

WARNING: This page is about a different variant/trim than selected.

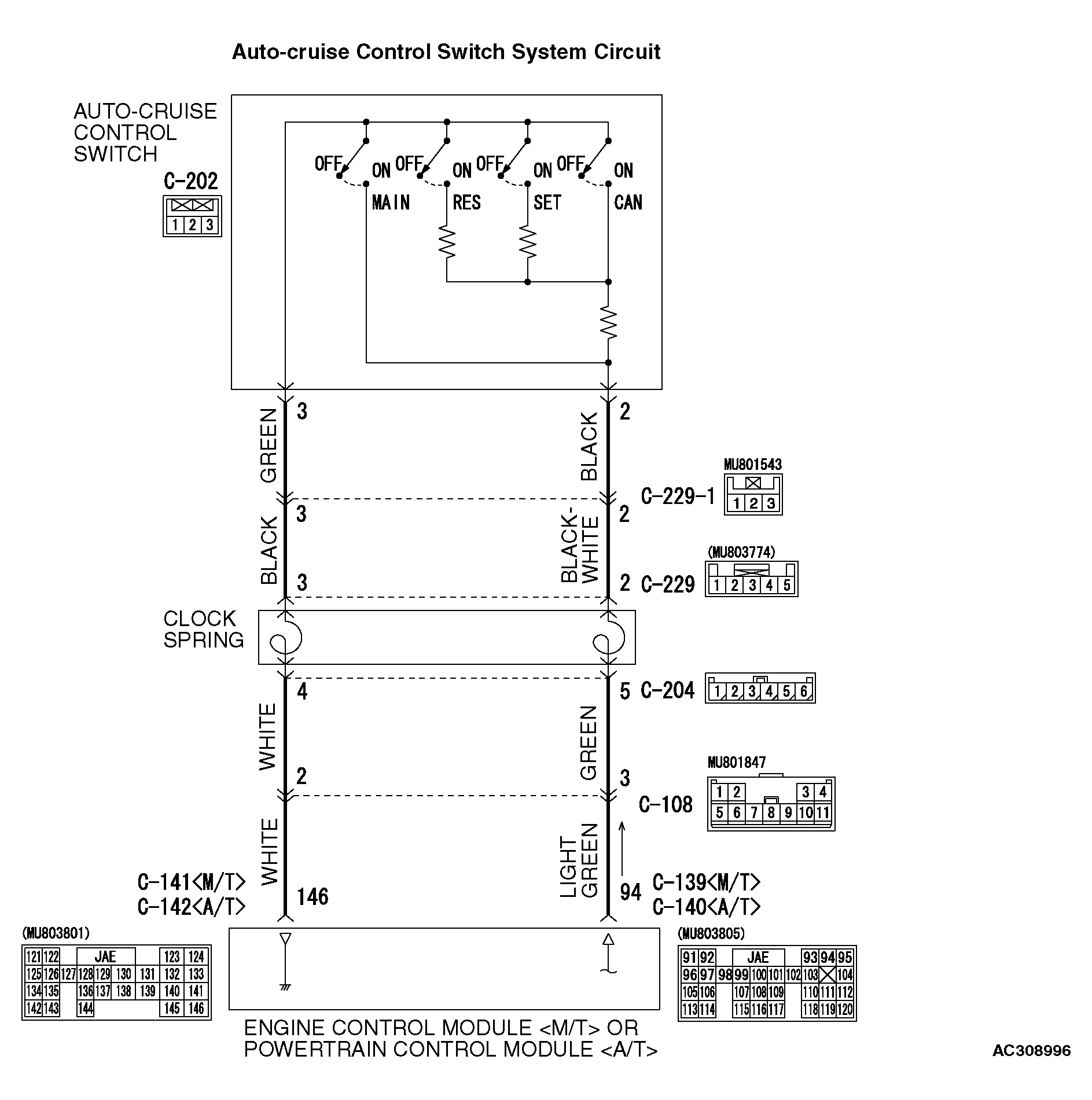

Fig 1: Auto-Cruise Control Switch System Circuit - Diagram (1 Of 2)
G04273604Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
