Removal And Installation: Notes

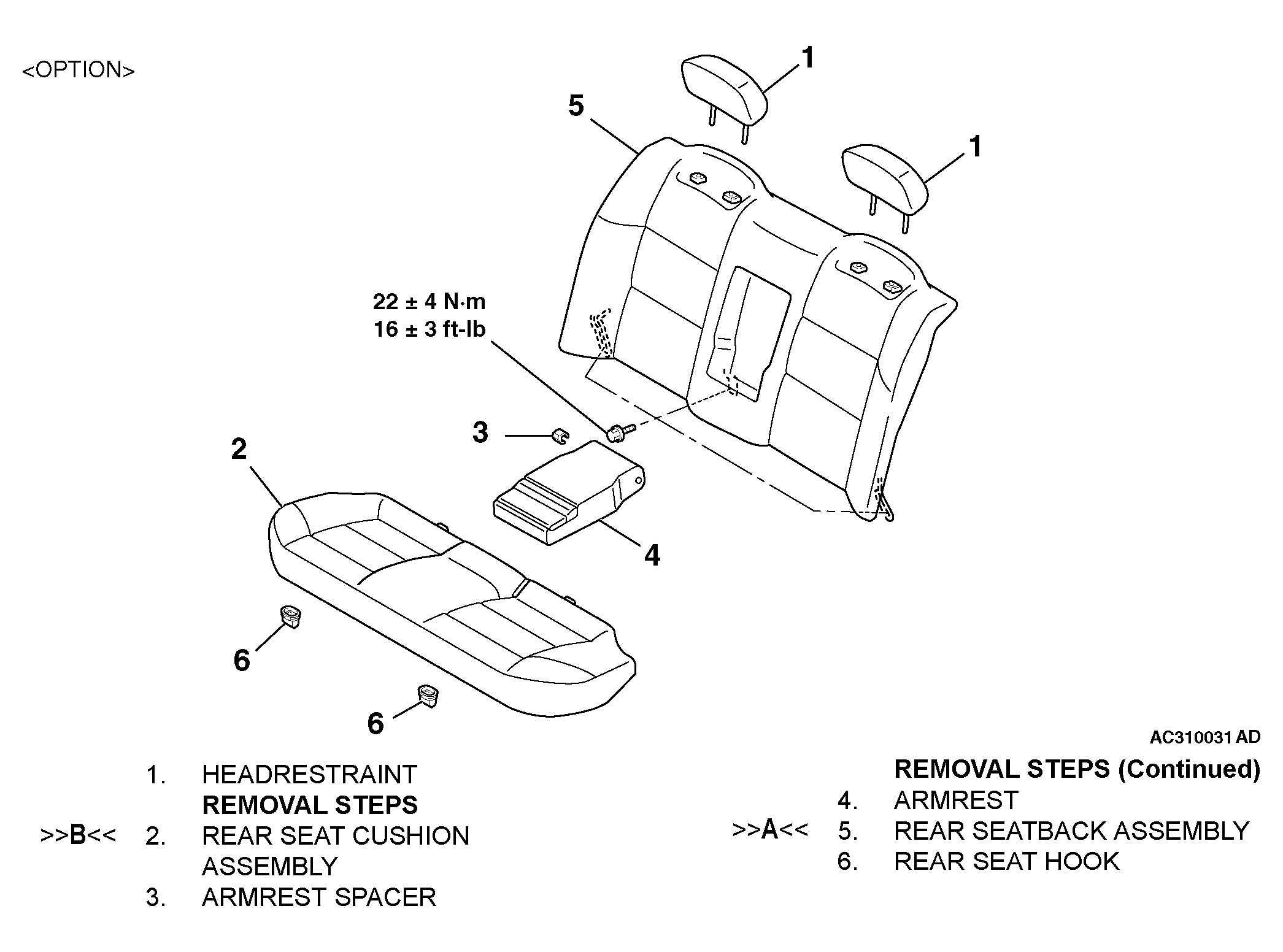

Fig 1: Removing/Installing Rear Seat Assembly (1 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

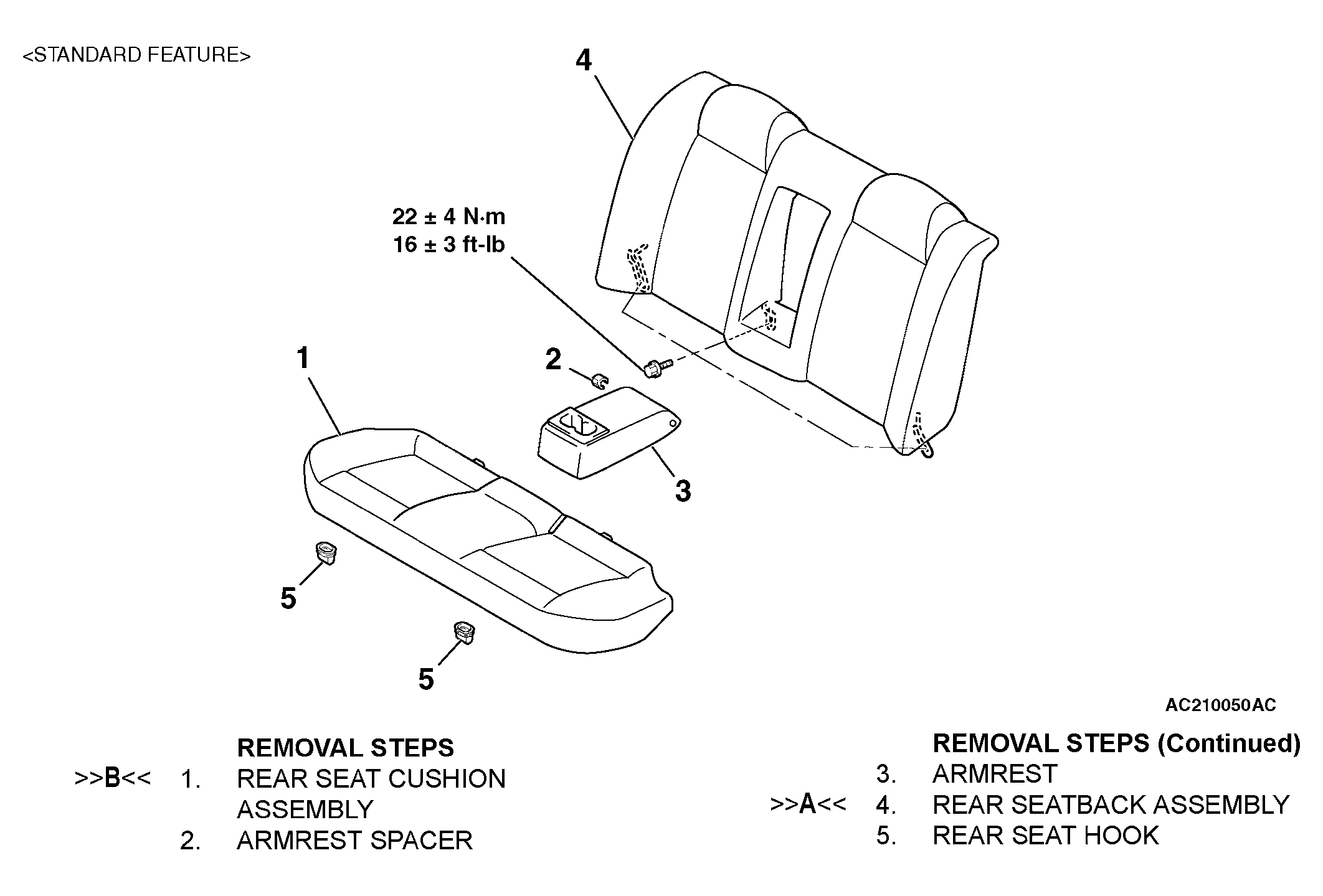

Fig 2: Removing/Installing Rear Seat Assembly (2 Of 2)

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
