Construction Diagram

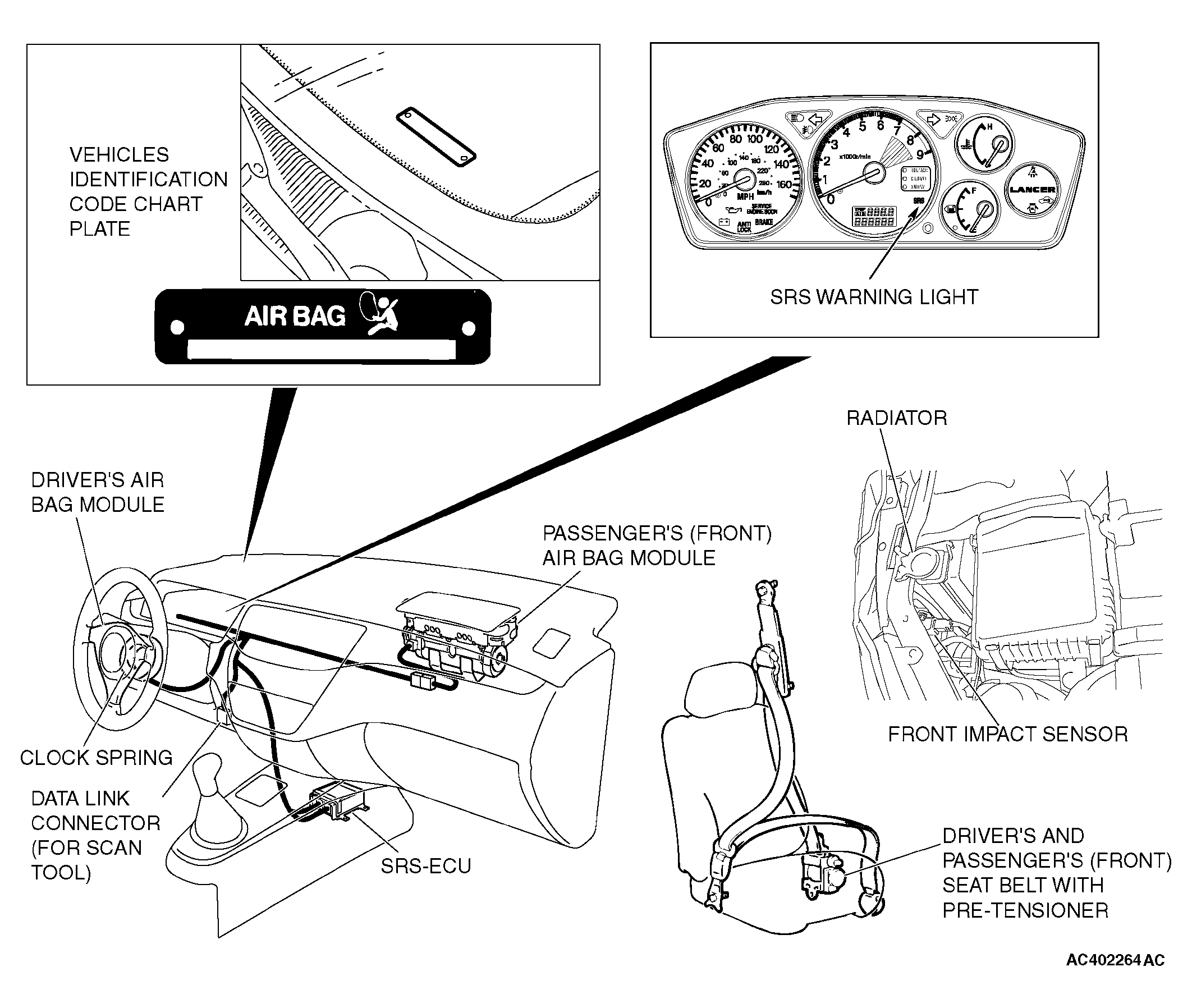

Fig 1: Supplemental Restraint System (SRS) Construction Diagram

Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.

NOTE: This construction diagram shows the general view of the SRS components. For details, refer to "SCHEMATIC ", "CONFIGURATION DIAGRAMS " and "CIRCUIT DIAGRAM " .
