Front Bumper Assembly
›
Disassembly And Assembly
›
Notes
Disassembly And Assembly: Notes

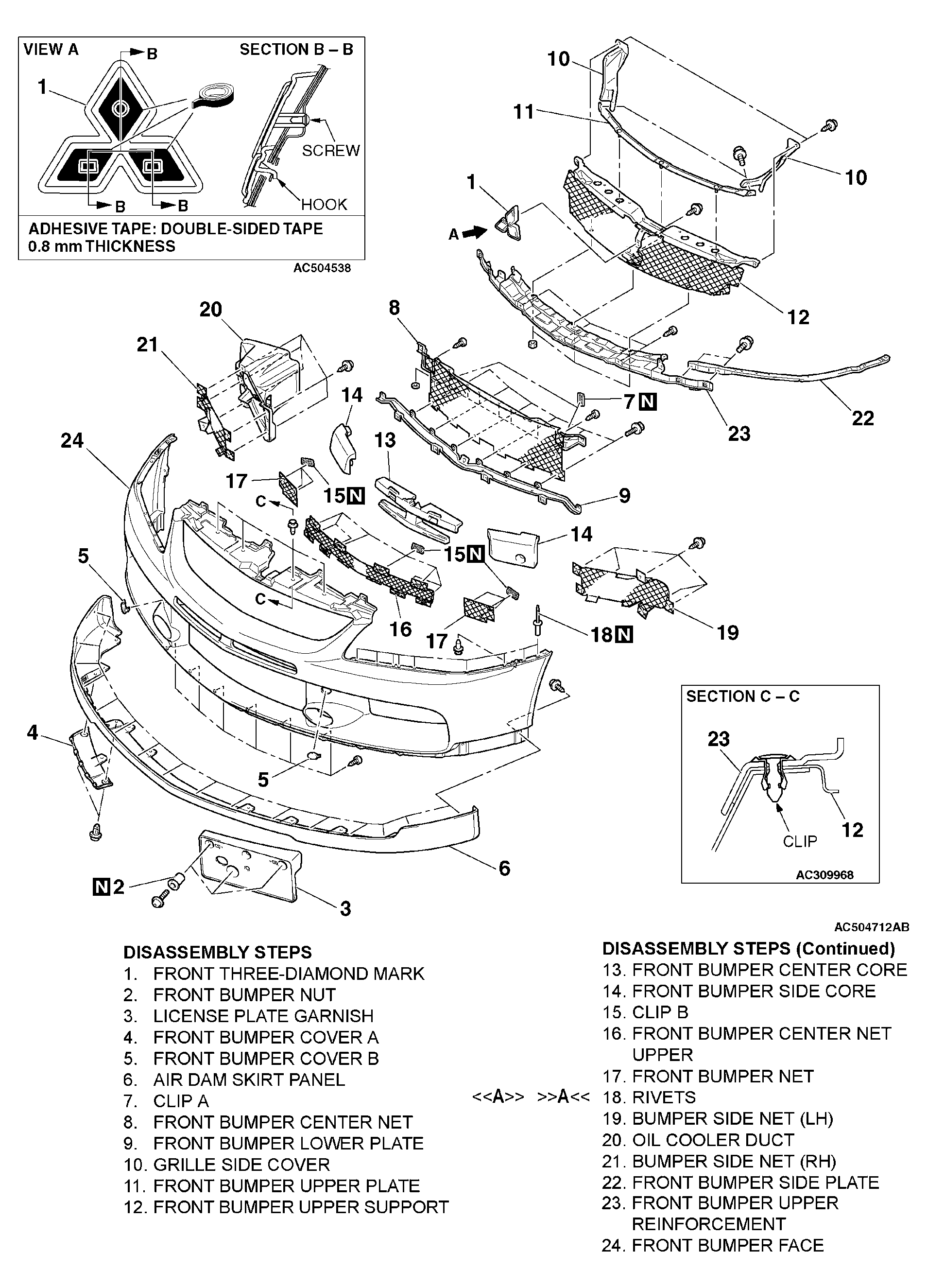

Fig 1: Exploded View Of Front Bumper Assembly
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
