DTC 71: Lateral G-Sensor System
›
Notes
DTC 71: Lateral G-Sensor System: Notes

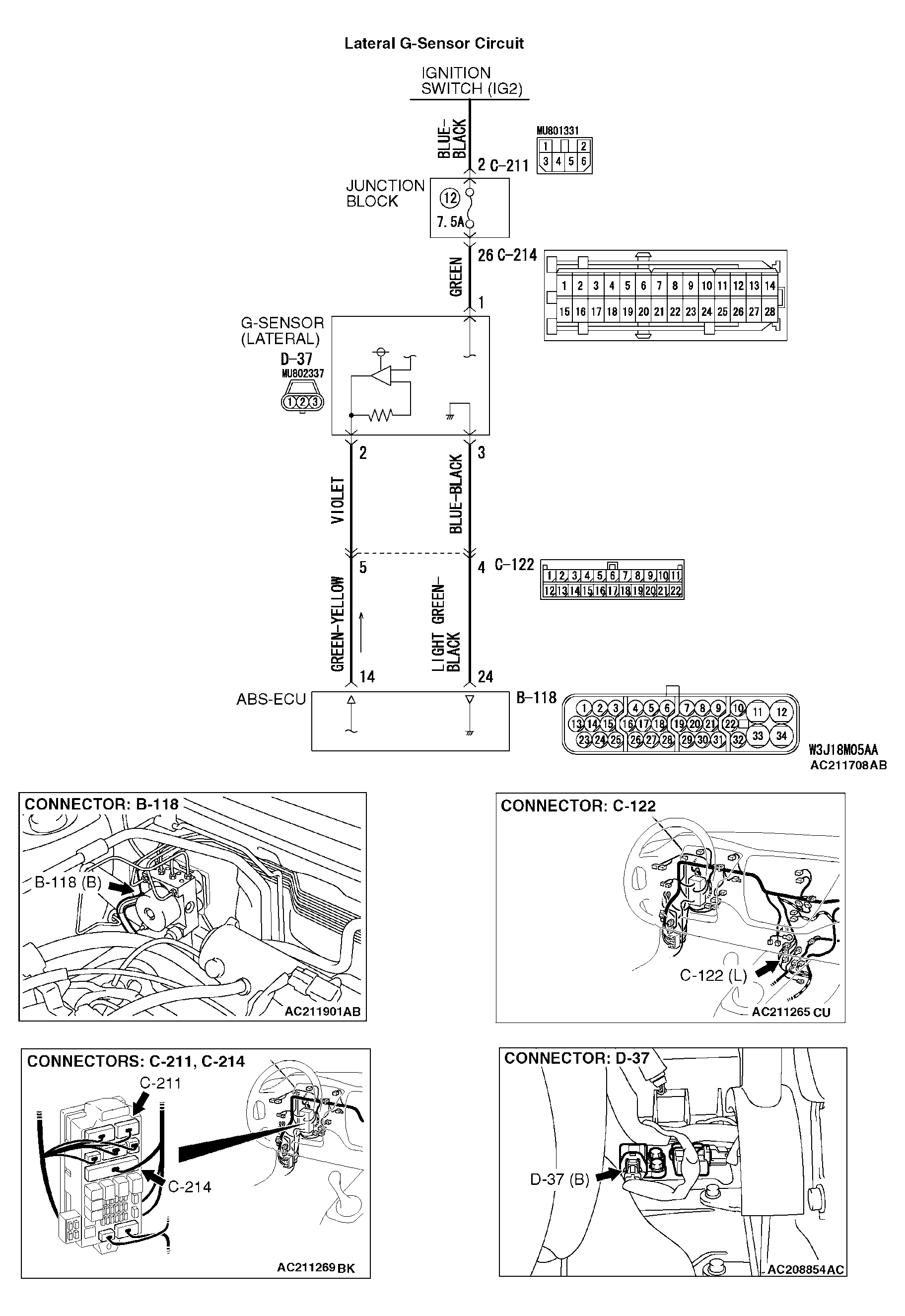

Fig 1: Lateral G-Sensor Circuit Diagram
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
