Disassembly And Assembly: Notes

CAUTION:
  • Be careful not to damage the ABS rotor, which is attached to the EBJ outer race during disassembly and reassembly.
  • Never disassemble the EBJ assembly except when replacing the EBJ boot.

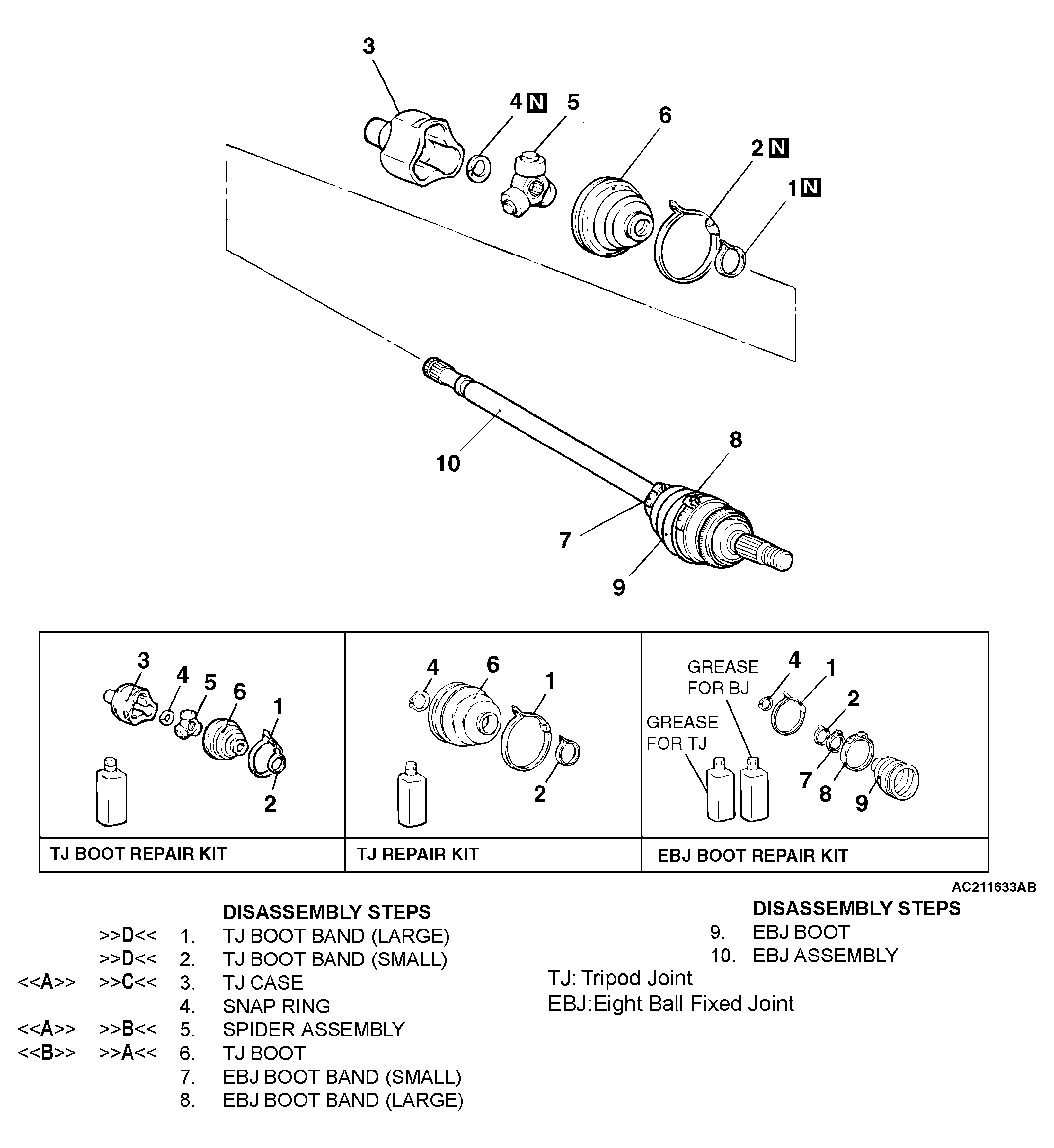

    Fig 1: Disassembling/Assembling Of Front Axle Driveshaft
    G04297028Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
