Connector End Views (Evolution)
›
Connector End Views
›
Intermediate Connector (C-129) Connector End View
Intermediate Connector (C-129) Connector End View

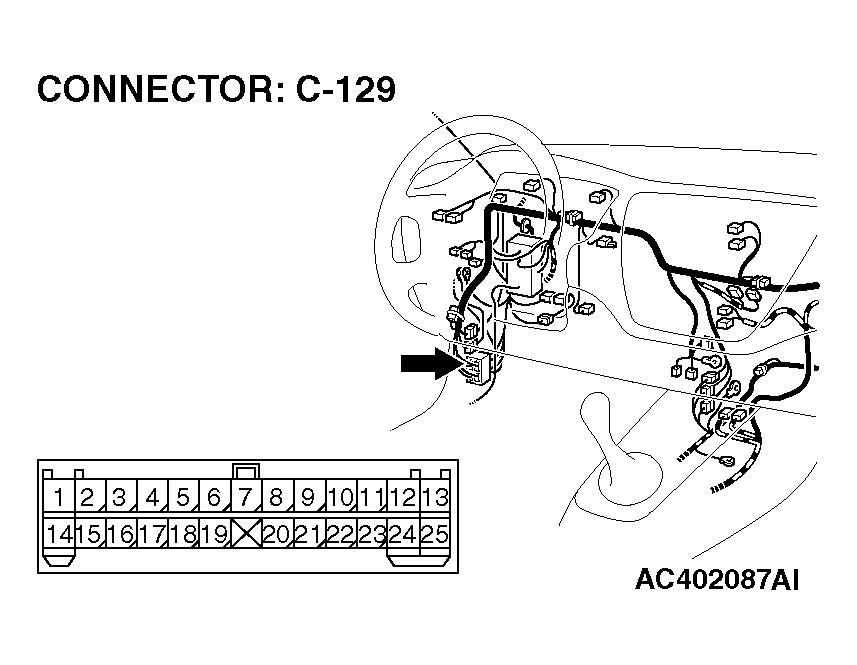

Fig 1: Intermediate Connector (C-129) Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
