Connector End Views (Evolution)
›
Connector End Views
›
Junction Block Connector (C-214) Connector End View
Junction Block Connector (C-214) Connector End View

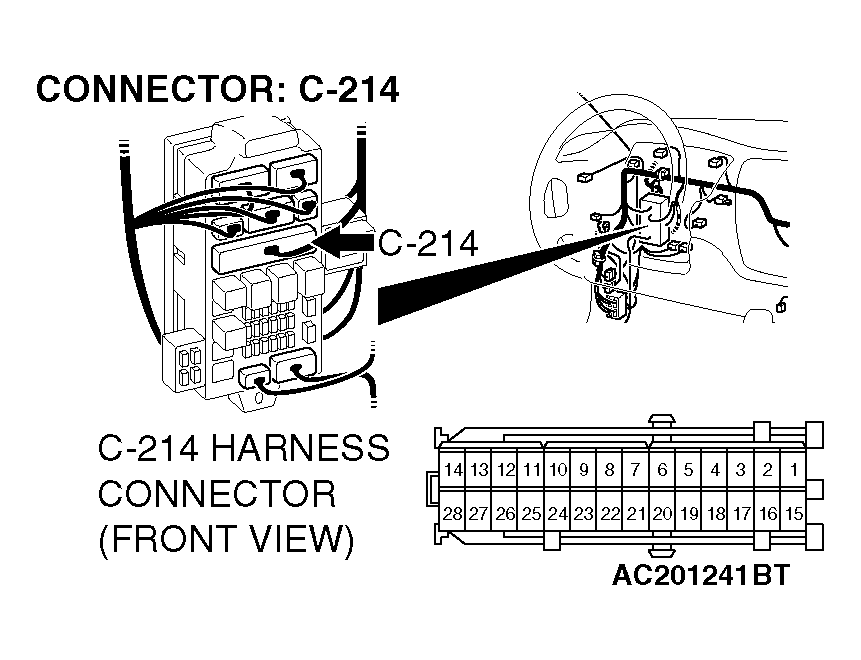

Fig 1: Junction Block Connector (C-214) Connector End View
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
Courtesy of MITSUBISHI MOTOR SALES OF AMERICA.
